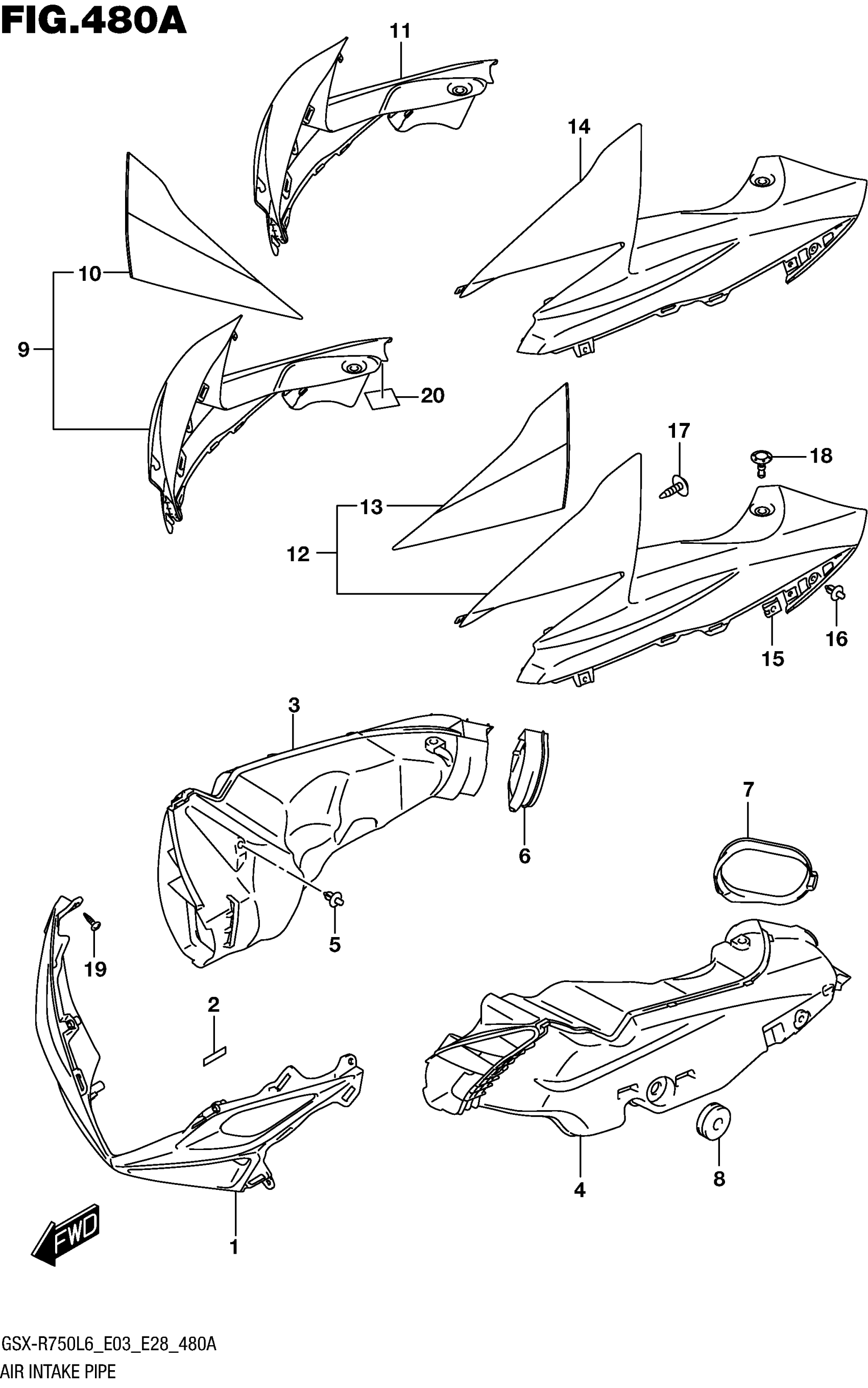

Suzuki GSX-R750L6 (2016) AIR INTAKE PIPE (YSF,KGL) Diagram

#

Description
Price

1-1

COVER, INTAKE FRONT (BLACK) | FOR YSF

94671-14J10-YKV

$251.25

1-2

COVER,INTAKE (BLACK) | FOR KGL

94671-14J10-YVB

$170.72

2

TAPE

94443-06G00

$3.11

3

PIPE,AIR INTAKE,R

94420-14J10

$82.30

4

PIPE,AIR INTAKE,L

94430-14J10

$79.61

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.73

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.73

8

CUSHION

09320-08028

$2.82

9

COVER,INTAKE,R( | FOR YSF This part replaces 94670-14J00-YSF.

94670-14J01-YSF

$182.33

10

.TAPE, INTAKE COVER RH | FOR YSF

68275-14J00-A3F

$42.30

10

(WHITE/BLUE)

68275-14J00-A3F

$42.30

11

COVER,INTAKE,R (BLACK) | FOR KGL This part replaces 94672-14J00-YKV.

94672-14J01-YKV

$145.53

12

COVER,INTAKE,L( | FOR YSF This part replaces 94680-14J00-YSF.

94680-14J01-YSF

$182.33

13

.TAPE, INTAKE COVER LH | FOR YSF

68276-14J00-A3F

$42.30

13

(WHITE/BLUE)

68276-14J00-A3F

$42.30

14

COVER,INTAKE,L (BLACK) | FOR KGL This part replaces 94682-14J00-YKV.

94682-14J01-YKV

$148.30

15

NUT

09148-05052

$3.13

16

CLIP (BLACK)

09409-06314-5PK

$2.80

17

SCREW (5X12)

09132-05050

$1.89

18

CLIP, REAR

94479-35F00

$5.38

19

SCREW

03541-0512A

$1.41

20

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.91

21

COLOR :

SPECIAL NOTE

Unavailable

21

KGL=YKV(BLACK),YVB(BLACK)

SPECIAL NOTE

Unavailable
