2015 Suzuki GSX-R750L5 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2015 Suzuki GSX-R750L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

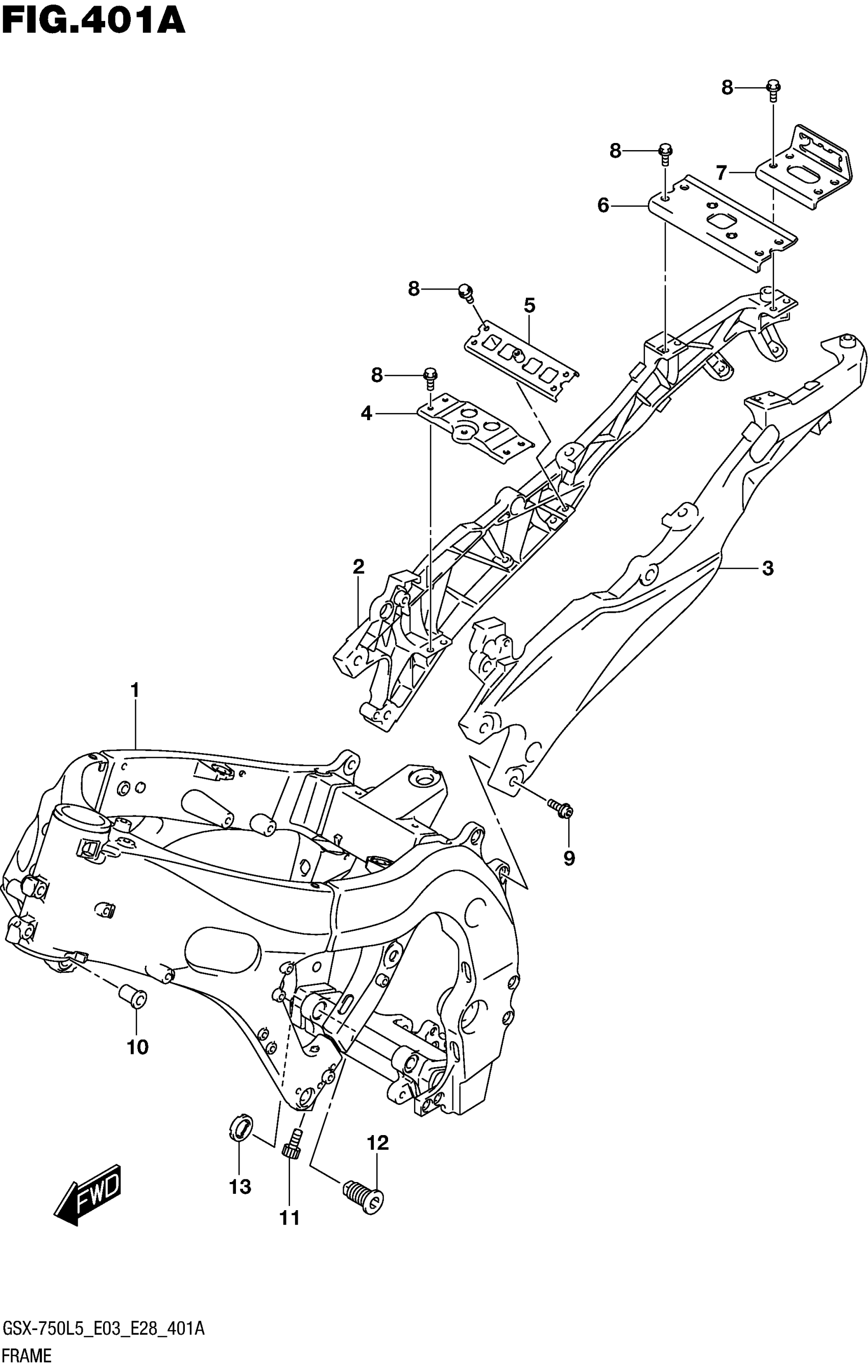

2015 Suzuki GSX-R750L5 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-15J00-YAP

1
Out of stock

2

RAIL,SEAT,R (BLACK)

41211-14J00-YUG

1
Out of stock

3

RAIL,SEAT,L (BLACK)

41221-14J00-YUG

1
Out of stock

4

BRIDGE,SEAT RAIL FR

41770-01H00

1
Out of stock

5

BRIDGE,SEAT RAIL LWR

42740-37H00

1
Out of stock

6

BRIDGE,SEAT RAIL UPR

42730-14J00

1
Out of stock

7

BRIDGE,SEAT RAIL RR

42751-14J00

1
Out of stock

8

BOLT (6X12)

09103-06285

16
Out of stock

9

BOLT,SEAT RAIL

41233-18G20

4
Out of stock

10

SPACER, ENGINE MOUNT

41911-40F01

1
Out of stock

11

BOLT (8X32)

09106-08185

1
Out of stock

12

BOLT, ADJUST

41921-35F00

2
Out of stock

13

NUT, ADJUST

41922-18G00

2
Out of stock
