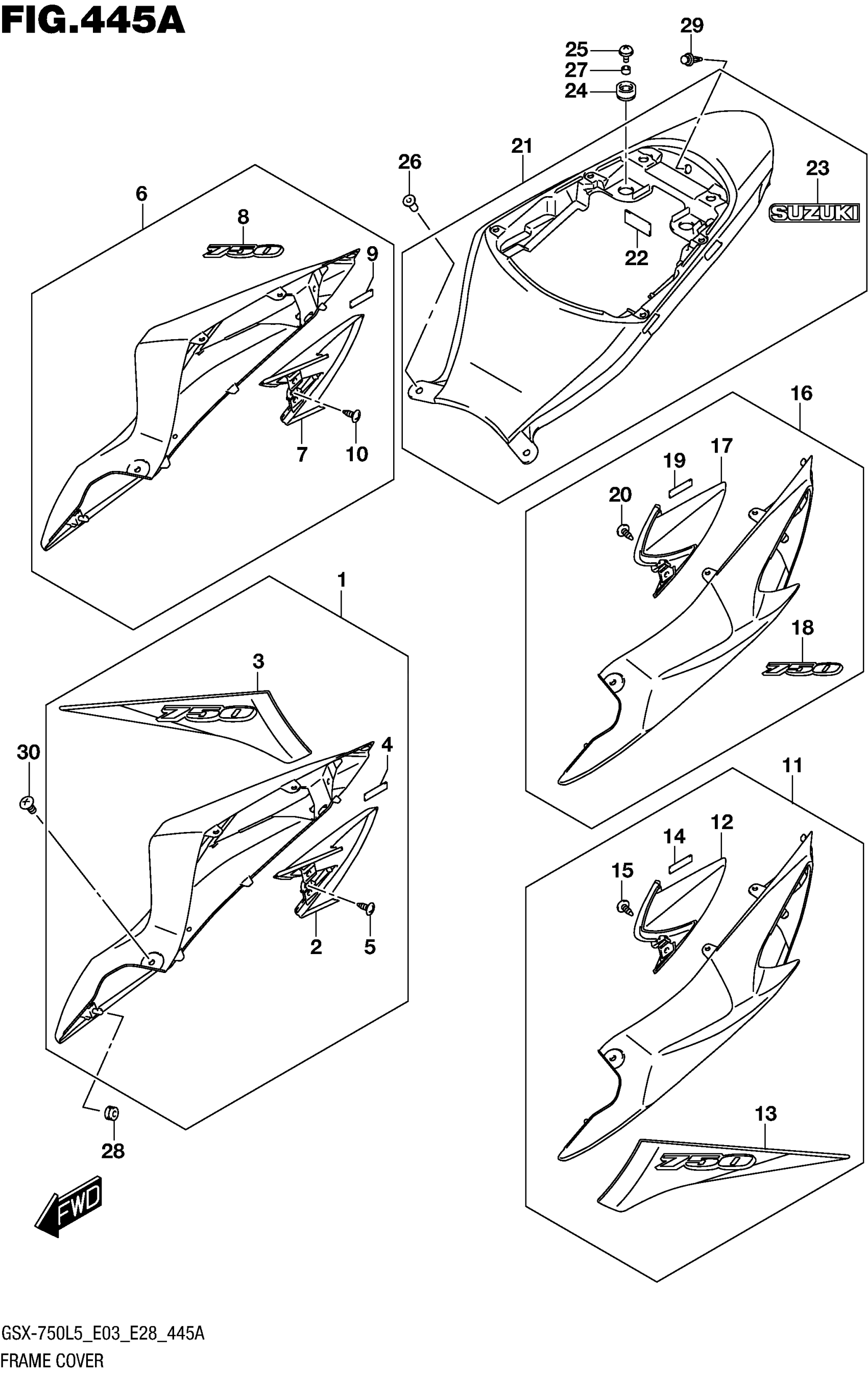

Suzuki GSX-R750L5 (2015) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE) | FOR YSF

47100-15J20-YSF

$171.37

2

COVER,FRAME RR,R

47611-14J00

$17.12

3

TAPE, FRAME COVER RH (WHITE/BLUE) | FOR YSF

68135-15J10-A3G

$44.75

4

TAPE (6X25X0.13)

94443-06G00

$2.97

5

SCREW

03541-0512A

$1.37

6

COVER, FRAME RH (WHITE) | FOR ASV

47100-15J10-AWX

$146.52

6

COVER, FRAME RH (WHITE/BLUE) | FOR A19

47100-15J10-AQX

$146.52

7

COVER,FRAME RR,R

47611-14J00

$17.12

8

EMBLEM, "750" (RED/BLACK) | FOR RB5

68131-15J00-ABV

$15.77

8

EMBLEM, "750" (GRAY) | FOR AQX

68131-15J00-A3L

$15.77

9

TAPE (6X25X0.13)

94443-06G00

$2.97

10

SCREW

03541-0512A

$1.37

11

COVER, FRAME LH (BLUE) | FOR YSF

47200-15J20-YSF

$171.37

12

COVER,FRAME RR,L

47621-14J00

$17.20

13

TAPE, FRAME COVER LH (WHITE/BLUE) | FOR YSF

68145-15J10-A3G

$43.92

14

TAPE (6X25X0.13)

94443-06G00

$2.97

15

SCREW

03541-0512A

$1.37

16

COVER, FRAME LH (WHITE) | FOR ASV

47200-15J10-AWX

$146.52

16

COVER, FRAME LH (WHITE/BLUE) | FOR A19

47200-15J10-AQX

$146.52

17

COVER,FRAME RR,L

47621-14J00

$17.20

18

EMBLEM, "750" (RED/BLACK) | FOR RB5

68131-15J00-ABV

$15.77

18

EMBLEM, "750" (GRAY) | FOR AQX

68131-15J00-A3L

$15.77

19

TAPE (6X25X0.13)

94443-06G00

$2.97

20

SCREW

03541-0512A

$1.37

21

COVER ASSY,FRAME CTR This part replaces 47300-14J00.

47300-14J10

$88.23

22

CUSHION

48128-14FA0

$7.30

23

TAPE

94443-06G00

$2.97

24

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

25

SCREW (6X16)

09136-06056

$2.17

26

NUT

09159-05019

$6.44

27

SPACER (6.5X10X7)

09180-06283

$1.89

28

CUSHION

09320-06504

$4.47

29

CLIP (BLACK)

09409-06314-5PK

$2.80

30

SCREW

02142-1520B

$2.34
