Description

Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

FUSE (30A)

09481-30101

$2.26

3

COVER, STARTER

31861-47E00

$16.15

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

BRACKET, RECTIFIER

32830-14J00

$17.12

7

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

8

CUSHION (8.4X18X6)

09320-08066

$8.24

9

BOLT (6X20)

09116-06182

$2.30

10

BOLT

01550-0616A

$1.97

11

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

12

NUT

08316-1006A

$2.19

13

COIL ASSY,IGNITION

33410-38H00

$174.35

14

CONTROL UNIT,FI This part replaces 32920-15J80.

32920-15J81

$1,456.22

15

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88

16

ACTUATOR ASSY This part replaces 33970-47H01.

33970-47H03

$422.63

17

BOLT (6X32.5)

09116-06148

$3.16

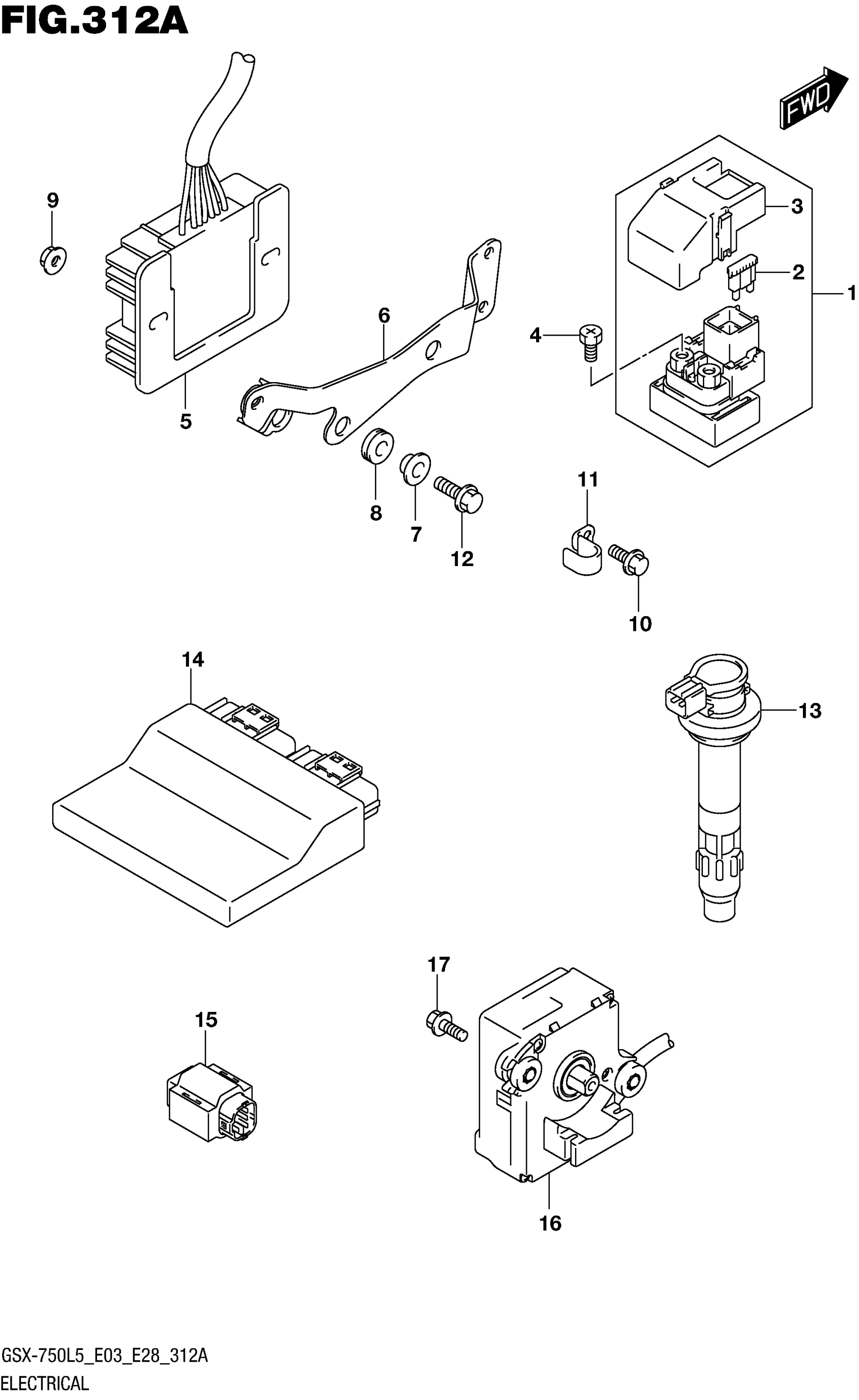

Suzuki GSX-R750L5 (2015) ELECTRICAL (GSX-R750L5 E03) Diagram
