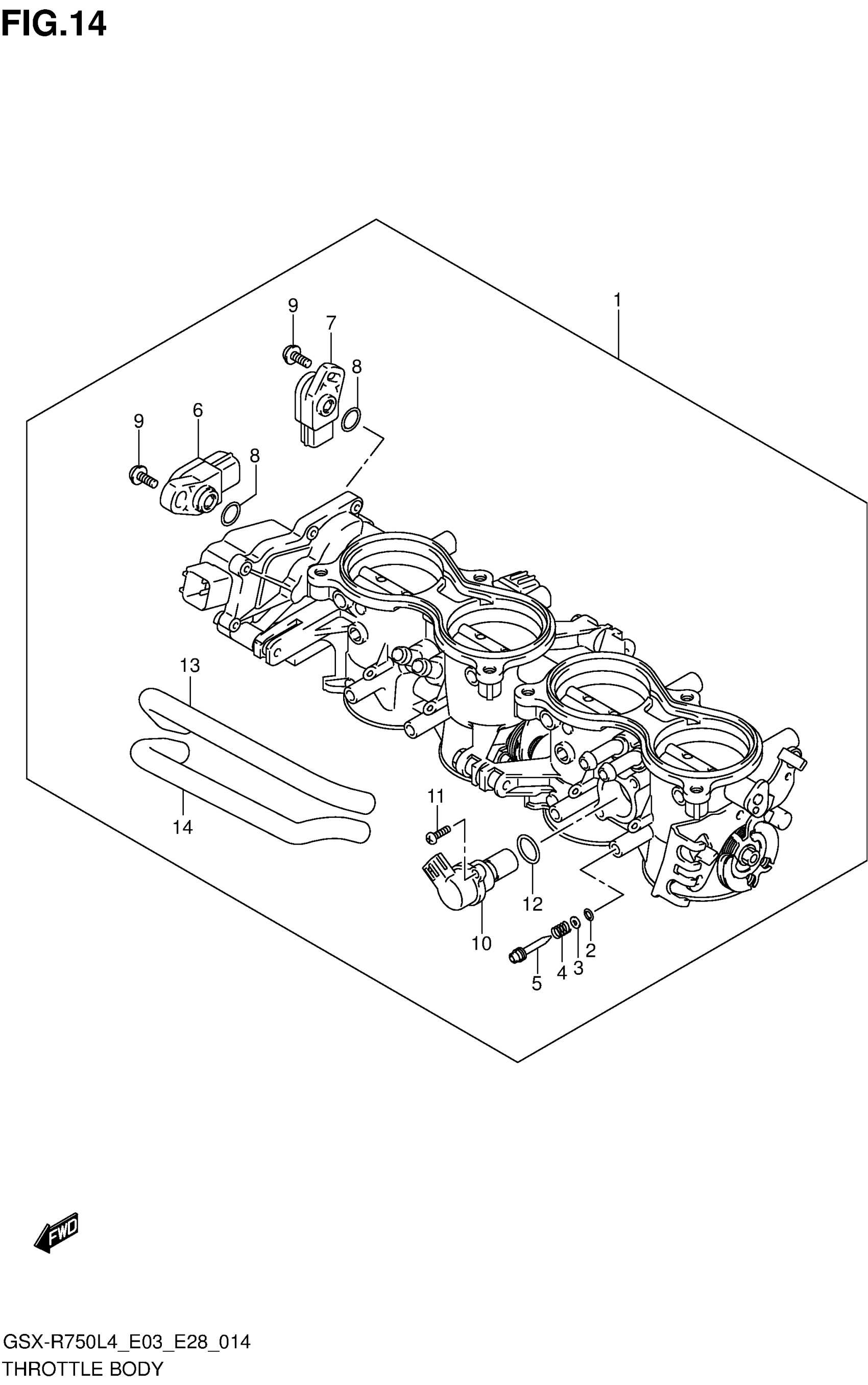

Suzuki GSX-R750L4 (2014) THROTTLE BODY (GSX-R750L4 E33) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13406-15J30

$2,543.18

2

O-RING This part replaces 13295-29900.

13295-29901

$4.34

3

WASHER

13606-47A00

$3.28

4

SPRING,THROTTLE SCREW

13268-48700

$4.34

5

SCREW

13269-33E00

$11.10

6

SENSOR ASSY

13580-14J00

$151.08

7

SENSOR ASSY

13580-14J10

$170.23

8

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

9

SCREW

13605-02F00

$3.71

10

MOTOR ASSY

18117-14J01

$392.00

11

SCREW

13605-37H00

Unavailable

12

O RING

13679-37H00

$7.27

13

.HOSE This part replaces 13698-14J00.

13698-14J01

$42.70

14

.HOSE This part replaces 13698-14J10.

13698-14J11

$39.53
