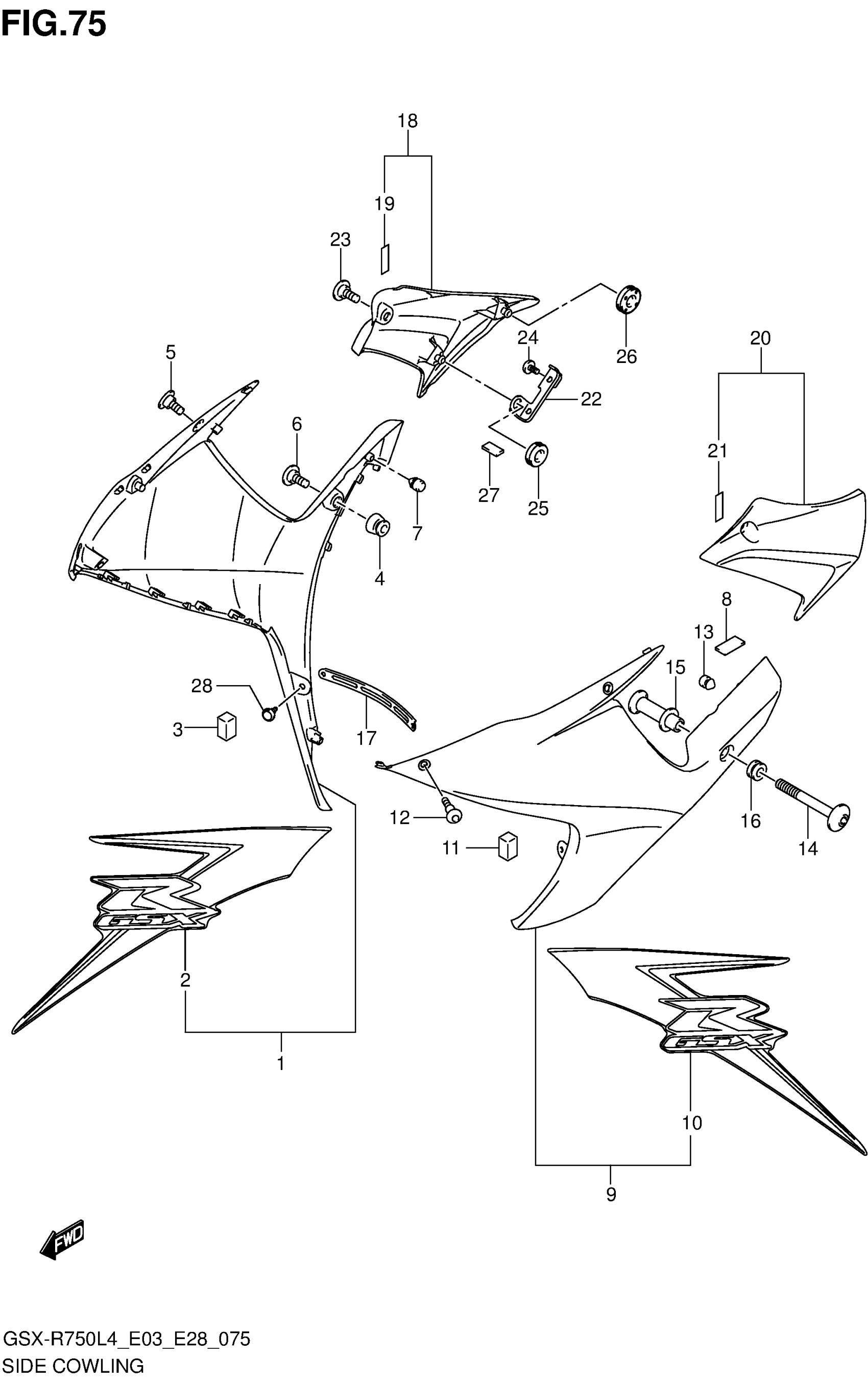

Suzuki GSX-R750L4 (2014) SIDE COWLING (JSP,AR6) Diagram

#

Description
Price

1

COWLING, SIDE RH (BLACK) | FOR JSP

94450-15J30-YVB

$670.87

1

COWLING, SIDE RH (BLACK) | FOR AR6

94450-15J30-YKV

Unavailable

2

TAPE, SIDE COWLING RH | FOR YVB

68685-15J30-AV2

$78.63

2

TAPE, SIDE COWLING RH | FOR YKV

68685-15J30-ASD

$69.57

3

CUSHION,SIDE COWL FR

94477-14J01

$11.82

4

CUSHION, SIDE COWLING RH

94479-15H00

$4.22

5

SCREW (5X13)

09139-05064

$2.56

6

BOLT (6X20)

09139-06190

$3.77

7

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

8

PROTECTOR, SIDE COWLING LH | CUT AS REQUIRED

44543-10G00

$5.23

9

COWLING, SIDE LH (BLACK) | FOR JSP

94460-15J30-YVB

$646.26

9

COWLING, SIDE LH (BLACK) | FOR AR6

94460-15J30-YKV

Unavailable

10

TAPE, SIDE COWLING LH | FOR YVB

68695-15J30-AV2

Unavailable

10

TAPE, SIDE COWLING LH | FOR YKV

68695-15J30-ASD

Unavailable

11

CUSHION,SIDE COWL FR

94477-14J01

$11.82

12

SCREW (5X13)

09139-05064

$2.56

13

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

14

SCREW,SIDE COWL,L

94488-14J00

$3.38

15

SPACER,SIDE COWL,L

94489-14J00

$10.26

16

CUSHION | LH

09320-09016

$1.97

17

PLATE,UNDER COWL CTR

94498-14J00

$16.06

18

COVER,SIDE COWLING,R

94570-14J00

$17.28

19

TAPE (6X25X0.13)

94443-06G00

$2.97

20

COVER,SIDE COWLING,L

94580-14J00

$17.28

21

TAPE (6X25X0.13)

94443-06G00

$2.97

22

BRACKET,COVER SIDE,R

94491-14J00

$11.28

23

SCREW (5X13)

09139-05064

$2.56

24

SCREW (6X12)

09139-06062

$3.30

25

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

26

CUSHION

09320-08028

$2.80

27

CUSHION, BRACKET COVER RH

94612-31F00

$5.62

28

CLIP, UNDER CTR

94479-35F00

$5.14
