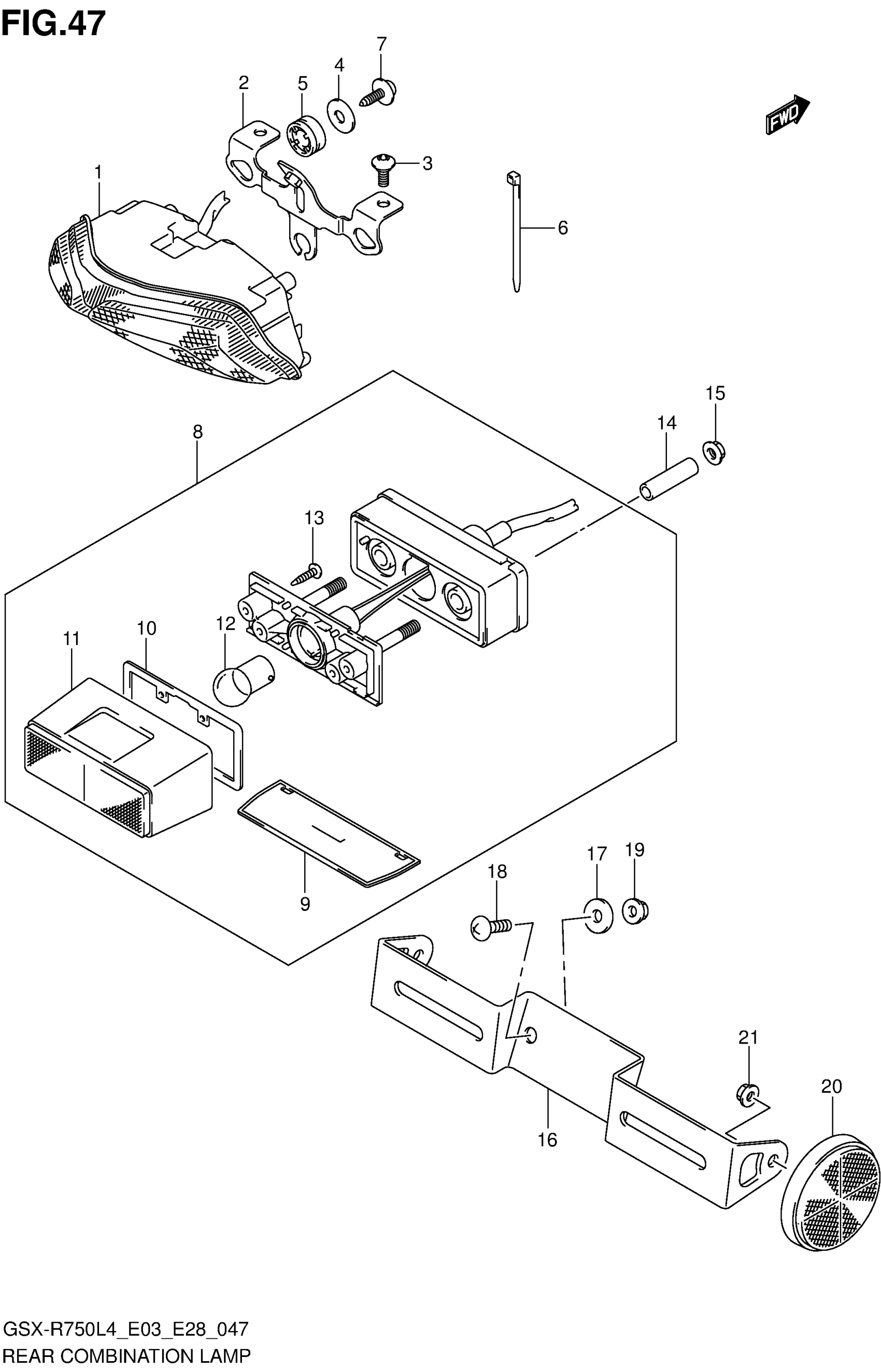

Suzuki GSX-R750L4 (2014) REAR COMBINATION LAMP (GSX-R750L4 E03) Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-14JA0.

35710-14JC0

$125.93

2

BRACKET, REAR COMBINATION LAMP

35726-14J00

$17.75

3

BOLT (5X13)

09139-05074

$2.61

4

WASHER (5.5X20X1.2)

09160-05501

$1.84

5

CUSHION

09320-10049

$2.35

6

CLAMP (L:100)

09407-10404

$2.90

7

SCREW

03541-0516A

$1.49

8

LAMP ASSY,LICENSE This part replaces 35910-41G31.

35910-41G32

$88.47

9

LENS

35912-41G01

$13.28

10

GASKET

35913-41G00

$14.23

11

COVER

35917-41G00

$35.32

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

13

SCREW

03211-0416A

$1.49

14

SPACER (6.5X9X34)

09180-06356

$4.68

15

NUT

09159-06096

$3.15

16

BRACKET,LICENSE PLATE

35927-14J30

$15.70

17

WASHER (6.5X20X1.2)

09160-06077

$1.91

18

SCREW

02142-0616A

$1.49

19

NUT

08316-1006A

$2.19

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

21

NUT

08316-1005A

$2.19
