Description

Price

1

TANK ASSY, FUEL (BLUE) | FOR AGQ

44100-14J52-YSF

$1,499.68

1

TANK ASSY, FUEL (BLACK) | FOR JSP

44100-14J52-YVB

$1,499.68

1

TANK ASSY, FUEL (WHITE) | FOR AR6

44100-14J52-RB5

Unavailable

2

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

3

BOLT (5X20)

09106-05017

$2.83

4

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

5

SCREW, FUEL TANK REAR BRKT

44543-14J00

$7.05

6

FASTENER, COVER

44572-13G00

$11.07

7

CUSHION

09320-08071

$3.25

8

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

9

CUSHION,FUEL TANK RR

44542-41G00

$7.69

10

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$40.55

11

RUBBER,FUEL TANK FR

44546-44H00

$13.35

12

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

13

SPACER, TANK FRONT

44512-16G00

$7.44

14

SCREW (6X25)

09139-06192

$3.23

15

WASHER This part replaces 09160-06012.

09160-06054

$1.62

16

BOLT (6X110)

09106-06119

$5.76

17

SPACER, TANK REAR

44561-18G00

$16.96

18

HOSE,FUEL TANK WATER DRAIN This part replaces 44423-14J00.

44423-14J01

$20.78

19

STAY, FUEL TANK

44574-35F00

$15.16

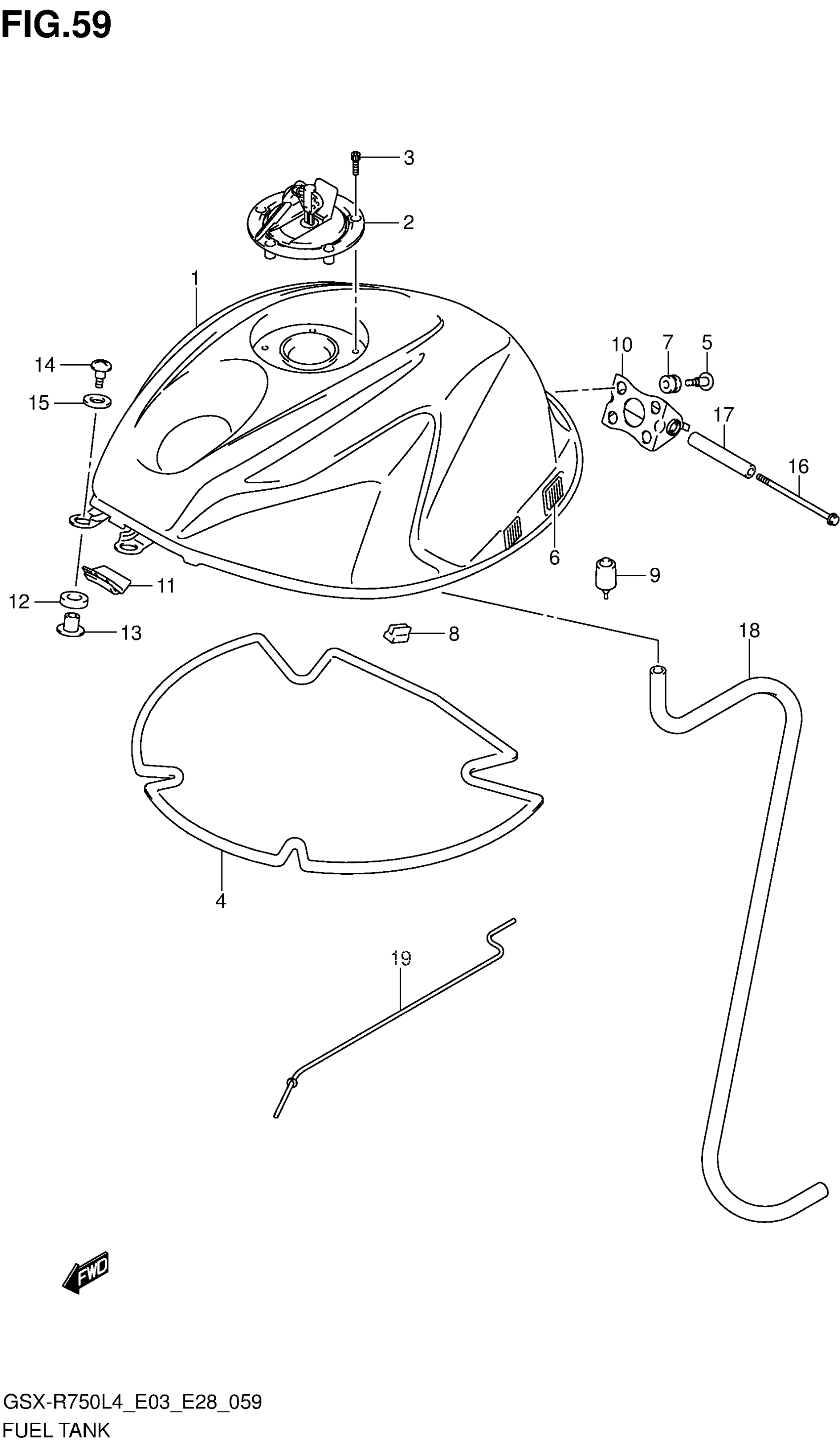

Suzuki GSX-R750L4 (2014) FUEL TANK (GSX-R750L4 E33) Diagram
