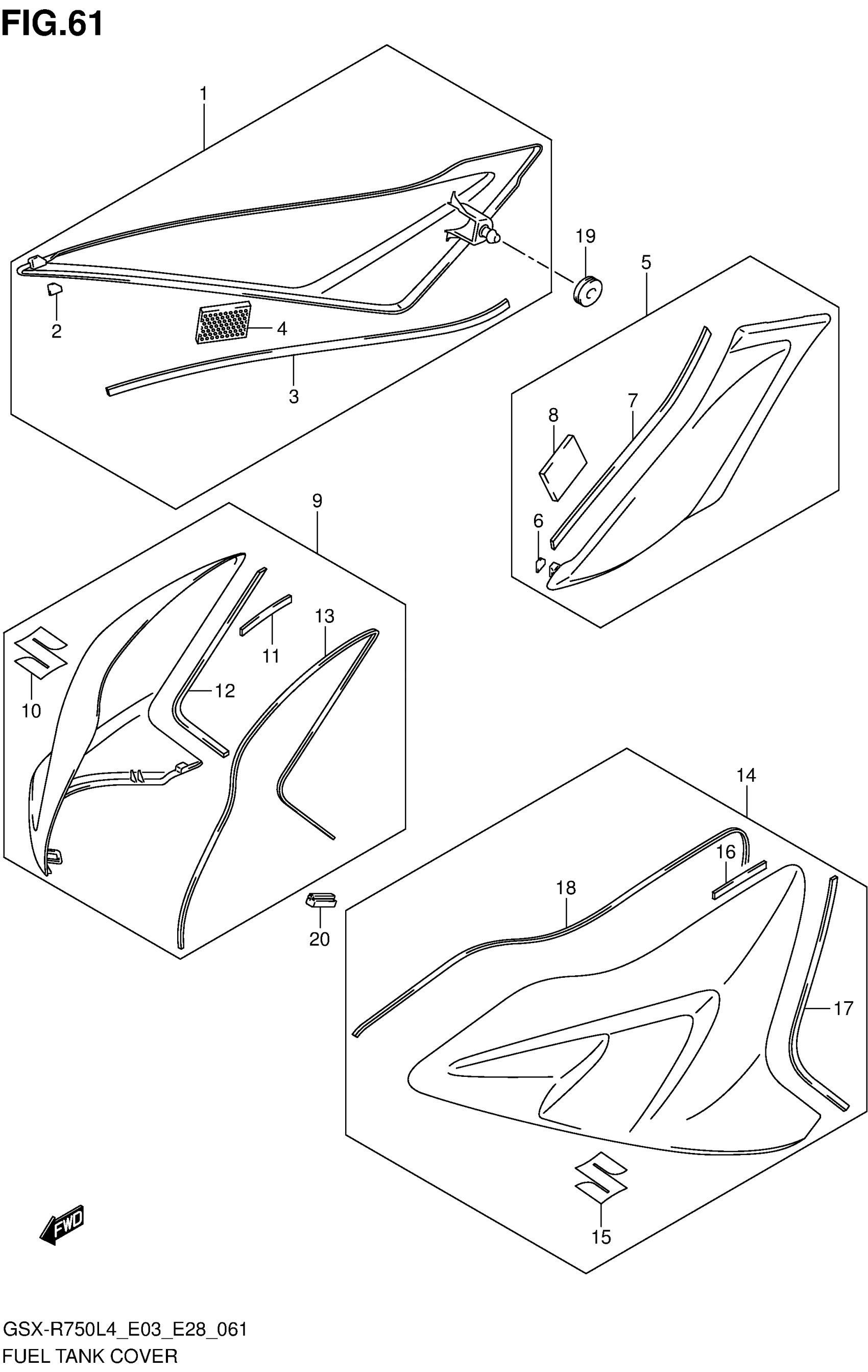

Suzuki GSX-R750L4 (2014) FUEL TANK COVER Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE,R

44170-14J00

$40.84

2

CUSHION, FUEL TANK COVER

44172-14J00

$9.23

3

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$5.45

4

FASTENER, COVER

44572-02F01

$11.07

5

COVER,FUEL TANK SIDE,L

44180-14J00

$40.84

6

CUSHION, FUEL TANK COVER

44172-14J00

$9.23

7

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$5.45

8

FASTENER, COVER

44572-02F01

$11.07

9

COVER, TANK FRONT RH (BLUE) | FOR AGQ

44270-14J20-YSF

Unavailable

9

COVER, TANK FRONT RH (BLACK) | FOR JSP

44270-14J20-YVB

$179.00

9

COVER, TANK FRONT RH (WHITE) | FOR AR6

44270-14J20-RB5

$159.32

10

EMBLEM, "S"

68111-47HA0

$40.44

11

CUSHION,FUEL TANK COVER NO.1

44273-14J00

$17.37

12

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$21.42

13

CUSHION,FUEL TANK COVER FR

44277-14J00

$5.36

14

COVER, TANK FRONT LH (BLUE) | FOR AGQ

44280-14J20-YSF

$185.82

14

COVER, TANK FRONT LH (BLACK) | FOR JSP

44280-14J20-YVB

$179.00

14

COVER, TANK FRONT LH (WHITE) | FOR AR6

44280-14J20-RB5

$159.32

15

EMBLEM, "S"

68111-47HA0

$40.44

16

CUSHION,FUEL TANK COVER NO.1

44273-14J00

$17.37

17

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$18.22

18

CUSHION,FUEL TANK COVER FR

44277-14J00

$5.36

19

CUSHION, SIDE

44173-14J00

$4.16

20

CUSHION,FUEL TANK COVER FR This part replaces 44177-14J01.

44177-14J02

$2.92
