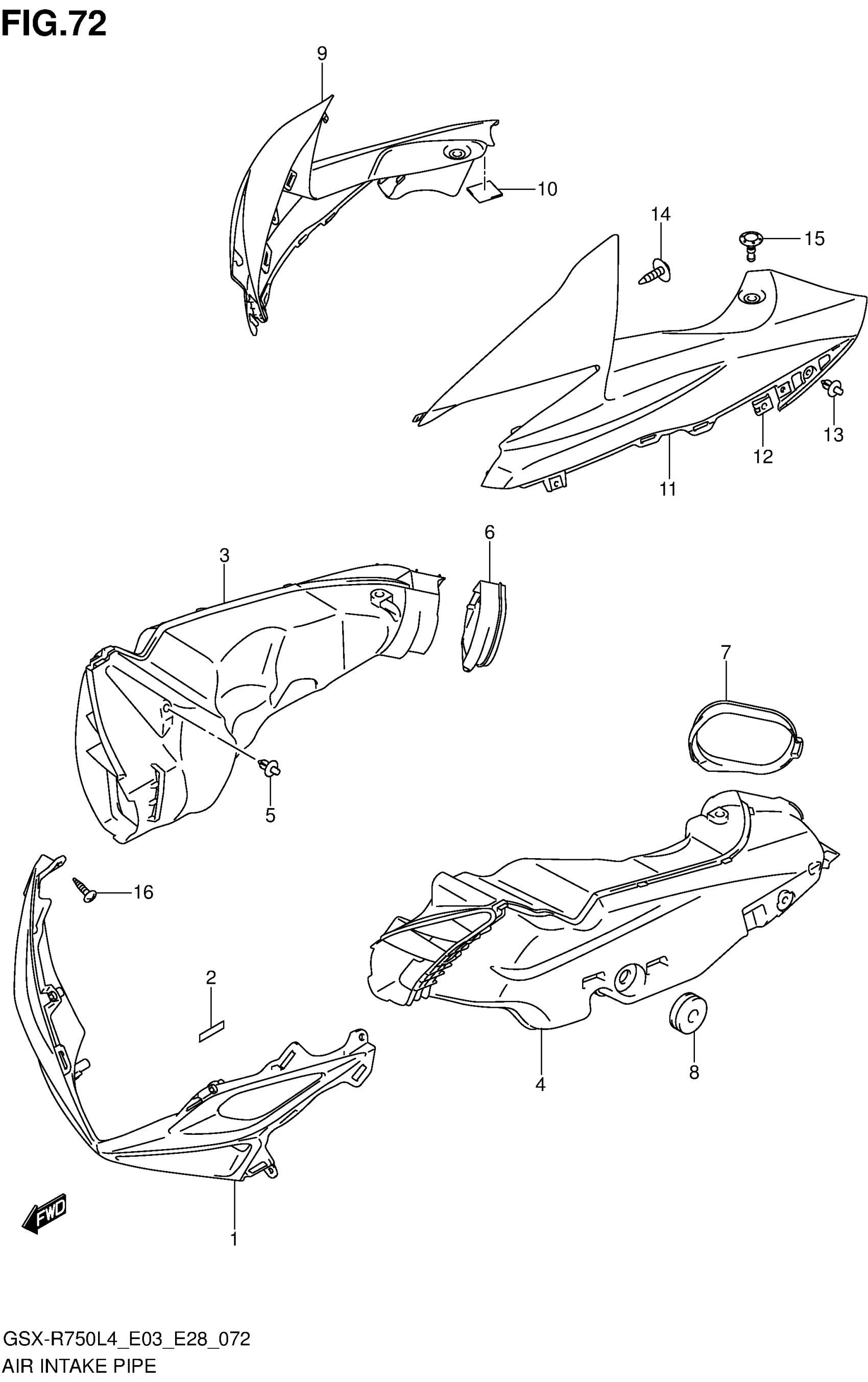

Suzuki GSX-R750L4 (2014) AIR INTAKE PIPE Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLUE) | FOR AGQ

94671-14J10-YUA

$249.57

1

COVER, INTAKE FRONT (BLACK) | FOR JSP

94671-14J10-YKV

$251.25

1

COVER,INTAKE (BLACK) | FOR AR6

94671-14J10-YVB

$170.72

2

TAPE

94443-06G00

$3.11

3

PIPE,AIR INTAKE,R

94420-14J10

$82.30

4

PIPE,AIR INTAKE,L

94430-14J10

$79.61

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.73

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.73

8

CUSHION

09320-08028

$2.82

9

COVER,INTAKE,R | FOR AGQ This part replaces 94672-14J00-YWW.

94672-14J01-YWW

$142.77

9

COVER,INTAKE,R | FOR JSP This part replaces 94672-14J00-YVB.

94672-14J01-YVB

$105.79

9

COVER,INTAKE,R | FOR AR6 This part replaces 94672-14J00-RB5.

94672-14J01-RB5

$223.57

10

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.92

11

COVER,INTAKE,L | FOR AGQ This part replaces 94682-14J00-YWW.

94682-14J01-YWW

$144.83

11

COVER,INTAKE,L | FOR JSP This part replaces 94682-14J00-YVB.

94682-14J01-YVB

$143.45

11

COVER,INTAKE,L | FOR AR6 This part replaces 94682-14J00-RB5.

94682-14J01-RB5

$214.90

12

NUT

09148-05052

$3.13

13

CLIP (BLACK)

09409-06314-5PK

$2.80

14

SCREW (5X12)

09132-05050

$1.89

15

CLIP, REAR

94479-35F00

$5.38

16

SCREW

03541-0512A

$1.41
