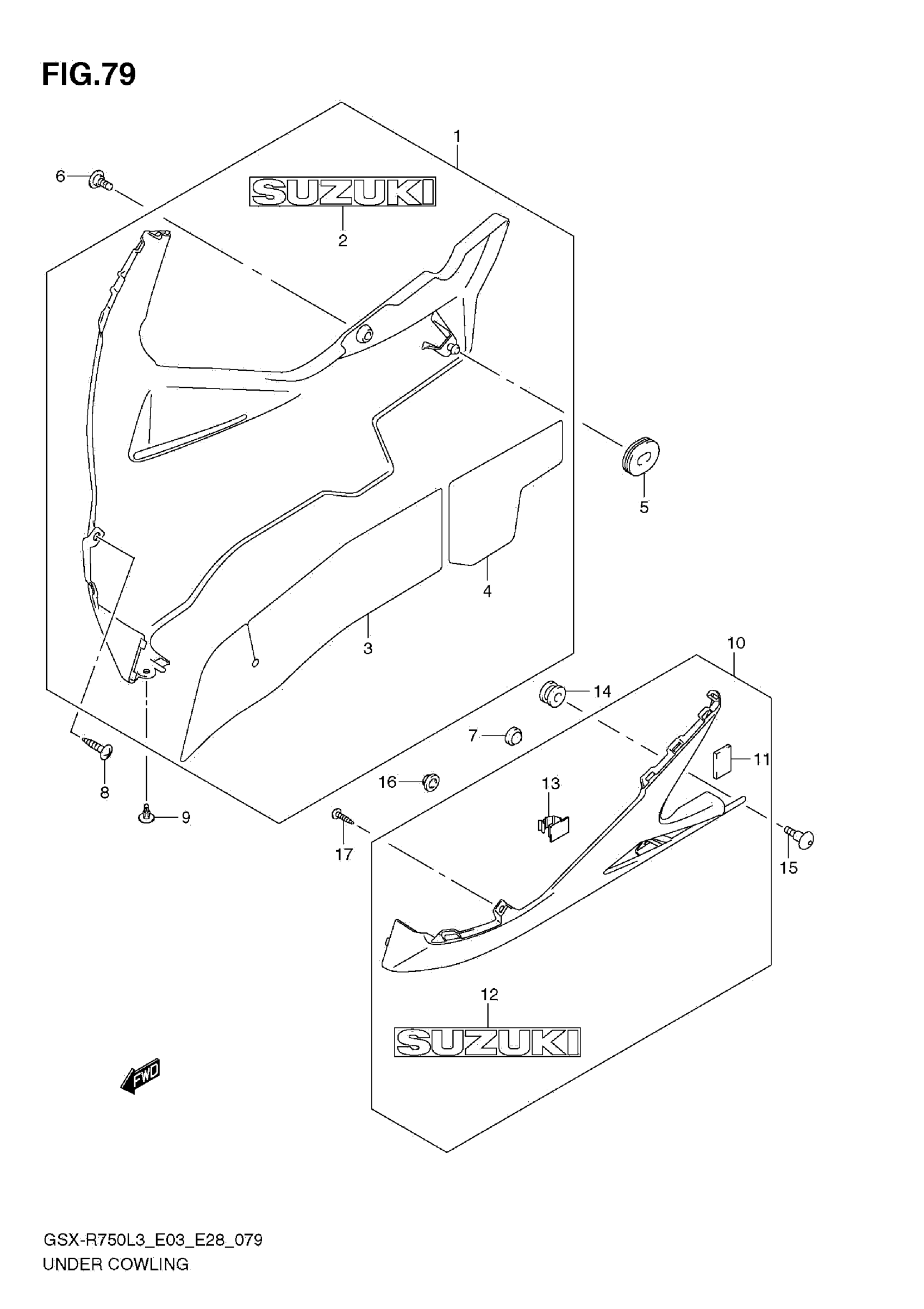

Suzuki GSX-R750L3 (2013) UNDER COWLING Diagram

#

Description
Price

1

COWLING, UNDER RH (GRAY) | FOR AA3

94470-14J00-YLF

$659.59

1

COWLING, UNDER RH (WHITE) | FOR AGQ

94470-14J00-YWW

$699.36

2

EMBLEM (BLACK)

68181-33C20-019

$26.75

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$16.50

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$15.23

5

CUSHION | RH

94478-14J00

$5.92

6

SCREW,UNDER COWL,R (5X13) | RH

94476-14J00

$4.49

7

CUSHION

09321-10018

$5.45

8

SCREW

03541-0512A

$1.49

9

CLIP

94479-35F00

$5.62

10

COWLING,UNDER L | FOR AA3 This part replaces 94480-14J00-YLF.

94480-14J01-YLF

$310.87

10

COWLING,UNDER,L | FOR AGQ This part replaces 94480-14J00-YWW.

94480-14J01-YWW

$278.63

11

.CUSHION,BRACKET NO.1 This part replaces 47161-10FA0.

47161-10FA1

$4.82

12

EMBLEM (BLACK)

68181-33C20-019

$26.75

13

CLAMP

09403-14311

$5.33

14

CUSHION | LH

09320-09016

$1.97

15

BOLT (6X20) | LH

09139-06190

$4.17

16

CUSHION

09321-10018

$5.45

17

SCREW

03541-0512A

$1.49
