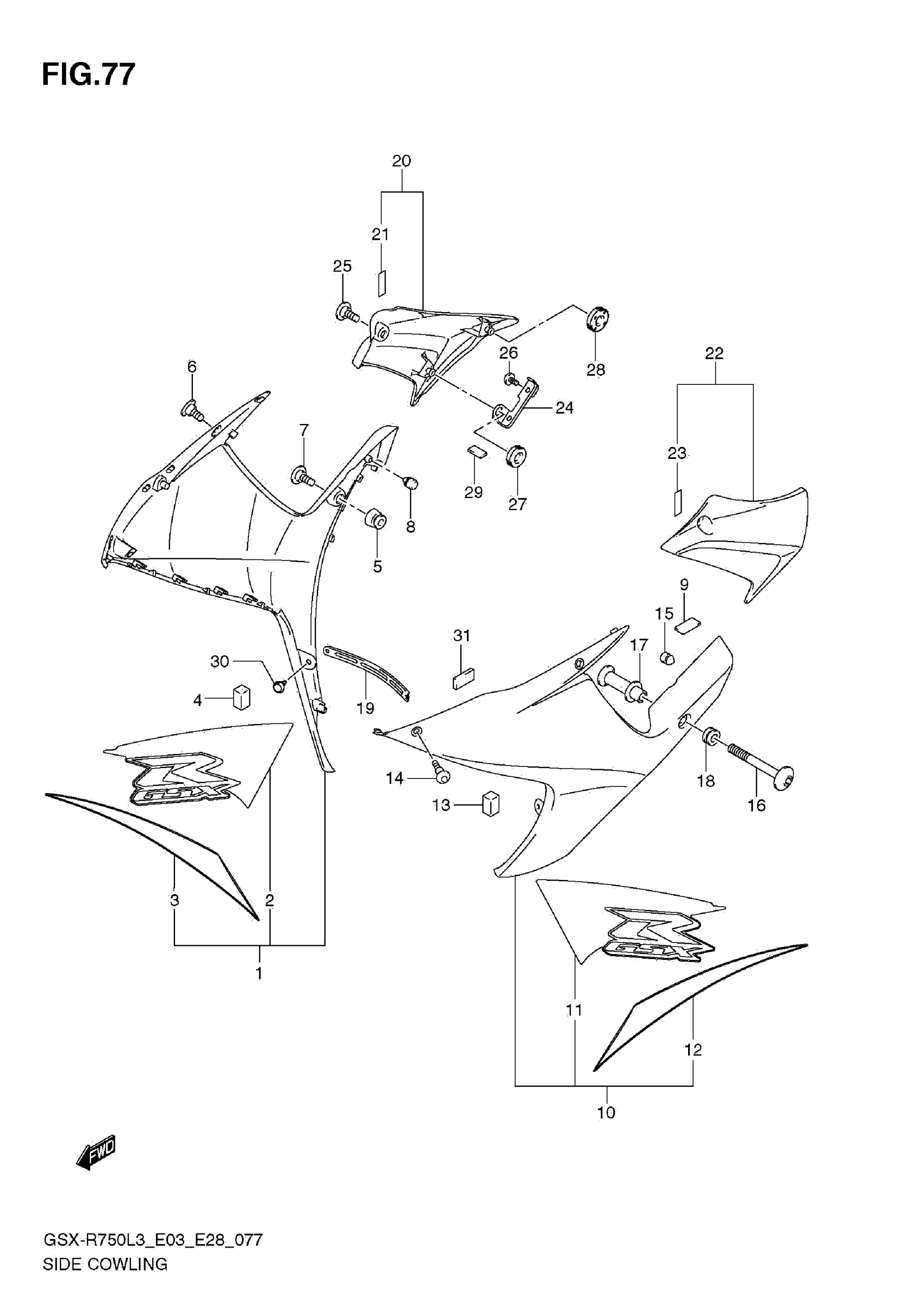

Suzuki GSX-R750L3 (2013) SIDE COWLING (AA3) Diagram

#

Description
Price

1

COWLING, SIDE RH (BLACK)

94450-15J20-YVB

$627.42

2

TAPE, SIDE COWLING UPPER RH (BLACK/GRAY)

68685-15J10-AG8

$73.13

3

TAPE, SIDE COWLING LOWER RH (BLACK/GRAY)

68685-15J20-AG7

$61.77

4

CUSHION,SIDE COWL FR

94477-14J01

$12.91

5

CUSHION, SIDE COWLING RH

94479-15H00

$4.48

6

SCREW (5X13)

09139-05064

$2.57

7

BOLT (6X20)

09139-06190

$4.17

8

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

9

PROTECTOR, SIDE COWLING LH

44543-10G00

$5.56

10

COWLING, SIDE LH (BLACK)

94460-15J20-YVB

$627.42

11

TAPE, SIDE COWLING UPPER LH (BLACK/GRAY)

68695-15J10-AG8

Unavailable

12

TAPE, SIDE COWLING LOWER LH (BLACK/GRAY)

68695-15J20-AG7

Unavailable

13

CUSHION,SIDE COWL FR

94477-14J01

$12.91

14

SCREW (5X13)

09139-05064

$2.57

15

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

16

SCREW,SIDE COWL,L

94488-14J00

$3.70

17

SPACER,SIDE COWL,L

94489-14J00

$11.37

18

CUSHION | LH

09320-09016

$1.97

19

PLATE,UNDER COWL CTR

94498-14J00

$17.80

20

COVER,SIDE COWLING,R

94570-14J00

$18.88

21

TAPE (6X25X0.13)

94443-06G00

$3.25

22

COVER,SIDE COWLING,L

94580-14J00

$18.88

23

TAPE (6X25X0.13)

94443-06G00

$3.25

24

BRACKET,COVER SIDE,R

94491-14J00

$10.00

25

SCREW (5X13)

09139-05064

$2.57

26

SCREW (6X12)

09139-06062

$3.03

27

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

28

CUSHION

09320-08028

$3.04

29

CUSHION, BRACKET COVER RH

94612-31F00

$4.98

30

CLIP, UNDER CTR

94479-35F00

$5.62

31

CUSHION

33652-29F00

$3.03
