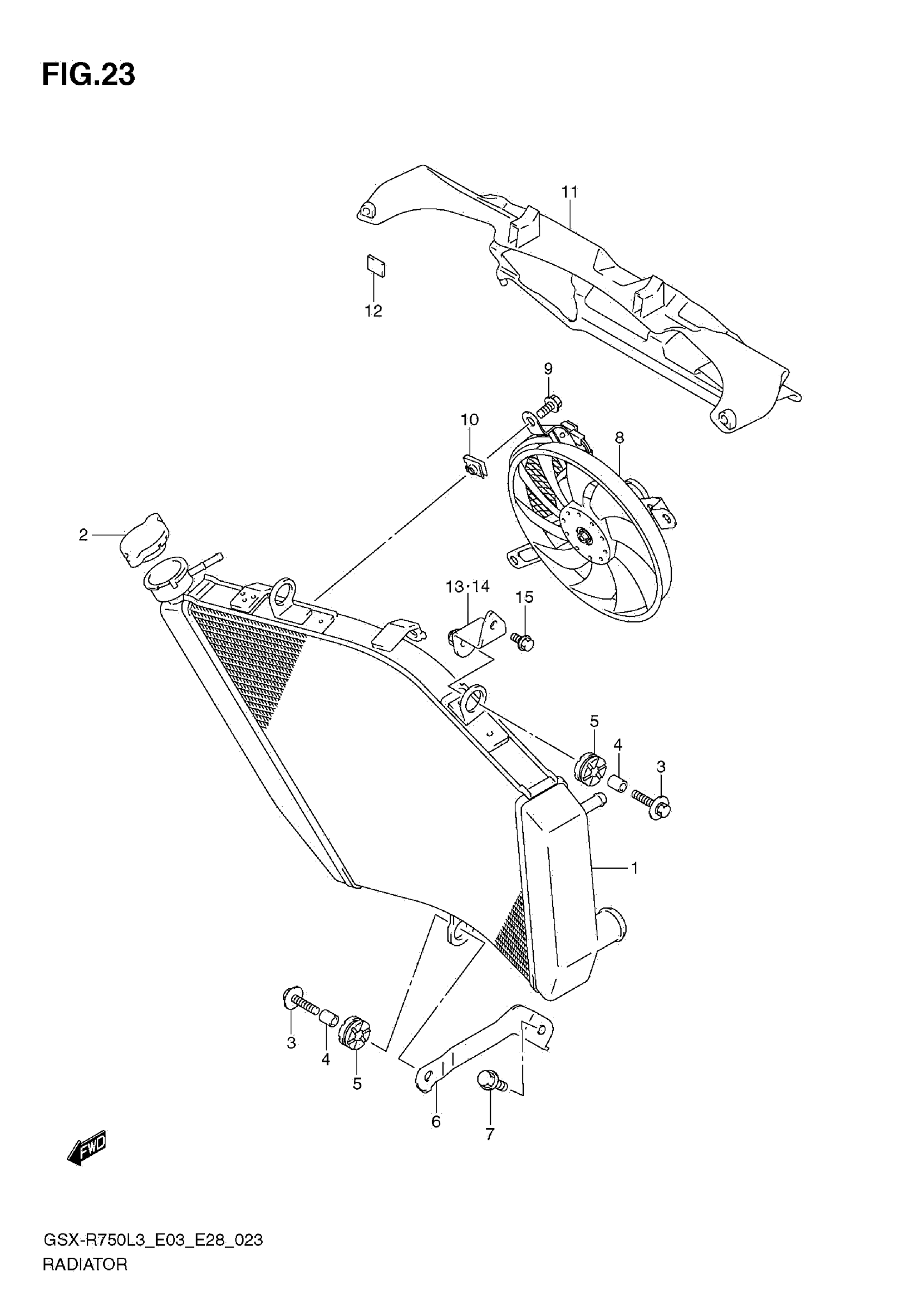

Suzuki GSX-R750L3 (2013) RADIATOR (E03) Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-14J00

$1,118.40

2

CAP

17730-14G00

$42.83

3

BOLT (6X25)

09118-06097

$2.50

4

SPACER (6.5X10X12)

09180-06290

$2.35

5

CUSHION

09320-10051

$2.99

6

BRACKET,RADIATOR

17750-14J00

$13.67

7

BOLT

01550-0612A

$1.97

8

FAN ASSY,RADIATOR This part replaces 17800-14J00.

17800-14J01

$537.43

9

BOLT,FAN ASSY

17711-14G00

$4.10

10

NUT

17802-14F00

$3.38

11

SHIELD,RADIATOR HEAT

17771-14J00

$42.77

12

CUSHION, HEAT SHIELD

61544-94500

$1.68

13

BRACKET,RADIATOR UPR,R

17741-14J00

$13.45

14

BRACKET,RADIATOR UPR,L

17742-14J00

$13.18

15

BOLT

01550-0616A

$1.97
