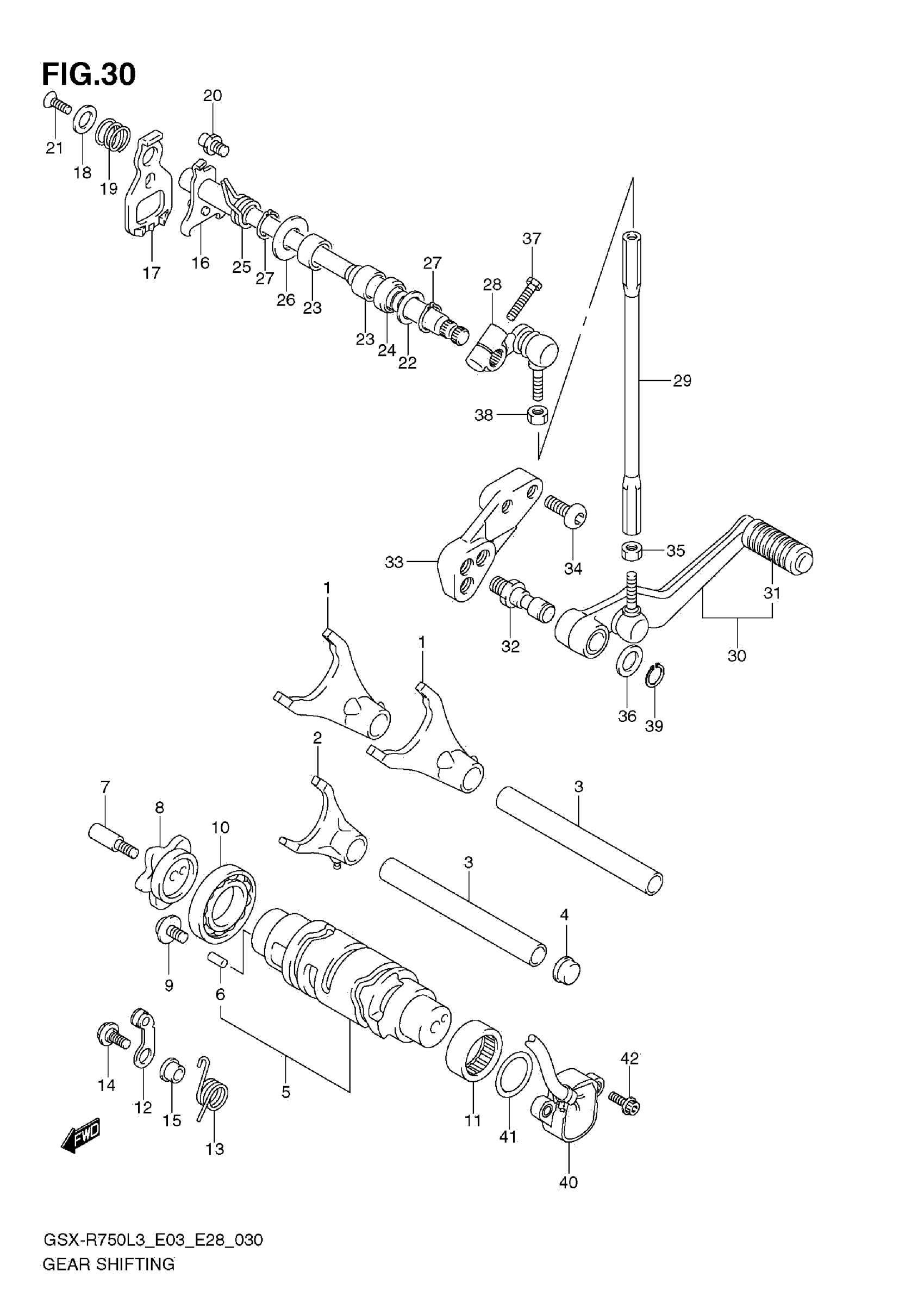

Suzuki GSX-R750L3 (2013) GEAR SHIFTING Diagram

FORK, GEAR SHIFT, NO.1

25211-01H01

$119.43

FORK,GEAR SHIFT NO.3 This part replaces 25231-01H01.

25231-01H02

$86.33

SHAFT, GEAR SHIFT FORK

25411-35F00

$33.02

PLUG, GEAR SHIFT FORK

25712-37H00

$8.55

CAM,GEAR SHIFT

25310-01H00

$285.47

PIN (4X13.8)

04221-04089

$1.15

BOLT, GEAR SHIFT CAM

25312-42F01

$7.60

PLATE, GEAR SHIFT CAM

25381-13E30

$63.98

SCREW (6X12)

09136-06147

$3.48

BEARING (25X47X8)

09262-25006

$23.85

BEARING (25X32X12)

09263-25018

$19.88

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

SPRING, SHIFT CAM STOPPER

25355-01H00

$5.75

BOLT,SHIFT CAM STOPPER ARM

25357-01H00

$5.43

SPACER, CAM STOPPER

25358-01H00

$12.35

SHAFT,GEAR SHIFT

25510-01H00

$131.65

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$23.32

WASHER, GEAR SHIFT

25519-01H00

$6.75

SPRING, GEAR SHIFT RETURN

25518-01H00

$4.18

STOPPER, GEAR SHIFT ARM

25671-01011

$4.28

SCREW (6X16)

09126-06014

$2.14

WASHER (14X29X0.8) | LH

09160-14016

$1.98

BEARING (14X20X12)

09263-14027

$12.57

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.23

SPRING

09444-20001

$4.97

SHIM (14X24X1)

09181-14195

$3.30

CIRCLIP

08331-3114A

$1.97

ARM,GEAR SHIFT This part replaces 25520-01H00.

25520-01H01

$44.78

ROD, GEAR SHIFT LINK

25525-01H00

$30.04

LEVER ASSY,GEAR This part replaces 25600-14J00.

25600-14J01

$120.93

RUBBER, GEAR PEDAL

25652-20C00

$5.21

SHAFT, GEAR SHIFT LEVER

25617-03F10

$11.80

BRACKET,GEAR SHIFT LEVER

25681-14J00

$81.72

BOLT (8X20)

09106-08167

$3.27

NUT

09140-06025

$1.89

WASHER (12.5X20X1)

09160-12011

$1.52

BOLT

01500-0625A

$1.82

.NUT

08310-00067

$1.91

CIRCLIP

08331-3112A

$1.82

SENSOR ASSY,GEAR POSITION This part replaces 37730-14J00.

37730-14J01

$70.65

O RING (D:2.4,ID:26.2)

09280-26005

$2.38

BOLT (5X16)

09106-05023

$2.80
