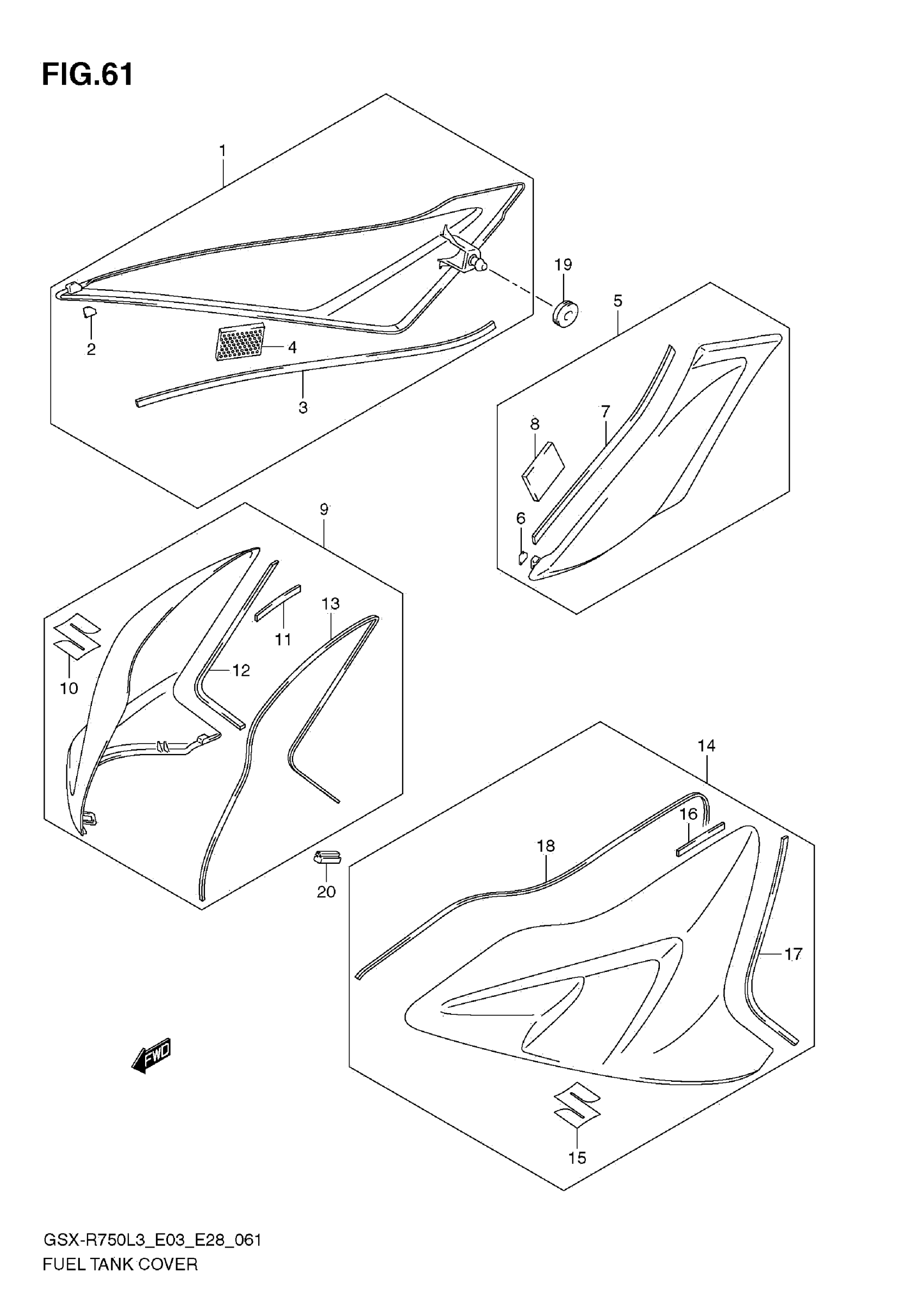

Suzuki GSX-R750L3 (2013) FUEL TANK COVER (E03) Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE,R

44170-14J00

$39.07

2

CUSHION, FUEL TANK COVER

44172-14J00

$10.42

3

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

4

FASTENER, COVER

44572-02F01

$10.59

5

COVER,FUEL TANK SIDE,L

44180-14J00

$39.07

6

CUSHION, FUEL TANK COVER

44172-14J00

$10.42

7

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

8

FASTENER, COVER

44572-02F01

$10.59

9

COVER, TANK FRONT RH (BLACK) | FOR AA3

44270-14J12-YVB

$217.12

9

COVER, TANK FRONT RH (BLUE) | FOR AGQ

44270-14J12-YSF

Unavailable

10

EMBLEM, "S"

68111-18G20

$30.90

11

CUSHION,FUEL TANK COVER NO.1

44273-14J00

$14.13

12

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$17.93

13

CUSHION,FUEL TANK COVER FR

44277-14J00

$5.14

14

COVER, TANK FRONT LH (BLACK) | FOR AA3

44280-14J12-YVB

$217.12

14

COVER, TANK FRONT LH (BLUE) | FOR AGQ

44280-14J12-YSF

$202.65

15

EMBLEM, "S"

68111-18G20

$30.90

16

CUSHION,FUEL TANK COVER NO.1

44273-14J00

$14.13

17

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$17.93

18

CUSHION,FUEL TANK COVER FR

44277-14J00

$5.14

19

CUSHION, SIDE

44173-14J00

$4.09

20

CUSHION,FUEL TANK COVER FR This part replaces 44177-14J01.

44177-14J02

$2.80
