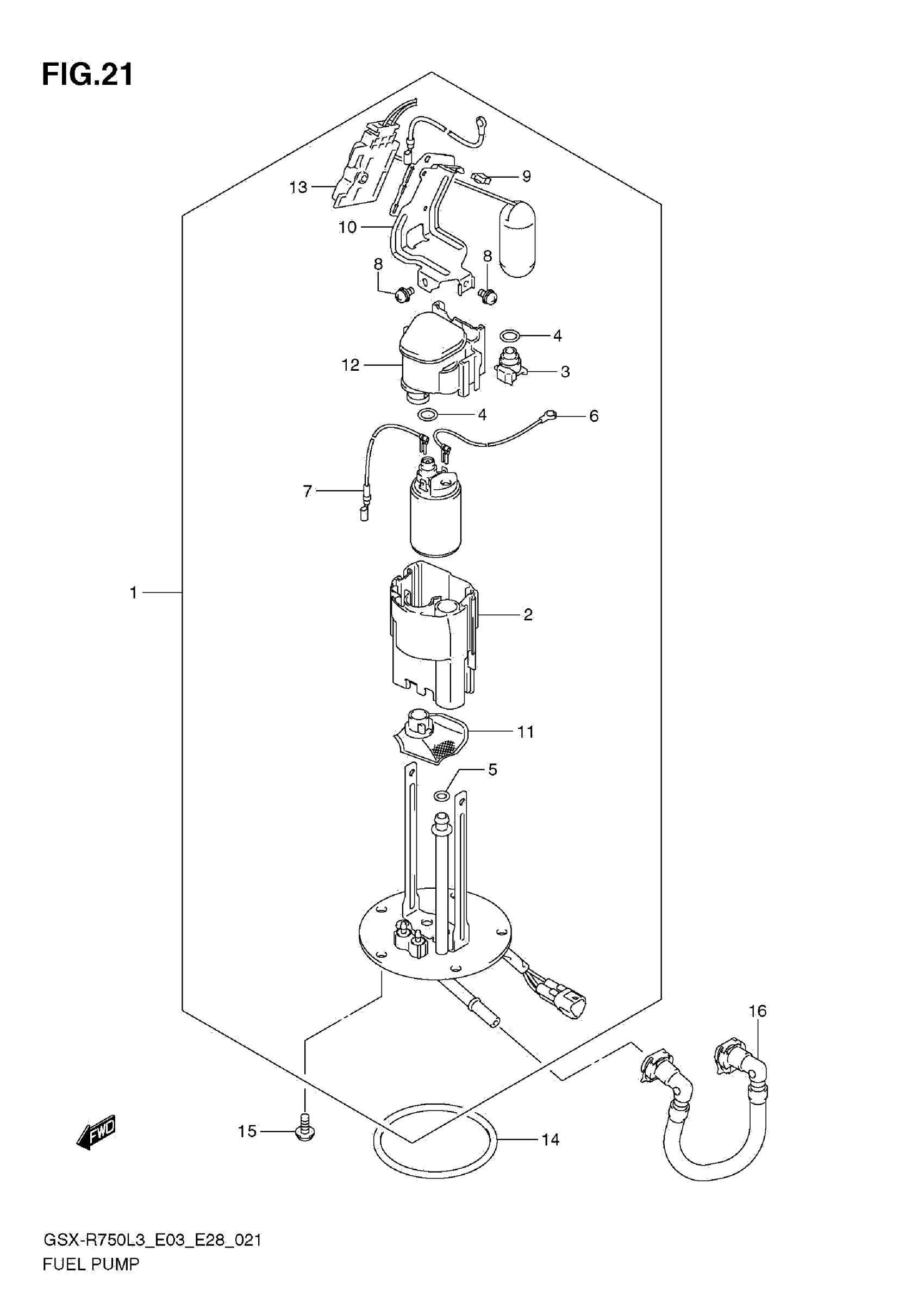

Suzuki GSX-R750L3 (2013) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-14J00.

15100-14J01

$606.31

2

CUP, RESERVOIR

15111-27G00

$42.43

3

JOINT

15112-05H00

$28.12

4

O RING

15113-05H00

$19.98

5

O RING

15113-35F00

$8.91

6

WIRE, EARTH

15114-14J00

Unavailable

7

WIRE, LEAD

15115-14J00

Unavailable

8

SCREW

15116-10F00

$5.58

9

SADDLE, EDGE

15119-23H00

Unavailable

10

.BRACKET,FUEL GAUGE

15181-14J00

Unavailable

11

STRAINER

15420-05H00

$41.17

12

REGULATOR

15610-14J00

$171.30

13

GAUGE ASSY, FUEL LEVEL

34810-14J00

Unavailable

14

O-RING

15201-35F00

$27.60

15

BOLT

07120-0612A

$2.50

16

HOSE,FUEL This part replaces 15810-14J00.

15810-14J01

$61.15
