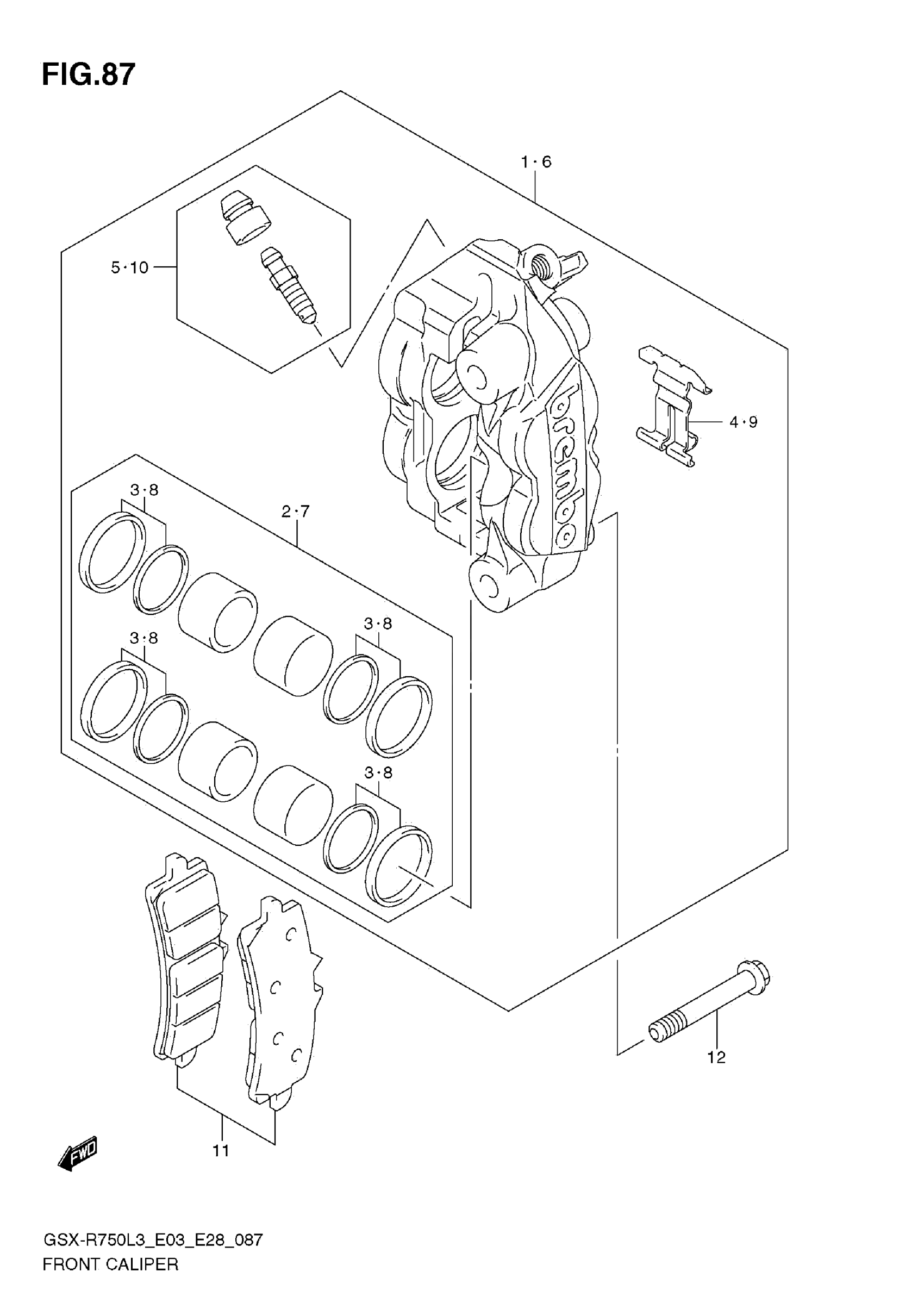

Suzuki GSX-R750L3 (2013) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,FRONT,R This part replaces 59100-14J00-999.

59100-17K20-999

$398.15

2

PISTON SET

59100-14810

$101.95

3

SEAL SET, PISTON

59100-14820

$63.34

4

SPRING, PAD

59151-14J00

$23.43

5

BLEEDER SET

59100-14840

$25.21

6

CALIPER ASSY,FRONT,L This part replaces 59300-14J00-999.

59300-17K20-999

$398.15

7

PISTON SET

59100-14810

$101.95

8

SEAL SET, PISTON

59100-14820

$63.34

9

SPRING, PAD

59151-14J00

$23.43

10

BLEEDER SET

59100-14840

$25.21

11

PAD SET (T:3.5)

59100-14830

$59.36

12

BOLT (10X70)

09103-10429

$15.38
