2013 Suzuki GSX-R750L3 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2013 Suzuki GSX-R750L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

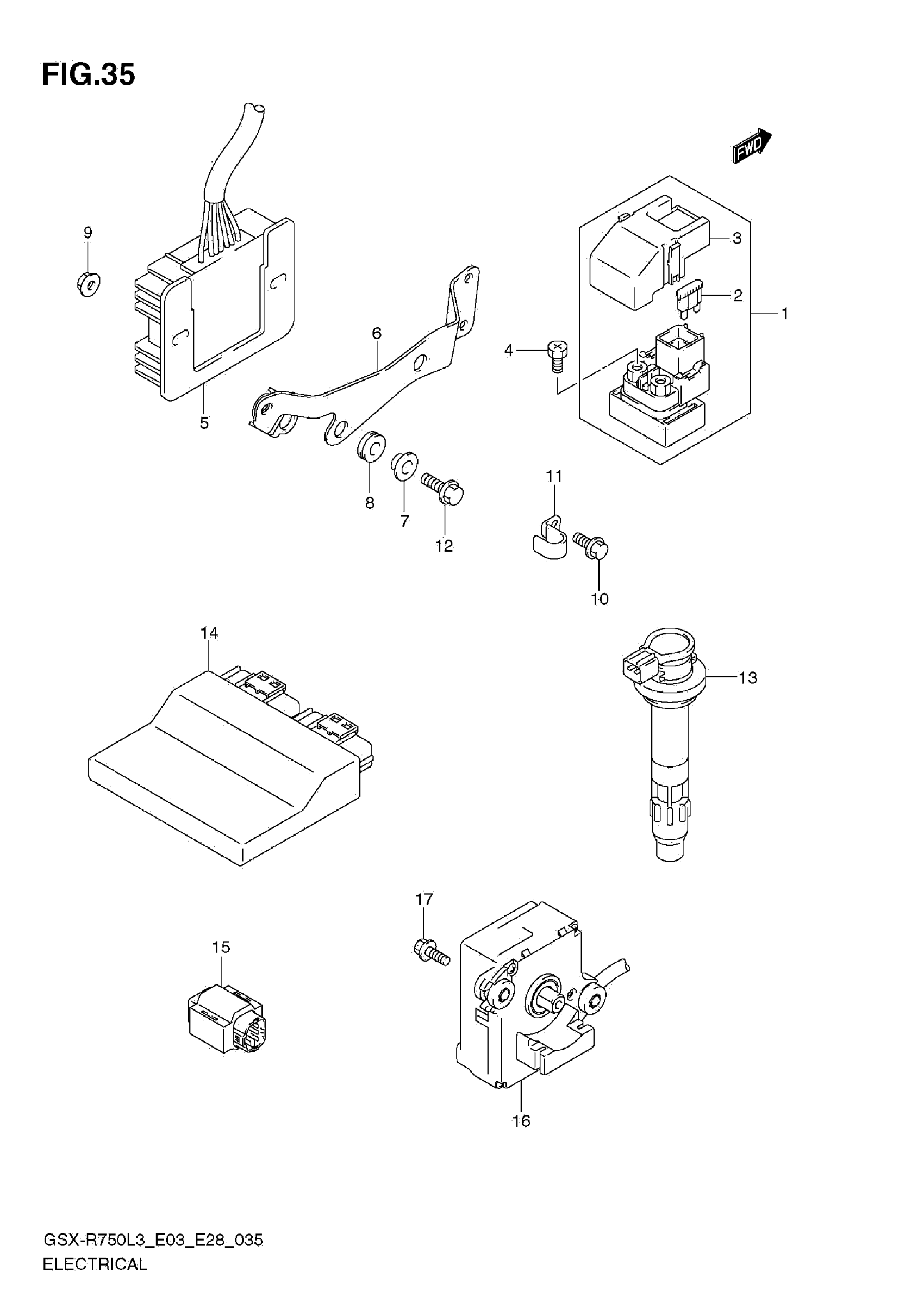

2013 Suzuki GSX-R750L3 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

1
Out of stock

2

FUSE (30A)

09481-30101

2
Out of stock

3

COVER, STARTER

31861-47E00

1
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-47H00

1
Out of stock

6

BRACKET, RECTIFIER

32830-14J00

1
Out of stock

7

SPACER (6.2X8.4X6.9)

09180-06325

2
Out of stock

8

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

9

BOLT (6X20)

09116-06182

2
Out of stock

10

BOLT

01550-0616A

2
Out of stock

11

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

12

NUT

08316-1006A

2
Out of stock

13

COIL ASSY,IGNITION

33410-38H00

4
Out of stock

14

CONTROL UNIT,FI This part replaces 32920-15J80.

32920-15J81

1
Out of stock

15

SENSOR ASSY,FUEL CUT

33960-27G00

1
Out of stock

16

ACTUATOR ASSY This part replaces 33970-47H01.

33970-47H03

1
Out of stock

17

BOLT (6X32.5)

09116-06148

2
Out of stock
