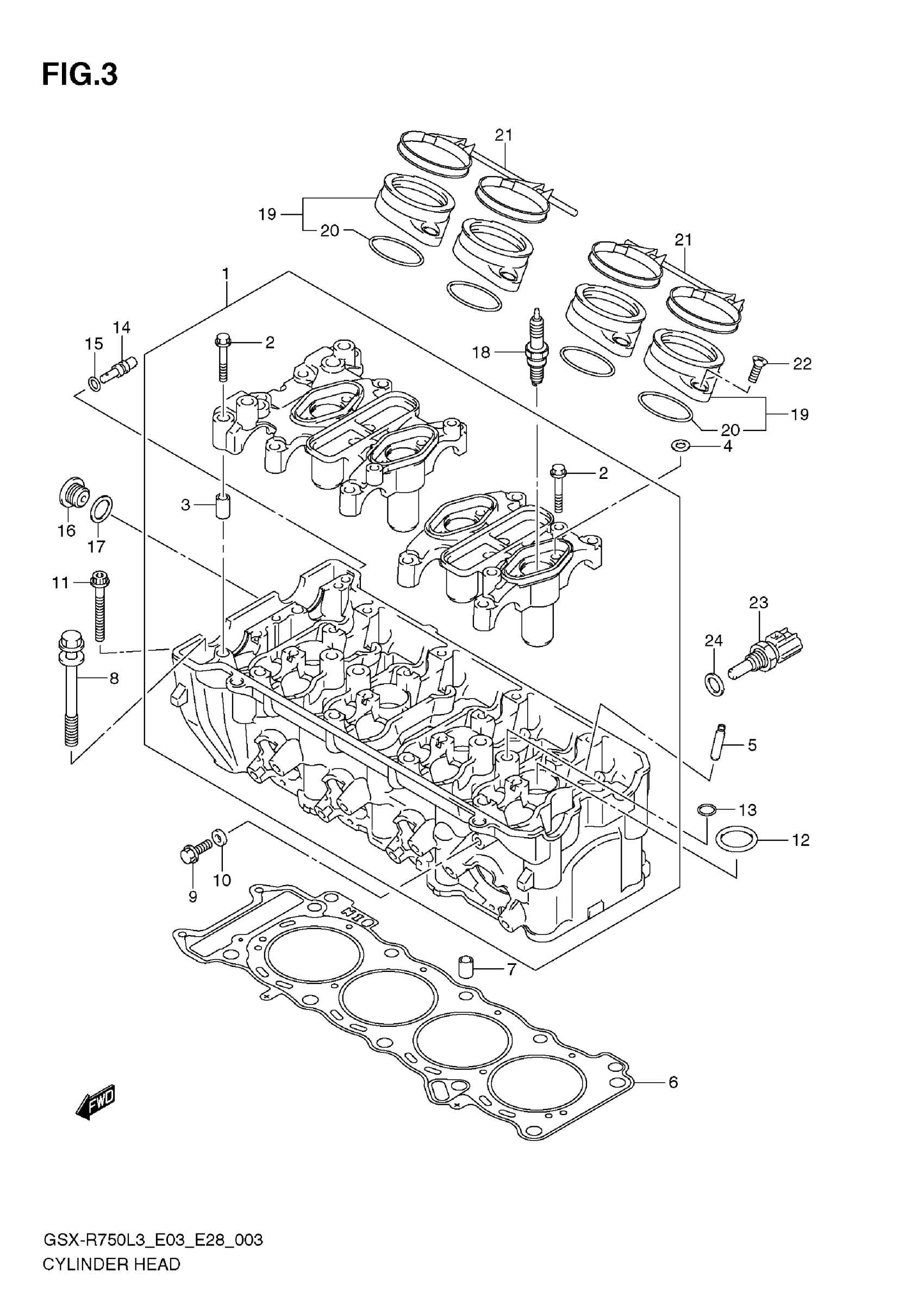

Description

Price

1

HEAD ASSY,CYLINDER

11100-38H00

$2,612.30

2

BOLT (6X40)

09103-06266

$2.19

3

PIN (6.2X8X16)

09206-08007

$2.72

4

GASKET (6.2X13X1.2)

09168-06018

$1.76

5

GUIDE, VALVE (OS 0.5) | OPT

11115-29G70

$32.35

6

GASKET, CYLINDER HEAD

11141-02H00

$73.84

7

PIN

04211-11169

$1.82

8

BOLT (10X95)

11117-29G00

$8.55

9

BOLT (6X12)

09103-06222

$2.35

10

GASKET (5.8X13X1.2)

09168-06023

$2.09

11

BOLT

07120-0650A

$3.00

12

O-RING

11179-81402

$3.96

13

O RING (D:2.4,ID:10.8)

09280-11001

$2.06

14

JET, OIL (8)

09493-80005

$17.57

15

O RING (D:1.2,ID:4)

09280-04004

$1.76

16

PLUG

09248-16012

$4.32

17

GASKET (16X22X0.8)

09168-16009

$2.57

18

SPARK PLUG (NGK,CR9EIA-9)

09482-00558

$11.12

18

SPARK PLUG (DENSO,IU27D)

09482-00557

$15.78

18

SPARK PLUG (NGK,CR8EIA-9) | OPT

09482-00556

$9.94

18

SPARK PLUG (NGK,CR10EIA-9) | OPT

09482-00560

$10.31

18

SPARK PLUG (DENSO,IU24D) | OPT

09482-00555

$17.06

18

SPARK PLUG (DENSO,IU31D) | OPT

09482-00559

$21.92

19

PIPE ASSY,INTAKE This part replaces 13101-15J00.

13101-15J01

$49.97

20

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$6.52

21

CLAMP, INTAKE PIPE

13826-02H12

$25.08

22

BOLT (6X18.4)

09120-06007
