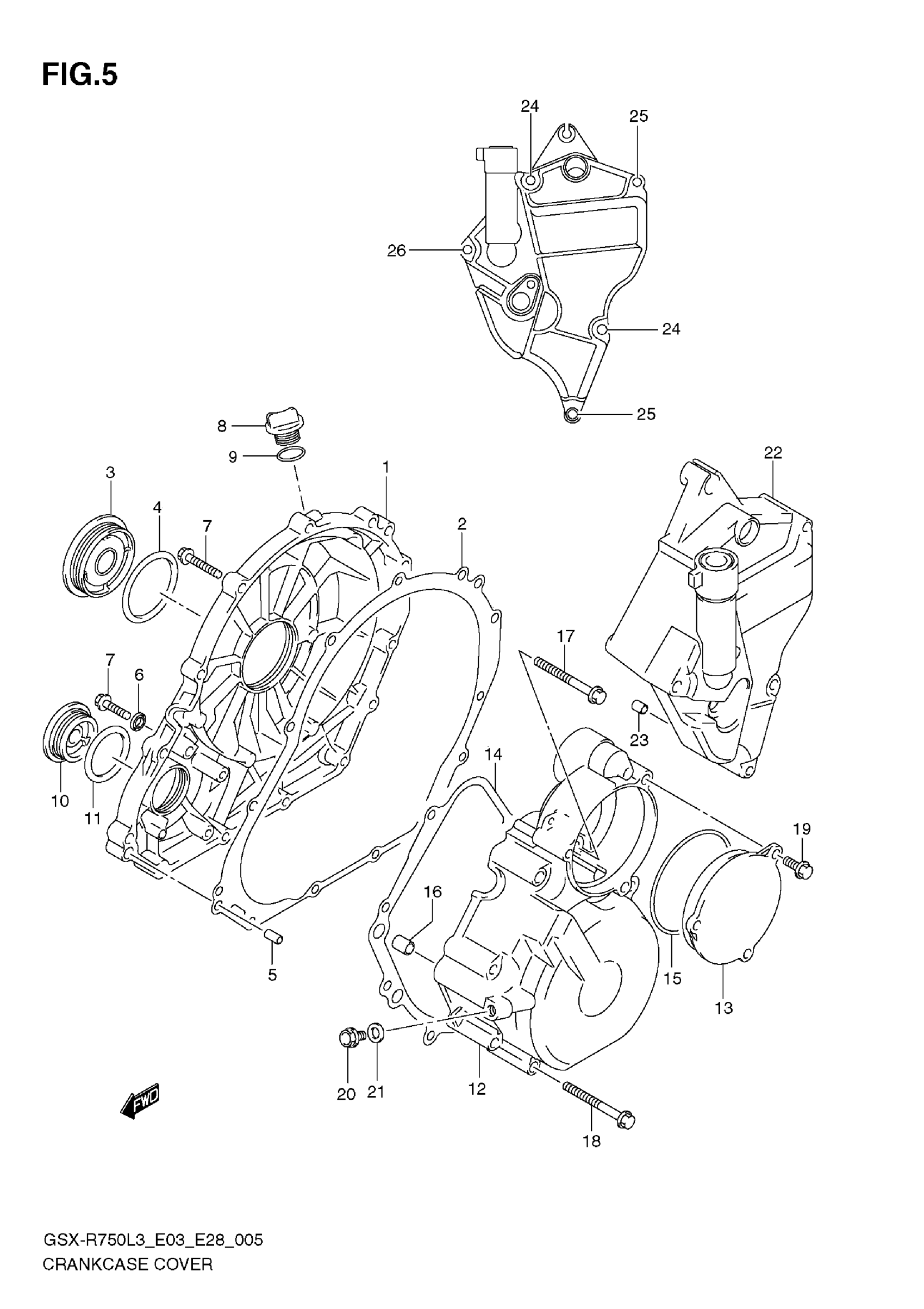

Suzuki GSX-R750L3 (2013) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11341-37H00.

11341-37H10

$178.44

2

GASKET, CLUTCH COVER

11482-01H00

$21.96

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$25.03

4

O RING, ADJUST CAP

31156-17E00

$4.60

5

PIN

04211-09189

$1.65

6

GASKET (5.8X13X1.2)

09168-06023

$2.35

7

BOLT (6X30)

09103-06213

$2.47

8

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

9

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

10

PLUG

09259-36021

$13.80

11

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

12

COVER,GENERATOR

11351-01H02

$260.43

13

CAP,STARTER IDLE GEAR

11352-01H00

$55.71

14

GASKET, GENERATOR COVER (NA)

11483-01H00

$11.30

15

O RING (D:2.6,ID:67.1)

09280-71008

$6.88

16

PIN

04211-09149

$1.65

17

BOLT (6X25)

09103-06212

$2.47

18

BOLT (6X50)

09103-06238

$2.66

19

BOLT (6X16)

09103-06274

$2.03

20

BOLT (6X12)

09103-06222

$2.26

21

GASKET (6.2X13X1.2)

09168-06018

$1.77

22

COVER,ENG SPROCKET

11361-01H00

$304.75

23

PIN

04211-09129

$1.65

24

BOLT (6X45)

09103-06224

$2.70

25

BOLT (6X65)

09103-06239

$2.66

26

BOLT (6X75)

09103-06257

$3.14
