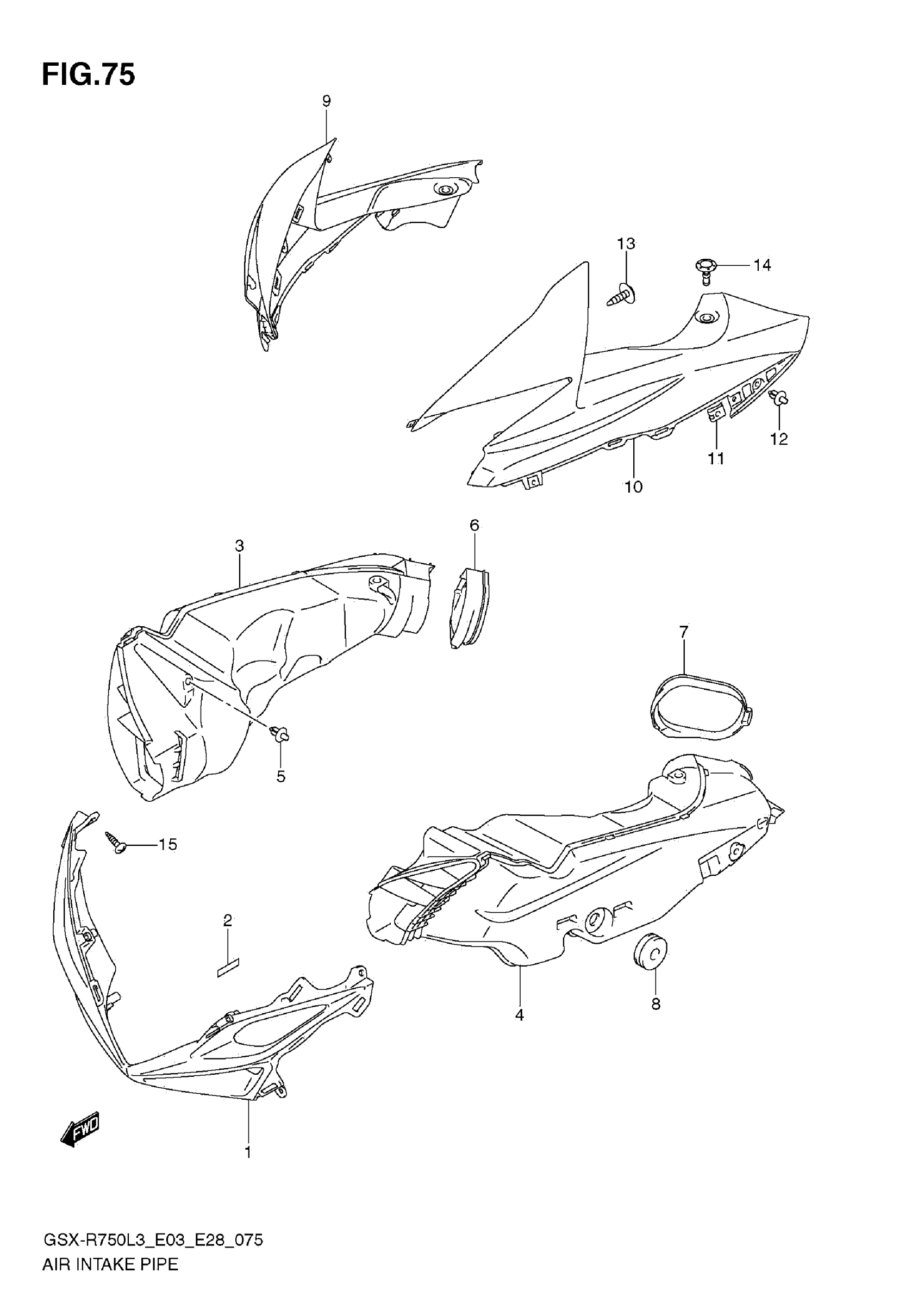

Suzuki GSX-R750L3 (2013) AIR INTAKE PIPE (AGQ) Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLUE)

94671-14J10-YUA

$249.57

2

TAPE

94443-06G00

$3.11

3

PIPE,AIR INTAKE,R

94420-14J10

$82.30

4

PIPE,AIR INTAKE,L

94430-14J10

$79.61

5

CLIP (BLACK)

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.73

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.73

8

CUSHION

09320-08028

$2.82

9

COVER,INTAKE,R This part replaces 94672-14J00-YWW.

94672-14J01-YWW

$142.77

10

COVER,INTAKE,L This part replaces 94682-14J00-YWW.

94682-14J01-YWW

$144.83

11

NUT

09148-05052

$3.13

12

CLIP (BLACK)

09409-06314-5PK

$2.80

13

SCREW (5X12)

09132-05050

$1.89

14

CLIP, REAR

94479-35F00

$5.38

15

SCREW

03541-0512A

$1.41
