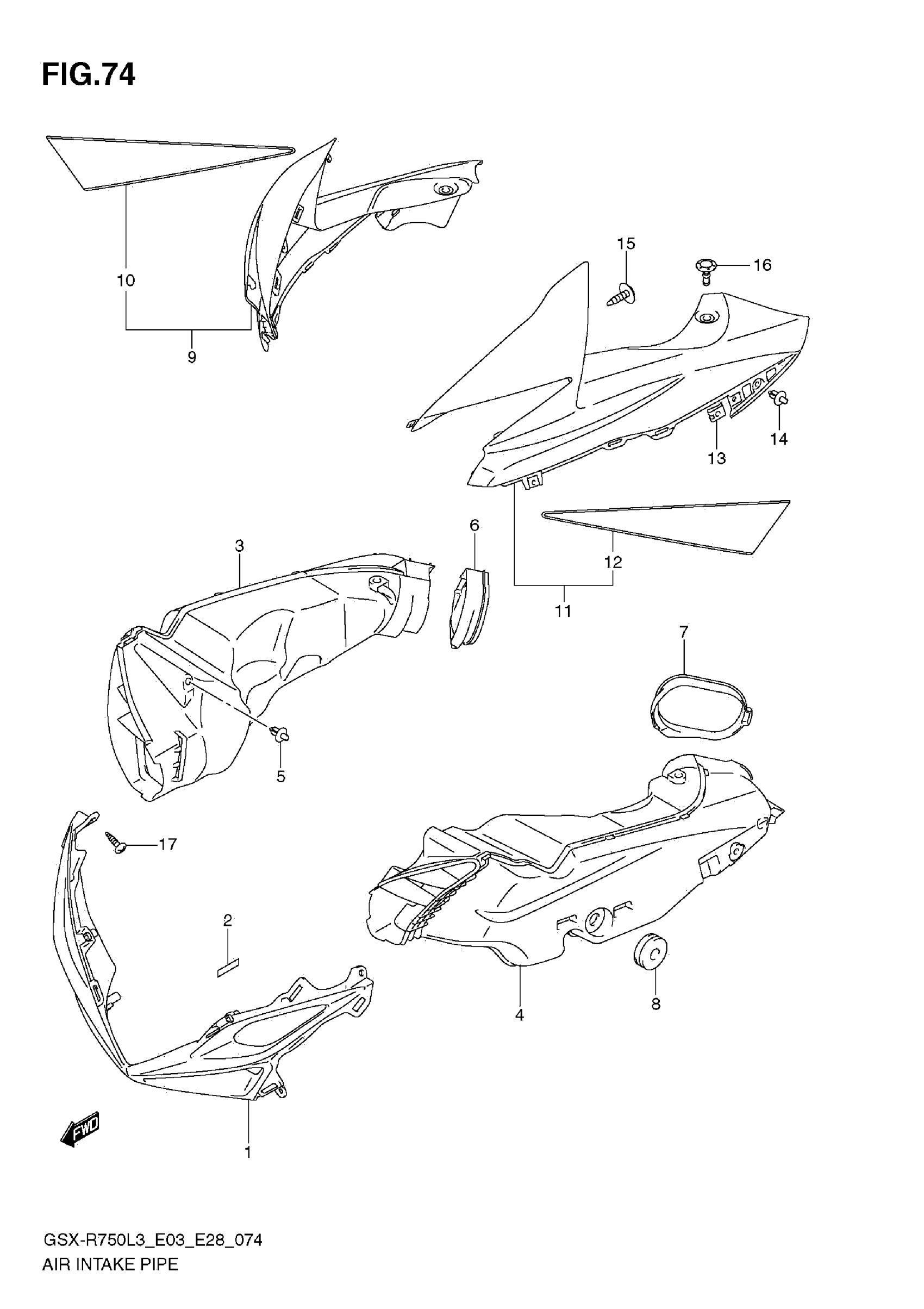

Suzuki GSX-R750L3 (2013) AIR INTAKE PIPE (AA3) Diagram

COVER, INTAKE FRONT (BLACK)

94671-14J10-YKV

$251.25

TAPE

94443-06G00

$3.11

PIPE,AIR INTAKE,R

94420-14J10

$82.30

PIPE,AIR INTAKE,L

94430-14J10

$79.61

CLIP (BLACK)

09409-06314-5PK

$2.80

MOLDING,AIR INTAKE,R

94423-14J00

$13.73

MOLDING,AIR INTAKE,L

94433-14J00

$13.73

CUSHION

09320-08028

$2.82

COVER,CMPL,INTA This part replaces 94670-15J00-YVB.

94670-15J01-YVB

$205.68

TAPE, INTAKE COVER RH (BLACK/GRAY)

68275-15J00-AG7

Unavailable

COVER,INTAKE,L( This part replaces 94680-15J00-YVB.

94680-15J01-YVB

$243.92

TAPE, INTAKE COVER LH (BLACK/GRAY)

68276-15J00-AG7

Unavailable

NUT

09148-05052

$3.13

CLIP (BLACK)

09409-06314-5PK

$2.80

SCREW (5X12)

09132-05050

$1.89

CLIP, REAR

94479-35F00

$5.38

SCREW

03541-0512A

$1.41
