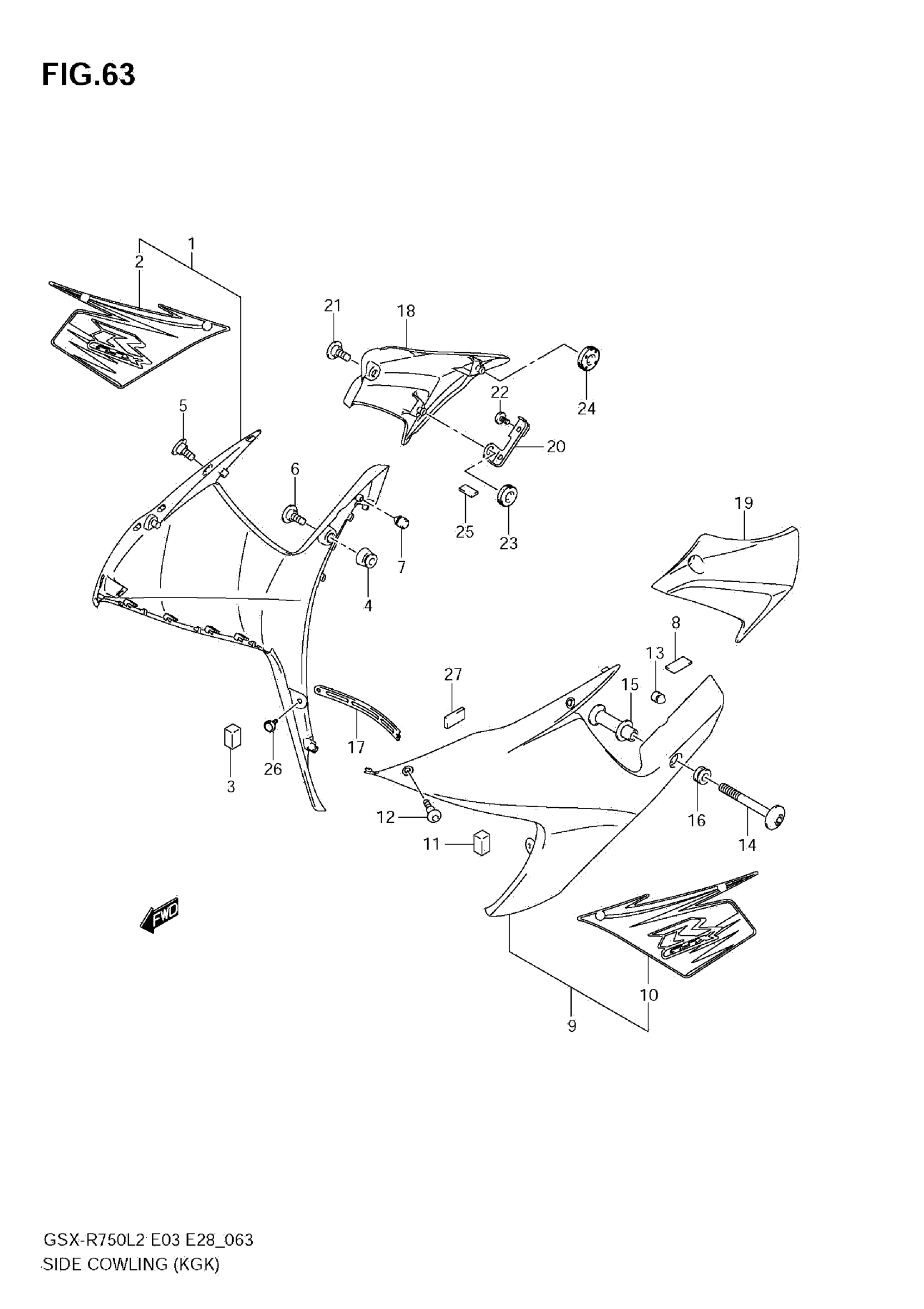

Suzuki GSX-R750L2 (2012) SIDE COWLING (KGK) Diagram

#

Description
Price

1

COWLING, SIDE RH (YELLOW)

94450-14J10-YMF

$717.78

2

TAPE, RH

68685-14J10-AA7

$145.12

3

CUSHION,SIDE COWL FR

94477-14J01

$12.35

4

CUSHION, SIDE COWLING RH

94479-15H00

$4.41

5

SCREW (5X13)

09139-05064

$2.64

6

BOLT (6X20)

09139-06190

$3.89

7

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

8

PROTECTOR, SIDE COWLING LH

44543-10G00

$5.47

9

COWLING, SIDE LH (YELLOW)

94460-14J10-YMF

$717.78

10

TAPE, LH

68695-14J10-AA7

Unavailable

11

CUSHION,SIDE COWL FR This part replaces 94477-14J00.

94477-14J01

$12.35

12

SCREW (5X13)

09139-05064

$2.64

13

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

14

SCREW,SIDE COWL,L

94488-14J00

$3.53

15

SPACER,SIDE COWL,L

94489-14J00

$10.72

16

CUSHION | LH

09320-09016

$2.01

17

PLATE,UNDER COWL CTR

94498-14J00

$16.79

18

COVER,SIDE COWLING,R

94570-14J00

$18.06

19

COVER,SIDE COWLING,L

94580-14J00

$18.06

20

BRACKET,COVER SIDE,R

94491-14J00

$11.28

21

SCREW (5X13)

09139-05064

$2.64

22

SCREW (6X12)

09139-06062

$3.30

23

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.98

24

CUSHION

09320-08028

$2.82

25

CUSHION, BRACKET COVER RH

94612-31F00

$5.62

26

CLIP, UNDER CTR

94479-35F00

$5.38

27

CUSHION

33652-29F00

$2.91
