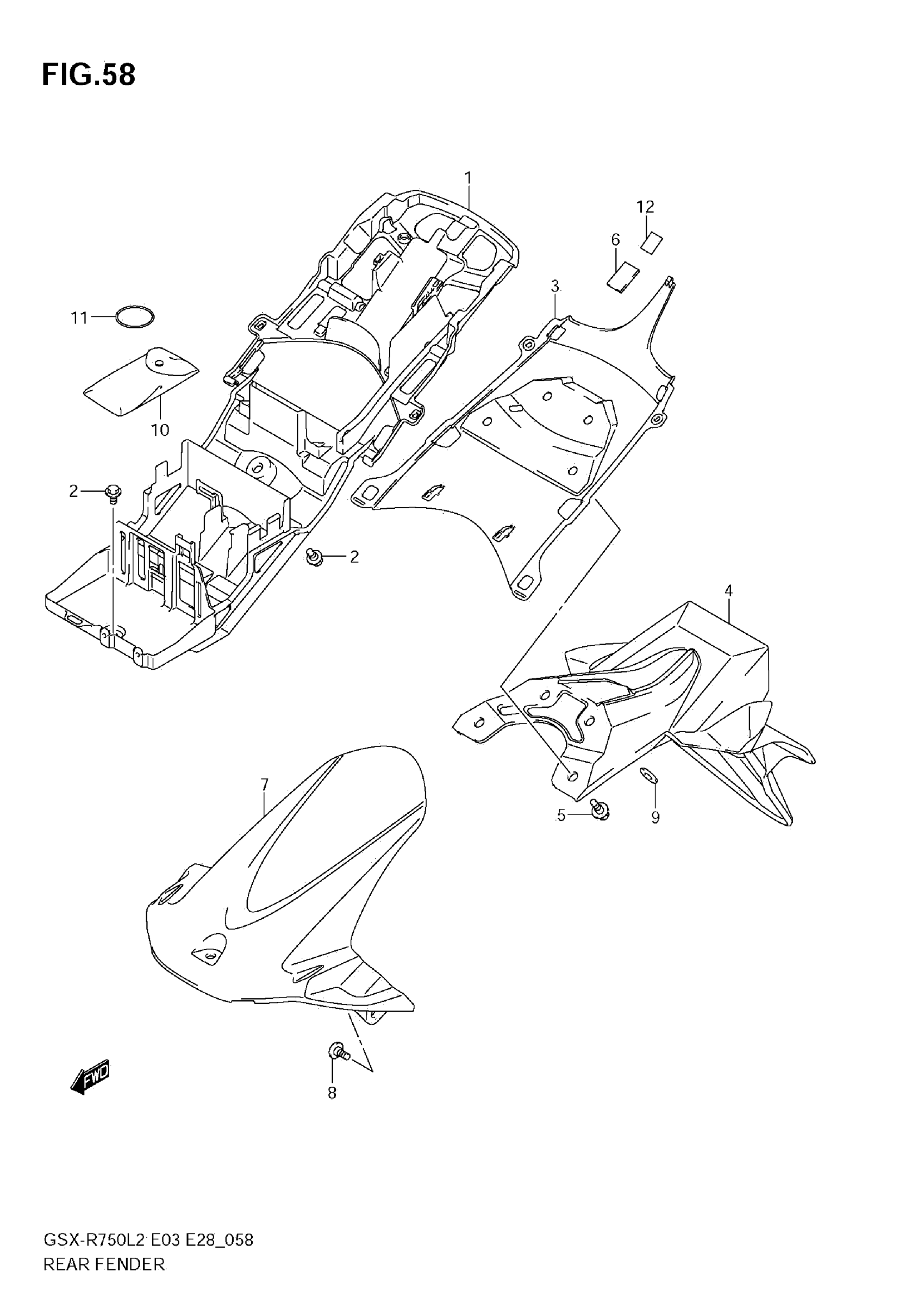

Suzuki GSX-R750L2 (2012) REAR FENDER Diagram

#

Description

Price

1

FENDER,RR FR

63111-14J00

$136.15

2

BOLT (6X12)

09111-06107

$2.60

3

COVER,RR FENDER FR This part replaces 63112-14J00.

63112-14J10

$40.70

4

FENDER,RR RR This part replaces 63113-14J00.

63113-14J01

$113.78

5

BOLT (6X17.8)

09111-06072

$2.03

6

CUSHION

44556-33H00

$7.66

7

FENDER,RR LWR

63114-14J01

$54.18

8

SCREW (6X16)

09139-06158

$4.90

9

WASHER (6.5X20X1.2)

09160-06077

$1.91

10

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

11

O RING (D:3.5,ID:56.5)

09280-57003

Unavailable

12

FASTENER, REAR FENDER

44572-37H00

$9.83
