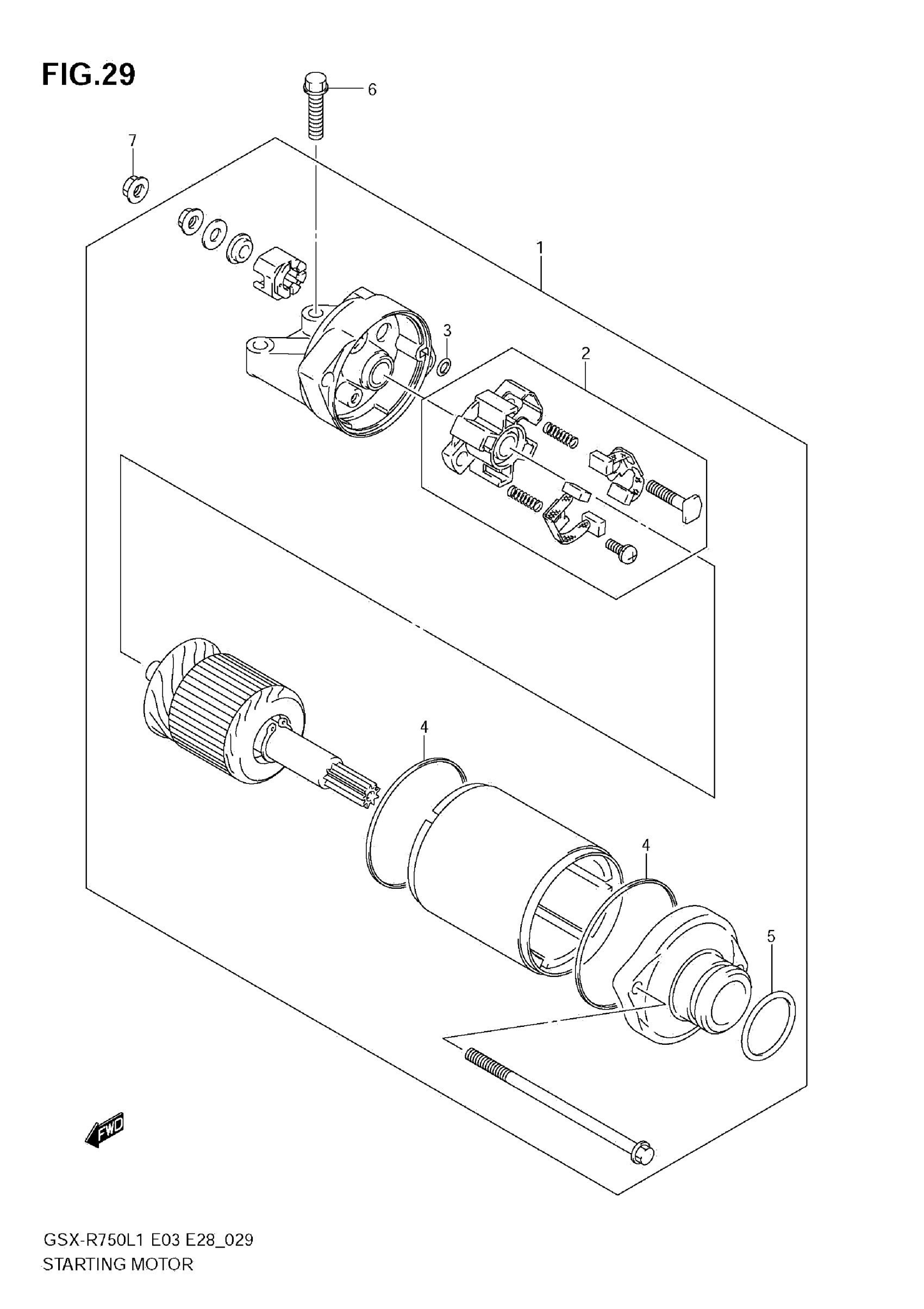

Suzuki GSX-R750L1 (2011) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING This part replaces 31100-14J00.

31100-14J10

$590.10

2

BRUSH HOLDER SET

31132-38F10

$56.75

3

O RING

31143-49040

$3.71

4

SQUARE

31264-38F10

$8.42

5

O RING

31156-98E00

$3.89

6

BOLT (6X25)

09103-06212

$2.47

7

NUT

08361-3506A

$1.80
