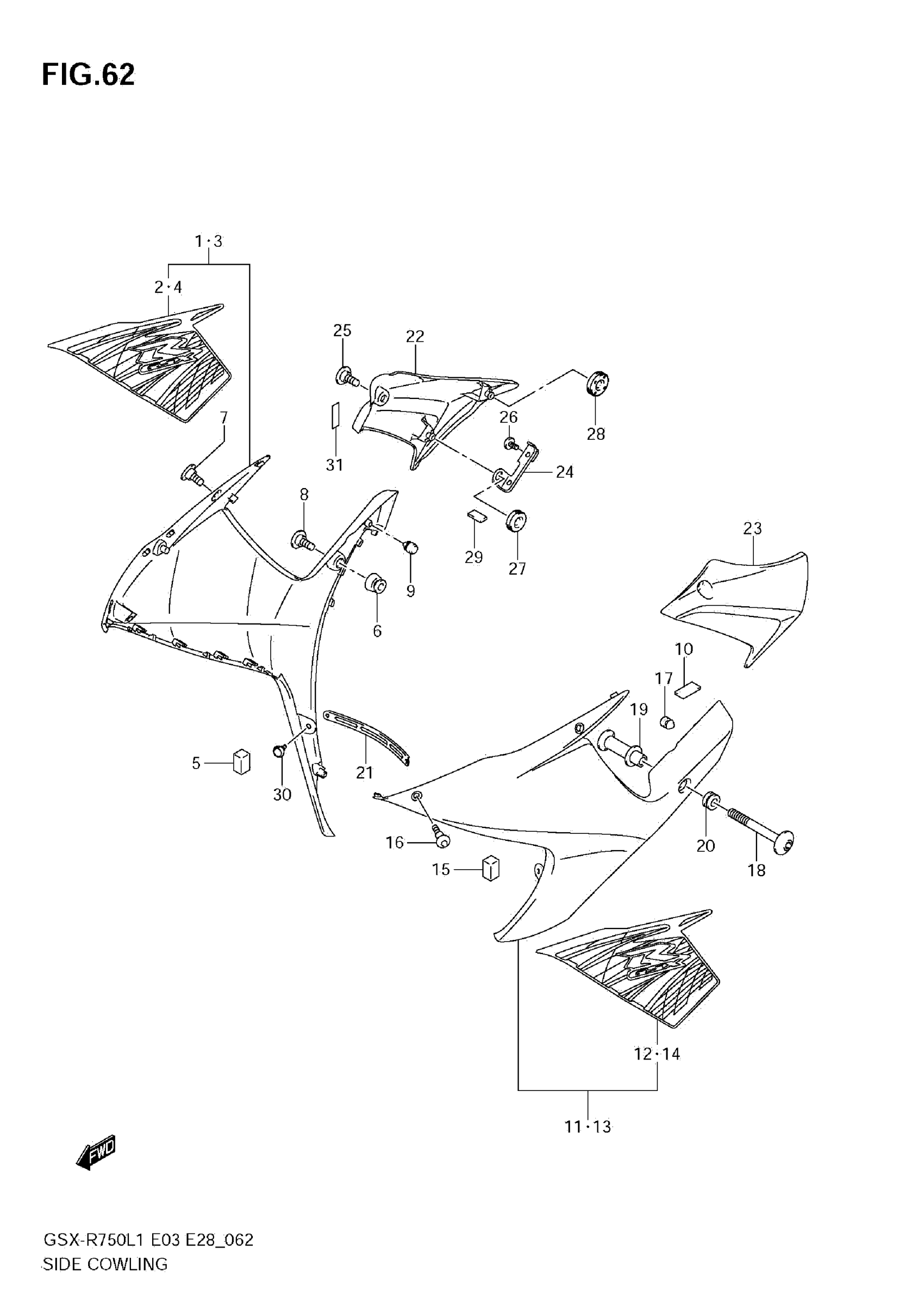

Suzuki GSX-R750L1 (2011) SIDE COWLING Diagram

#

Description
Price

1

COWLING, SIDE RH (WHITE) | FOR GLR

94450-15J00-YBD

$541.75

2

TAPE, "GSXR" RH | FOR GLR

68681-15J00-JSN

$38.55

3

COWLING, SIDE RH (BLACK) | FOR 6UX

94450-14J10-YVB

$590.10

4

TAPE, RH | FOR 6UX

68685-14J10-JWS

$130.35

5

CUSHION,SIDE COWL FR This part replaces 94477-14J00.

94477-14J01

$12.91

6

CUSHION, SIDE COWLING RH

94479-15H00

$4.48

7

SCREW (5X13)

09139-05064

$2.57

8

BOLT (6X20)

09139-06190

$4.17

9

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

10

PROTECTOR, SIDE COWLING LH

44543-10G00

$5.56

11

COWLING, SIDE LH (WHITE) | FOR GLR

94460-15J00-YBD

$541.75

12

TAPE, "GSXR" LH | FOR GLR

68691-15J00-JSN

$38.55

13

COWLING, SIDE LH (BLACK) | FOR 6UX

94460-14J10-YVB

$612.57

14

TAPE, RH | FOR 6UX

68695-14J10-JWS

Unavailable

15

CUSHION,SIDE COWL FR This part replaces 94477-14J00.

94477-14J01

$12.91

16

SCREW (5X13)

09139-05064

$2.57

17

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

18

SCREW,SIDE COWL,L

94488-14J00

$3.70

19

SPACER,SIDE COWL,L

94489-14J00

$11.37

20

CUSHION | LH

09320-09016

$1.97

21

PLATE,UNDER COWL CTR

94498-14J00

$17.80

22

COVER,SIDE COWLING,R

94570-14J00

$18.88

23

COVER,SIDE COWLING,L

94580-14J00

$18.88

24

BRACKET,COVER SIDE,R

94491-14J00

$10.00

25

SCREW (5X13)

09139-05064

$2.57

26

SCREW (6X12)

09139-06062

$3.03

27

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

28

CUSHION

09320-08028

$3.04

29

CUSHION, BRACKET COVER RH

94612-31F00

$4.98

30

CLIP, UNDER COWL

94479-35F00

$5.62

31

TAPE, COVER SIDE

94443-06G00

$3.25
