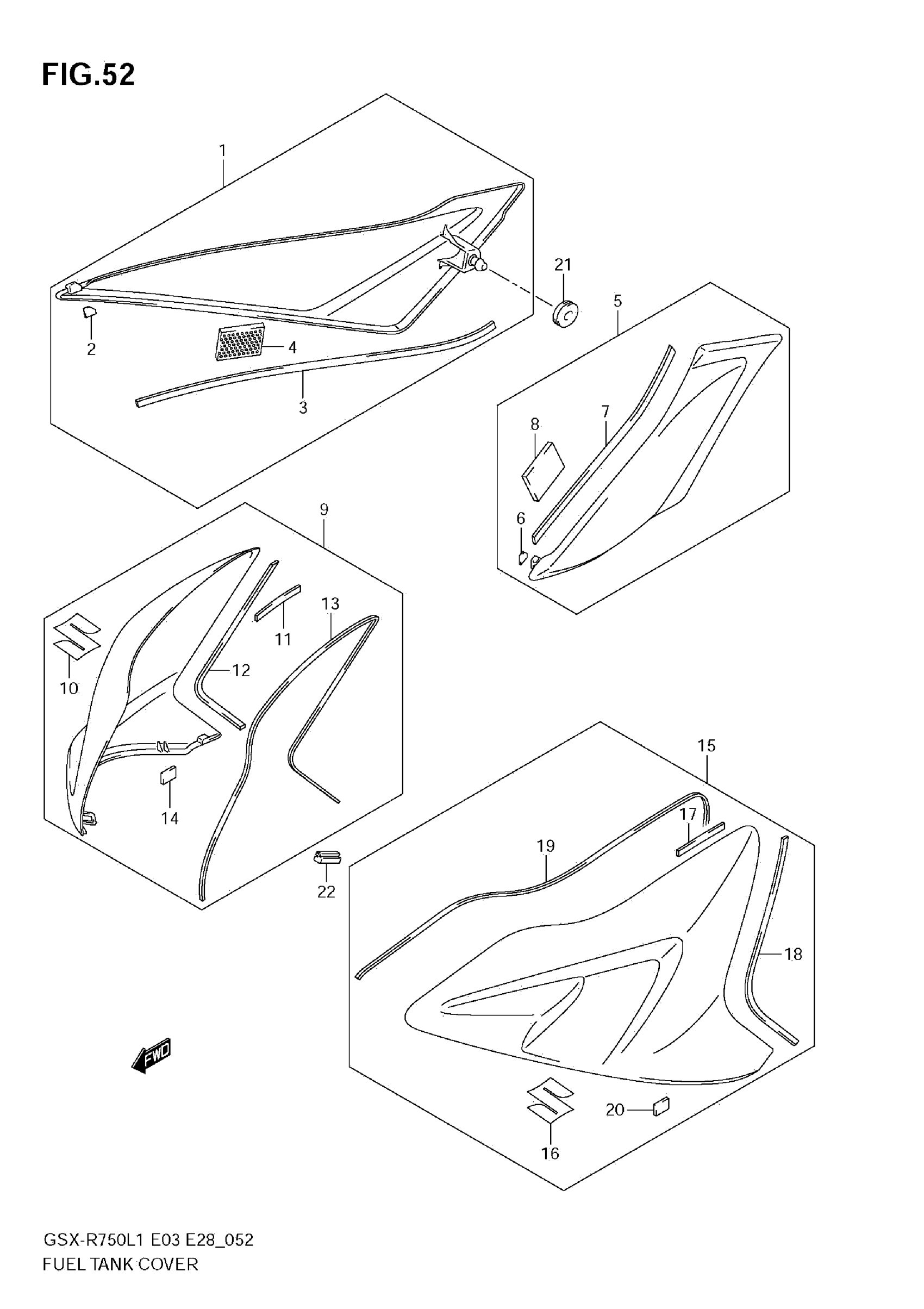

Suzuki GSX-R750L1 (2011) FUEL TANK COVER Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE,R

44170-14J00

$37.39

2

CUSHION, FUEL TANK COVER

44172-14J00

$10.42

3

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

4

FASTENER, COVER

44572-02F01

$10.13

5

COVER,FUEL TANK SIDE,L

44180-14J00

$37.39

6

CUSHION, FUEL TANK COVER

44172-14J00

$10.42

7

CUSHION,FUEL TANK SIDE COVER

44278-14J00

$6.15

8

FASTENER, COVER

44572-02F01

$10.13

9

COVER, TANK FRONT RH (BLUE) | FOR GLR This part replaces 44270-14J00-YSF.

44270-14J12-YSF

$206.48

9

COVER, TANK FRONT RH (BLACK) | FOR 6UX This part replaces 44270-14J00-YVB.

44270-14J12-YVB

$217.12

10

EMBLEM, "S"

68111-18G20

$29.56

11

CUSHION, FUEL TANK CVR NO.1

44273-14J00

$13.52

12

.CUSHION,FUEL TANK COVER,R NO

44274-14J00

$17.16

13

CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

14

FASTENER,FUEL TANK COVER

44572-14J00

$15.83

15

COVER, TANK FRONT LH (BLUE) | FOR GLR This part replaces 44280-14J00-YSF.

44280-14J12-YSF

$202.65

15

COVER, TANK FRONT LH (BLACK) | FOR 6UX This part replaces 44280-14J00-YVB.

44280-14J12-YVB

$217.12

16

EMBLEM, "S"

68111-18G20

$29.56

17

CUSHION, FUEL TANK CVR NO.1

44273-14J00

$13.52

18

.CUSHION,FUEL TANK COVER,L NO

44284-14J00

$17.16

19

CUSHION, FUEL TANK COVER FR

44277-14J00

$4.91

20

FASTENER,FUEL TANK COVER

44572-14J00

$15.83

21

CUSHION, SIDE

44173-14J00

$3.92

22

CUSHION,FUEL TANK COVER FR This part replaces 44177-14J00.

44177-14J02

$2.80
