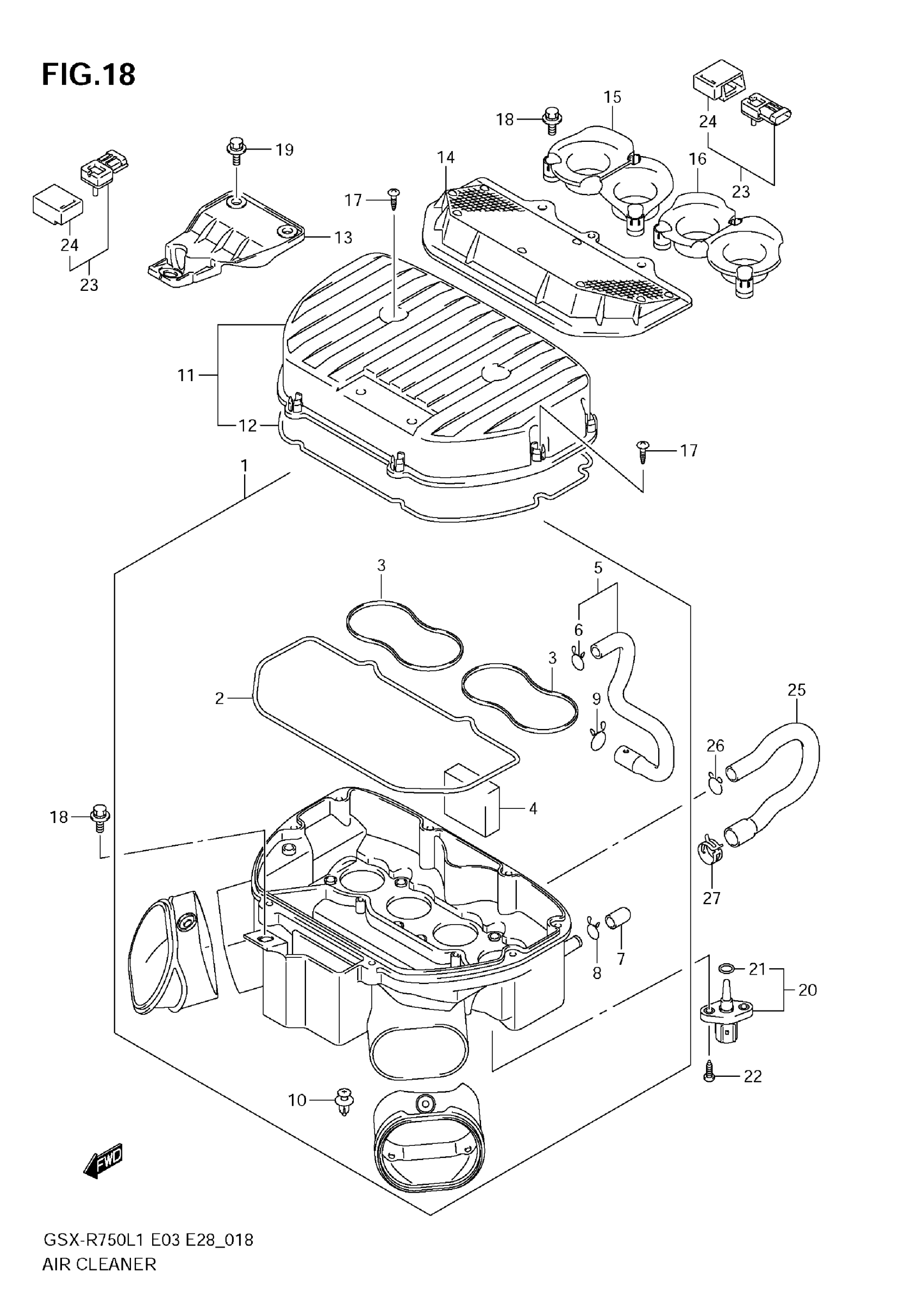

Suzuki GSX-R750L1 (2011) AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANER This part replaces 13720-14J00.

13720-14J01

$221.65

2

GASKET, CASE

13756-14J00

$6.05

3

GASKET, CASE

13757-14J00

$6.38

4

FILTER BREATHER

13788-14J00

$5.86

5

.TUBE,BREATHER This part replaces 13850-14J00.

13850-14J01

$28.22

6

CLIP

09401-15101

$2.26

7

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

8

CLIP

09401-14301

$2.35

9

CLIP

09401-17201

$3.15

10

CLIP (BLACK)

09409-07305-5PK

$2.21

11

CAP,AIR CLEANER

13740-14J00

$74.92

12

GASKET,CAP

13746-14J00

$12.88

13

HOLDER,AIR CLEANER

13760-14J00

$18.80

14

FILTER ASSY

13780-14J00

$42.76

15

FUNNEL,OUTLET,R

13881-15J00

$42.77

16

FUNNEL,OUTLET,L

13882-15J00

$42.77

17

SCREW

03541-0520A

$1.80

18

BOLT, AIR CLEANER CASE

13831-47H00

$8.44

19

BOLT (6X16)

09111-06089

$2.62

20

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

$52.06

21

O RING

13655-14G10

$9.90

22

SCREW

03511-0516A

$1.86

23

SENSOR, AIR PRESSURE

15630-29G10

$273.45

24

COVER

15625-29G00

$12.40

25

HOSE, ISC VALVE

13697-14J00

$20.52

26

CLIP

09401-15101

$2.26

27

CLIP

09401-17401

$3.08
