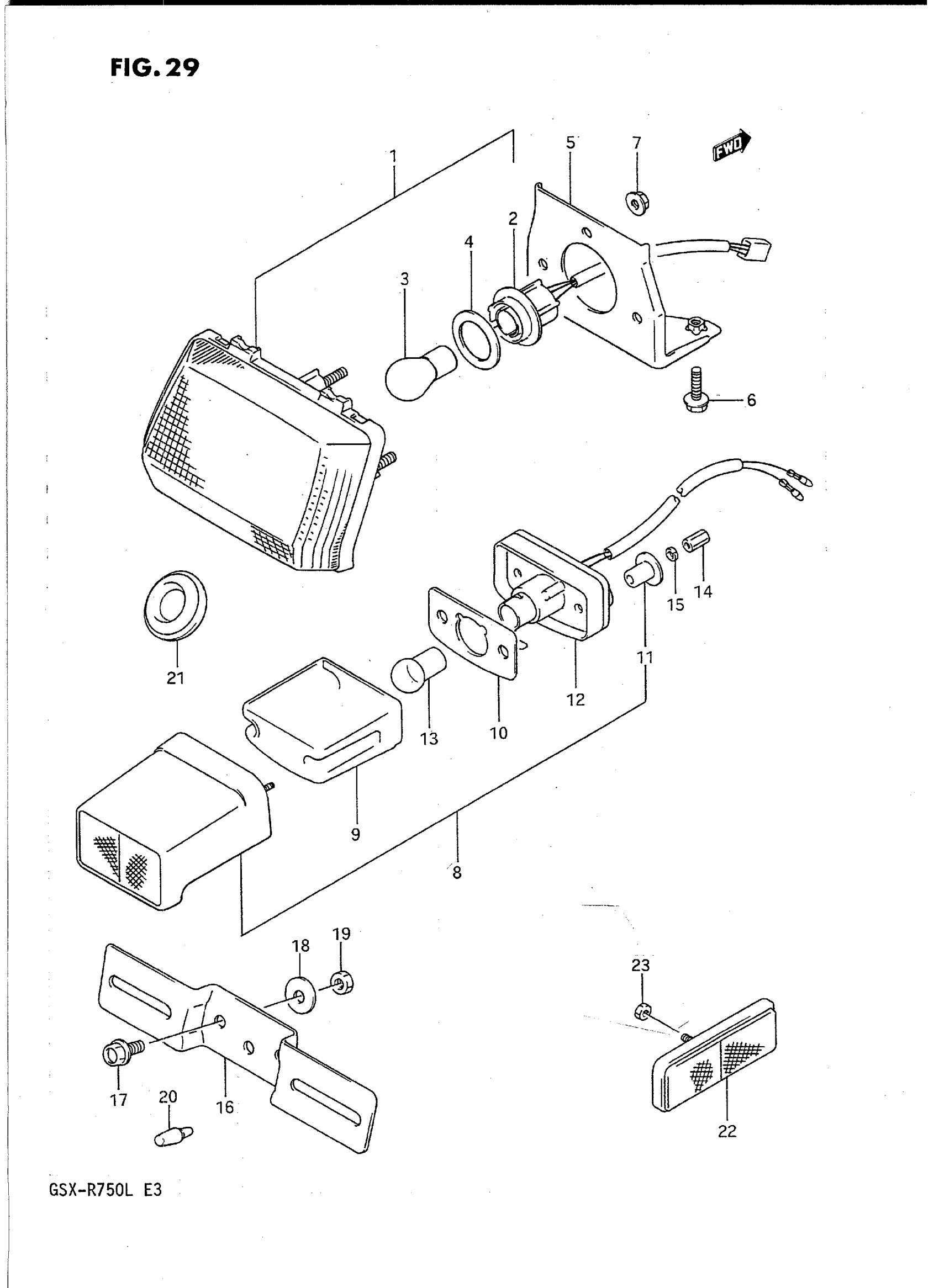

Suzuki GSX-R750L (1990) TAIL LAMP - LICENSE LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 4 This part replaces 35710-17C00.

35710-17X50

Unavailable

2

SOCKET & CORD

35718-17C00

Unavailable

3

BULB (12V,21/5W)

09471-12128

$6.73

4

GASKET

35764-48B20

Unavailable

5

BRACKET

35730-17C00

Unavailable

6

BOLT This part replaces 01517-06128.

01550-06127

$2.30

7

NUT This part replaces 08316-26066.

08316-1006B

$2.50

8

LAMP ASSY, LICENSE | Includes Item(s) 9 - 13

35910-17C00

Unavailable

9

LENS, LICENSE LAMP

35912-38A30

$20.45

10

GASKET

35913-38A30

$3.37

11

SPACER

35766-17C00

Unavailable

12

HOUSING

35915-17C00

Unavailable

13

BULB (12V5W) | MODEL J/K This part replaces 09471-12139.

09471-12058

$2.33

13

BULB (12V5W) | MODEL L

09471-12058

$2.33

14

NUT

09140-04006

$4.86

15

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

16

BRACKET, LICENSE PLATE

35927-00A10

$14.20

17

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

18

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

19

NUT This part replaces 08316-26066.

08316-1006B

$2.50

20

CUSHION

09321-06023

$2.50

21

CAP,OD:40 This part replaces 09250-30010.

72999-67H00

$5.10

22

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

Unavailable

23

.NUT This part replaces 08310-22055.

09140-05006

$2.19
