1990 Suzuki GSX-R750L Speedometer Diagram

← All diagrams

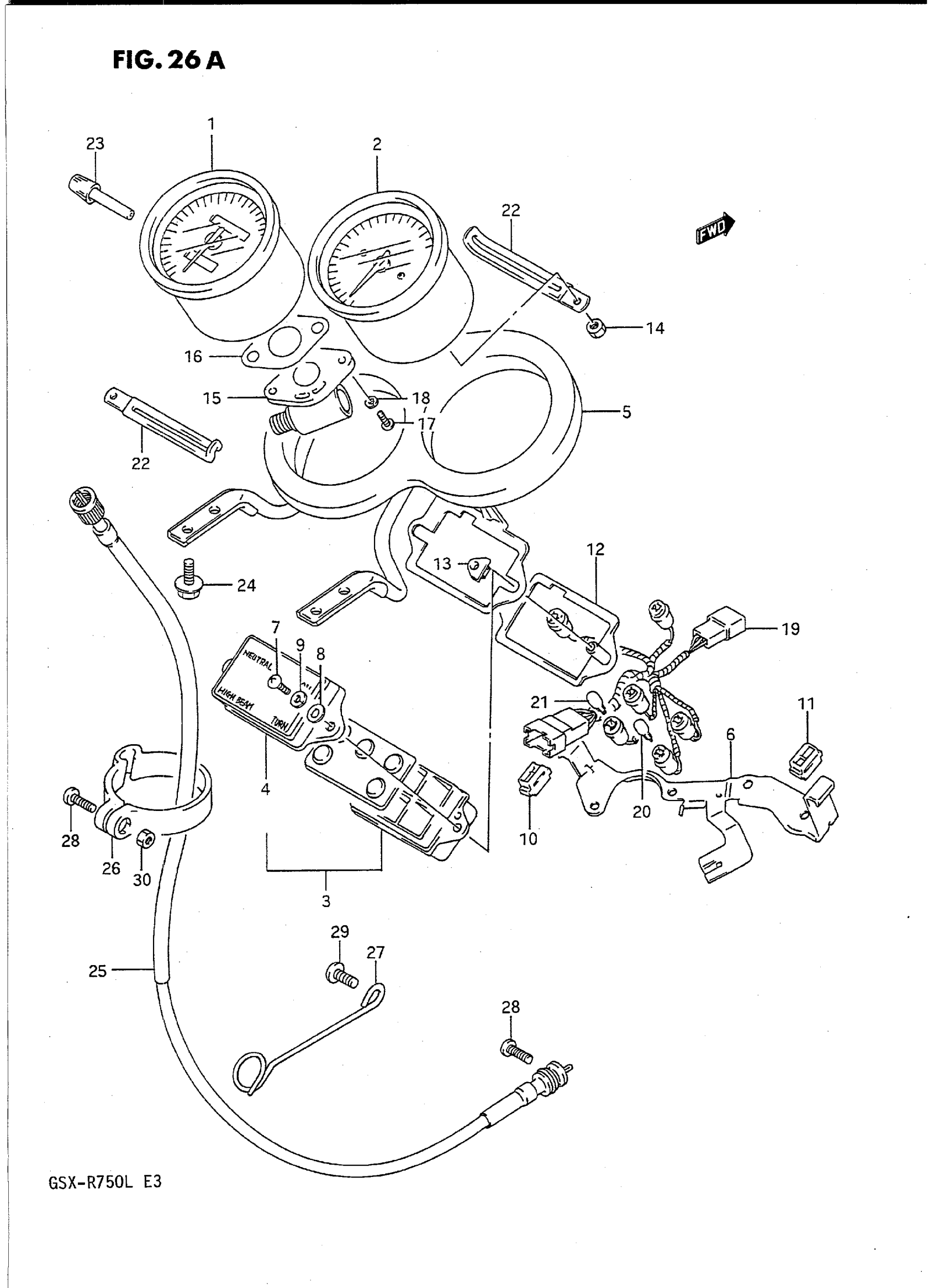

Find the part on the Speedometer diagram for your 1990 Suzuki GSX-R750L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Suzuki GSX-R750L Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER This part replaces 34110-17C30.

34110-41C31

1
Out of stock

2

TACHOMETER This part replaces 34210-17C80.

34210-18D00

1
Out of stock

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 36380-32C20.

36380-17C20

1
Out of stock

4

LENS, BOX This part replaces 36381-32C20.

36381-32C10

1
Out of stock

5

PLATE, SETTING

34950-17C80

1
Out of stock

6

BRACKET

34111-17C00

1
Out of stock

7

2

$1.33

In stock

8

WASHER This part replaces 08322-21045.

08322-0104A

2
Out of stock

9

LOCK WASHER This part replaces 08321-21047.

08321-0104A

2
Out of stock

10

DAMPER, LH

34189-17C00

1
Out of stock

11

CUSHION This part replaces 34189-04A30.

34189-27A00

1
Out of stock

12

PLATE, SETTING

34718-32C00

1
Out of stock

13

DAMPER

34716-32C00

2
Out of stock

14

NUT This part replaces 08310-11045.

08310-0004A

2
Out of stock

15

BOX, METER GEAR

34131-48B10

1
Out of stock

16

GASKET

34132-17C00

1
Out of stock

17

2

$1.33

In stock

18

LOCK WASHER This part replaces 08321-21045.

08321-0104A

2
Out of stock

19

SOCKET This part replaces 34170-17C20.

34170-41C20

1
Out of stock

20

BULB (12V,3W)

09471-12103

5
Out of stock

21

.BULB (12V1.7W)

09471-12108

1
Out of stock

22

CLAMP (L:60) This part replaces 09404-04402.

09404-06429

2
Out of stock

23

KNOB

34124-49400

1
Out of stock

24

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

4
Out of stock

25

CABLE,SPEEDOMET This part replaces 34910-17C01.

34910-19C02

1
Out of stock

26

CLAMP, CABLE NO.2 This part replaces 34938-17D50.

34938-17D51

1
Out of stock

27

CLAMP, CABLE NO.3

34939-17D00

1
Out of stock

28

SCREW

02112-05164

2
Out of stock

29

SCREW

02142-06108

1
Out of stock

30

NUT This part replaces 08310-11058.

08310-00057

1
Out of stock
