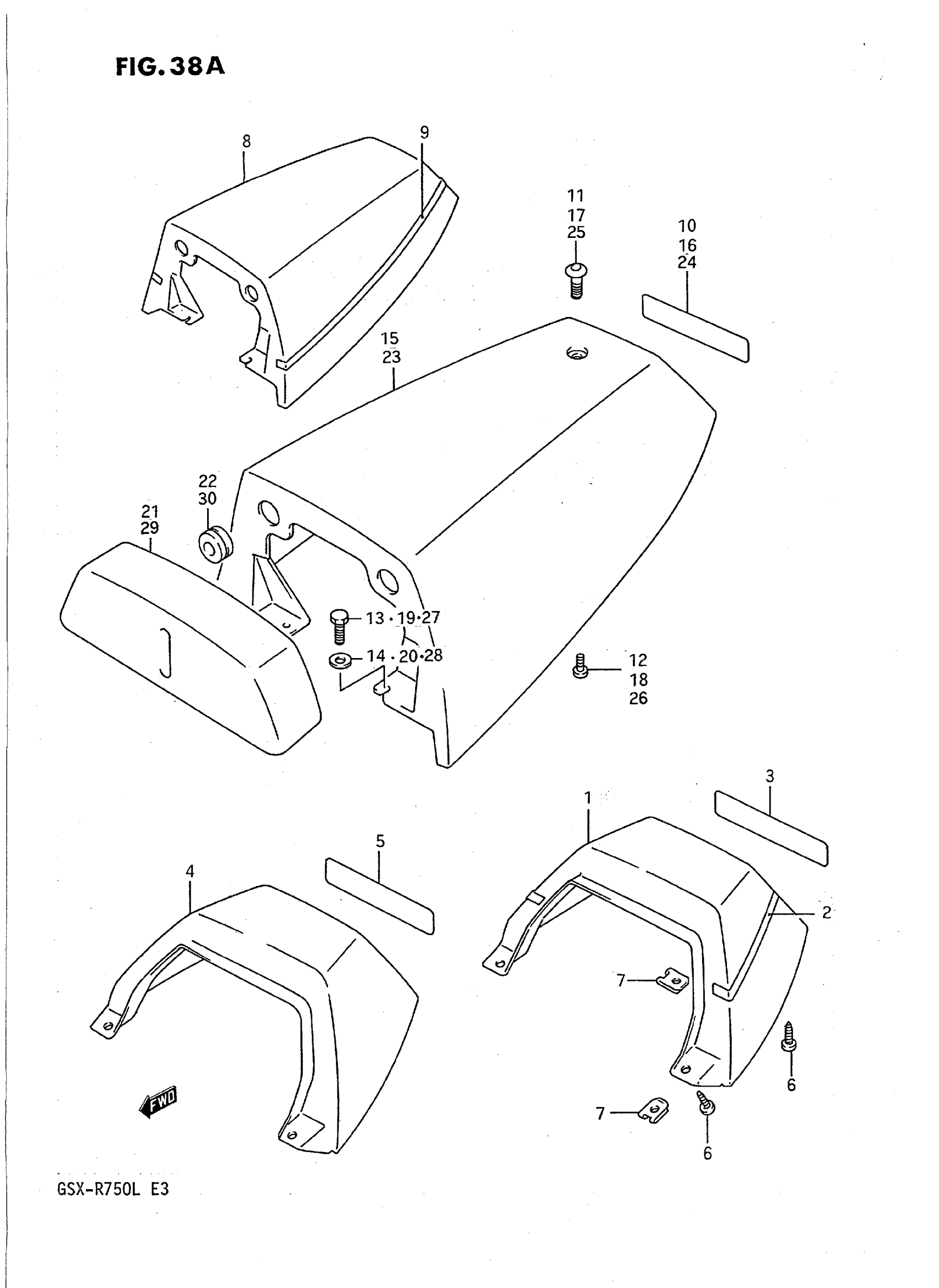

Suzuki GSX-R750L (1990) SEAT TAIL COVER (MODEL K/L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K FOR 7JJ,W/CLEAR This part replaces 45510-17C60-7JJ.

45510-17C62-7JJ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K FOR 7JJ,N/CLEAR; Includes Item(s) 2 - 3 This part replaces 45510-17C61-7JJ.

45510-17C62-7JJ

Unavailable

2

TAPE, SEAT TAIL COVER | MODEL K FOR 7JJ

68245-17C20-7JT

Unavailable

3

EMBLEM (WHITE) | MODEL K FOR 7JJ This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

4

COVER, SEAT TAI | MODEL K FOR 9SR,W/CLEAR This part replaces 45510-17C40-33N.

45511-17C00

Unavailable

4

COVER, SEAT TAI | MODEL K FOR 9SR,N/CLEAR This part replaces 45510-17C41-33N.

45511-17C00

Unavailable

4

COVER, SEAT TAI | MODEL L FOR 3SL This part replaces 45510-17C42-0NE.

45511-17C00

Unavailable

4

COVER, SEAT TAI | MODEL L FOR 3RZ; Includes Item(s) 5 - 5 This part replaces 45510-17C42-019.

45511-17C00

Unavailable

5

EMBLEM (WHITE) | MODEL K FOR 33N This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

5

EMBLEM (WHITE) | MODEL L

68166-04700-0JW

$5.02

6

SCREW This part replaces 03242-05129.

03241-0512A

$1.49

7

NUT

09148-05013

$2.07

8

NO DESCRIPTION AVAILABLE | OPT,MODEL K FOR 7JJ,W/CLEAR This part replaces 45500-17C30-7JJ.

45500-17880-13L

Unavailable

8

NO DESCRIPTION AVAILABLE | OPT,MODEL K FOR 7JJ,N/CLEAR; Includes Item(s) 9 - 14 This part replaces 45500-17C31-7JJ.

45500-17880-13L

Unavailable

9

TAPE, SEAT TAIL BOX | OPT,MODEL K FOR 7JJ

68655-17C20-7JT

Unavailable

10

EMBLEM (WHITE) | OPT,MODEL K FOR 77J This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

11

BOLT, UPPER | OPT

09139-06030

$3.70

12

SCREW | OPT This part replaces 02142-05128.

02142-05127

$1.97

13

BOLT, GEAR SHIFT LINK | OPT This part replaces 01107-06206.

01500-0620A

$1.78

14

LOCK WASHER | OPT This part replaces 08321-21066.

08321-0106A

$1.84

15

NO DESCRIPTION AVAILABLE | OPT,MODEL K FOR 9SR,W/CLEAR This part replaces 45500-17C20-33N.

45500-17880-13L

Unavailable

15

NO DESCRIPTION AVAILABLE | OPT,MODEL K FOR 9SR,N/CLEAR; Includes Item(s) 16 - 20 This part replaces 45500-17C21-33N.

45500-17880-13L

Unavailable

16

EMBLEM (WHITE) | OPT,MODEL K FOR 33N This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

17

BOLT, UPPER | OPT

09139-06030

$3.70

18

SCREW | OPT This part replaces 02142-05128.

02142-05127

$1.97

19

BOLT, GEAR SHIFT LINK | OPT This part replaces 01107-06206.

01500-0620A

$1.78

20

LOCK WASHER | OPT This part replaces 08321-21066.

08321-0106A

$1.84

21

BACKREST, SEAT (BLUE) | OPT,MODEL K FOR 9SR

46220-17C10-5NN

Unavailable

21

BACKREST, SEAT (RED) | OPT,MODEL K FOR 7JJ

46220-17C10-58R

Unavailable

22

CUSHION | OPT

09320-12031

$2.34

23

BOX SET, SEAT TAIL (BLUE) | OPT,MODEL L FOR 3SL

45500-17840-0NE

Unavailable

23

BOX SET, SEAT TAIL (BLACK) | OPT,MODEL L FOR 3RZ; Includes Item(s) 24 - 30

45500-17840-019

Unavailable

24

EMBLEM (WHITE) | OPT,MODEL L

68166-04700-0JW

$5.02

25

BOLT, UPPER | OPT

09139-06030

$3.70

26

SCREW | OPT This part replaces 02142-05128.

02142-05127

$1.97

27

BOLT, GEAR SHIFT LINK | OPT This part replaces 01107-06206.

01500-0620A

$1.78

28

LOCK WASHER | OPT This part replaces 08321-21066.

08321-0106A

$1.84

29

BACKREST, SEAT (BLUE) | OPT,MODEL L FOR 0NE

46220-17C10-5NN

Unavailable

29

BACKREST, SEAT (BLACK) | OPT,MODEL L FOR 019

46220-17C10-58R

Unavailable

30

CUSHION | OPT

09320-12031

$2.34
