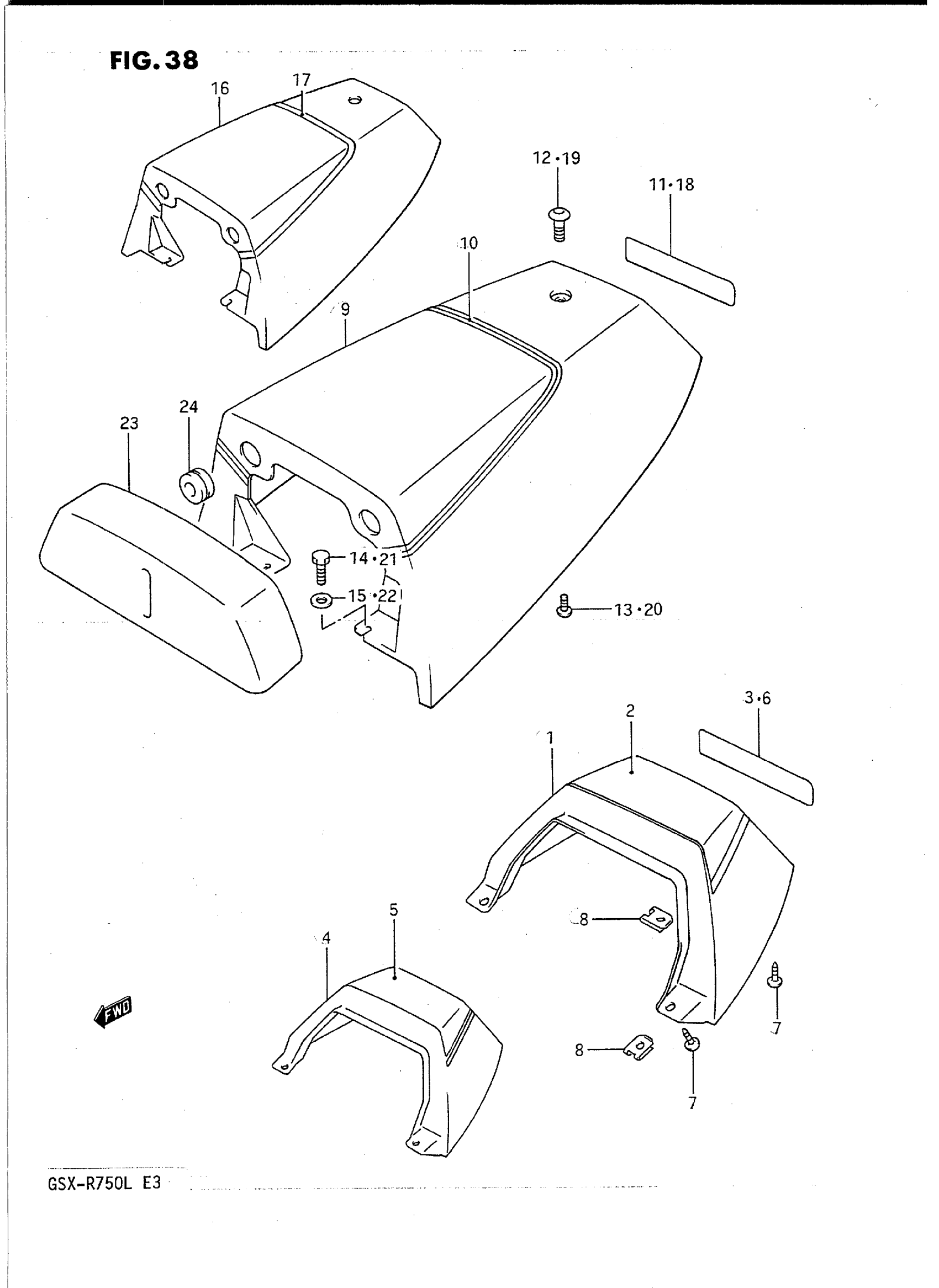

Suzuki GSX-R750L (1990) SEAT TAIL COVER (MODEL J) Diagram

#

Description
Price

1

COVER, SEAT TAI | FOR 7JJ; Includes Item(s) 2 - 3 This part replaces 45510-17C00-22P.

45511-17C00

Unavailable

2

TAPE, SEAT TAIL COVER | FOR 22P

68245-17C00-7JT

Unavailable

3

EMBLEM (WHITE) | FOR 22P This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

4

COVER, SEAT TAI | FOR 9SR; Includes Item(s) 5 - 6 This part replaces 45510-17C20-33N.

45511-17C00

Unavailable

5

TAPE, SEAT TAIL COVER (WHITE | FOR 33N

68245-17C10-22R

Unavailable

6

EMBLEM (WHITE) | FOR 33N This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

7

SCREW This part replaces 03242-05129.

03241-0512A

$1.49

8

NUT

09148-05013

$2.07

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 - 15 This part replaces 45500-17C00-7JJ.

45500-17860-7JJ

Unavailable

10

TAPE, SEAT TAIL BOX | FOR 7JJ

68655-17C00-7JK

Unavailable

11

EMBLEM (WHITE) | FOR 77J This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

12

BOLT, UPPER

09139-06030

$3.70

13

SCREW This part replaces 02142-05128.

02142-05127

$1.97

14

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

15

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

16

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 22 This part replaces 45500-17C10-9SR.

45500-17850-9SR

Unavailable

17

TAPE, SEAT TAIL BOX (WHITE) | FOR 9SR

68655-17C10-9SR

Unavailable

18

EMBLEM (WHITE) | FOR 9SR This part replaces 68166-04700-22R.

68166-04700-0JW

$5.02

19

BOLT, UPPER

09139-06030

$3.70

20

SCREW This part replaces 02142-05128.

02142-05127

$1.97

21

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

22

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

23

BACKREST, SEAT (BLUE) | FOR 9SR

46220-17C10-5NN

Unavailable

23

BACKREST, SEAT (RED) | FOR 7JJ

46220-17C10-58R

Unavailable

24

CUSHION

09320-12031

$2.34
