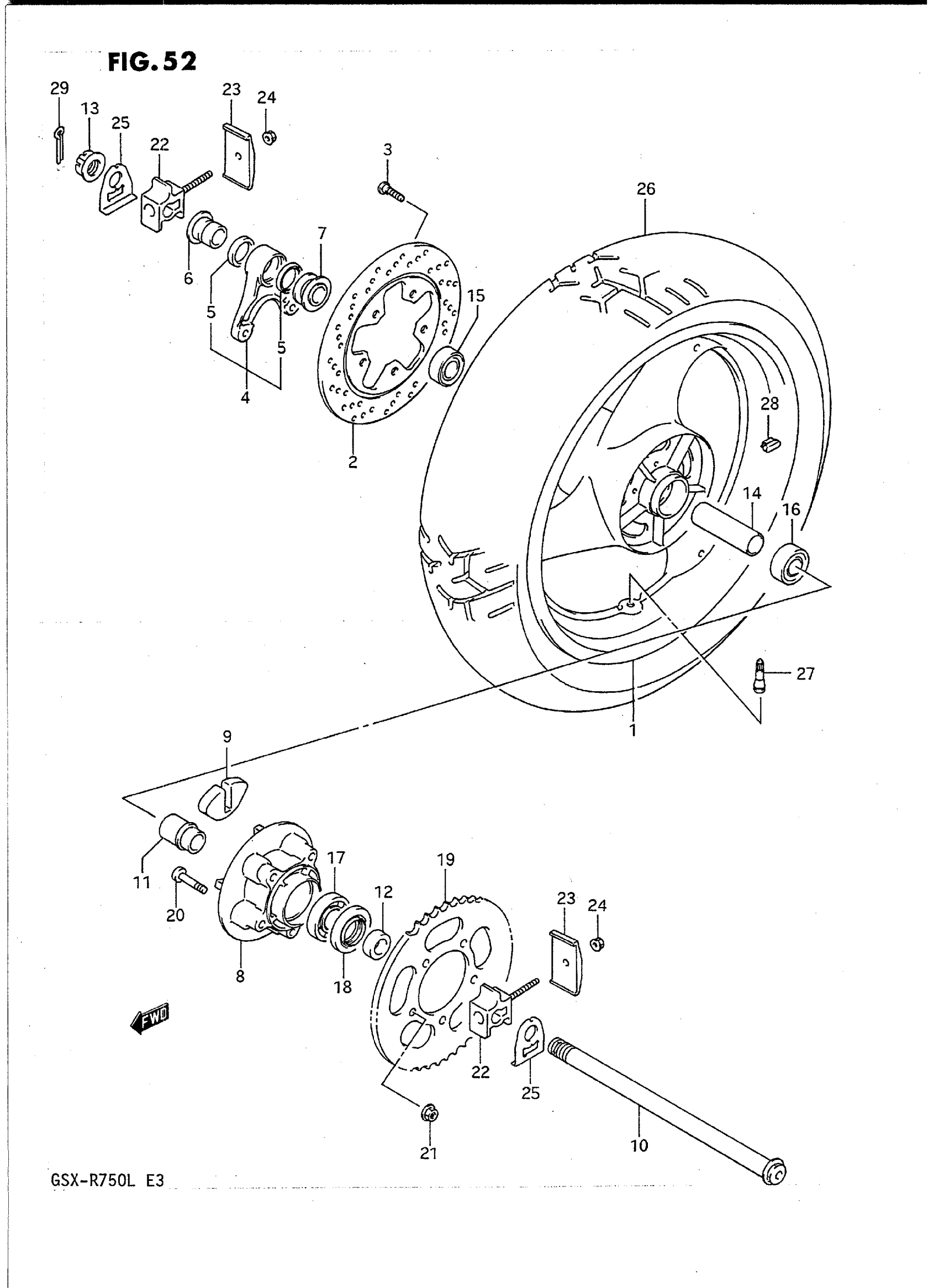

Suzuki GSX-R750L (1990) REAR WHEEL (MODEL J/K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 64111-17C00-28W.

64111-17C02-28W

Unavailable

2

DISC, REAR BRAKE

69211-17C00

Unavailable

3

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

4

BRACKET, REAR CALIPERS | Includes Item(s) 5

69720-17C00

Unavailable

5

OIL SEAL

09285-28002

$6.80

6

SPACER

69412-27A00

Unavailable

7

SPACER, RH

64740-48B00

Unavailable

8

DRUM, SPROCKET

64611-17C01

Unavailable

9

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

10

AXLE, REAR

64711-17C10

Unavailable

11

RETAINER,RR HUB BEARING

64733-27A00

$26.93

12

SPACER, LH

64751-27A00

Unavailable

13

NUT

09141-20004

$29.20

14

SPACER, BEARING

09180-20104

Unavailable

15

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

16

BEARING, LH

09262-20042

$23.28

17

BEARING, DRUM

09262-25073

$25.92

18

SEAL,OIL (35X62X8)

09285-35001

$10.19

19

SPROCKET, REAR (NT:45) This part replaces 64511-17C20.

64511-20C21

$117.33

20

BOLT

09119-10037

$4.32

21

NUT

08319-31107

$2.73

22

ADJUSTER, CHAIN

61410-17C01

Unavailable

23

PLATE, ADJUSTER GUIDE

61421-17C00

Unavailable

24

NUT

08319-31087

$2.32

25

WASHER (ID:20)

61445-17C00

Unavailable

26

TIRE, T/L REAR | MICHELIN,MODEL JEXECUTED LOCALLY

65100-17C00

Unavailable

26

NO DESCRIPTION AVAILABLE | MICHELIN,MODEL KEXECUTED LOCALLY This part replaces 65110-17C30.

65110-40C10

Unavailable

27

VALVE ASSY, WHEEL RIM | MODEL J This part replaces 43130-75150.

43130-78030

$9.25

27

VALVE | MODEL K

43130-24A00

$8.85

28

BALANCER (10G)

55411-00A00

$1.49

28

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

28

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

29

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
