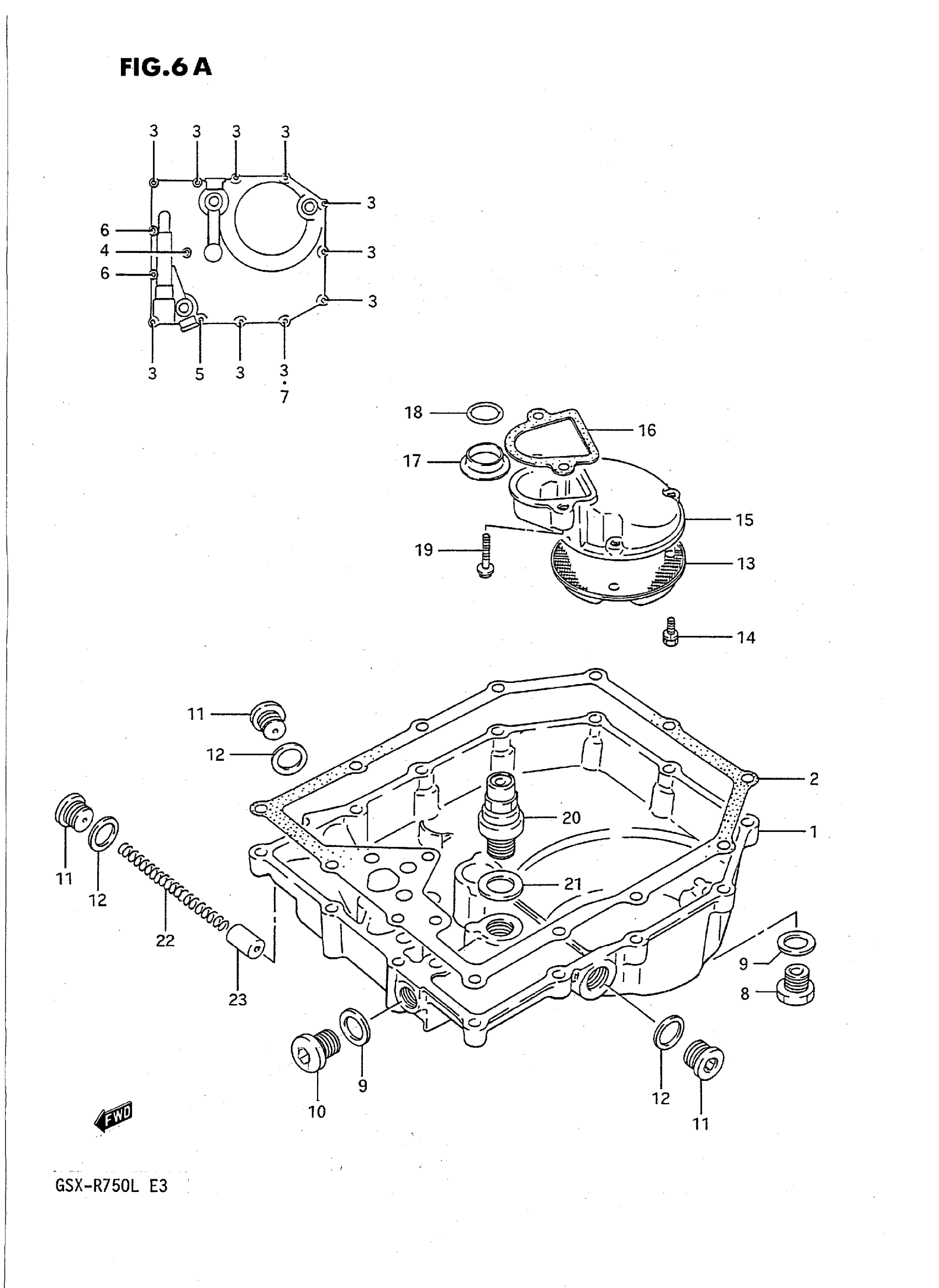

Suzuki GSX-R750L (1990) OIL PAN (MODEL L) Diagram

#

Description
Price

1

PAN, OIL This part replaces 11511-17D00.

11511-17D01

Unavailable

2

O RING, OIL PAN This part replaces 11489-27A00.

11489-27A21

$16.33

3

BOLT This part replaces 07110-06257.

07130-06257

$3.16

4

NO DESCRIPTION AVAILABLE This part replaces 07110-06357.

07130-06357

Unavailable

5

BOLT This part replaces 07110-06408.

07130-06407

$3.68

6

BOLT This part replaces 07110-06458.

07130-0645B

$4.10

7

GASKET

09168-06024

$2.20

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

9

GASKET

09168-14004

$1.83

10

PLUG, CYLINDER HEAD This part replaces 09248-14004.

09248-14010

$5.50

11

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.64

12

GASKET

09168-16002

$1.91

13

STRAINER, ENGINE OIL

16520-09301

$15.42

14

BOLT This part replaces 01137-06128.

01570-06127

$2.50

15

PROTECTOR, STRAINER

16525-06B00

$28.57

16

GASKET, OIL STR PROTECTOR This part replaces 16528-27A02.

16528-27A21

$5.78

17

GASKET, OUTLET

16529-27A01

$2.15

18

O RING

09280-18009

$5.83

19

BOLT This part replaces 01517-06257.

01550-06257

$2.30

20

VALVE ASSY, OIL RELIEF This part replaces 16440-17C00.

16440-17C10

$67.28

21

WASHER

09168-16002

$1.91

22

SPRING

09440-09027

Unavailable

23

PLUNGER, OIL CONTROL

16442-34301

Unavailable
