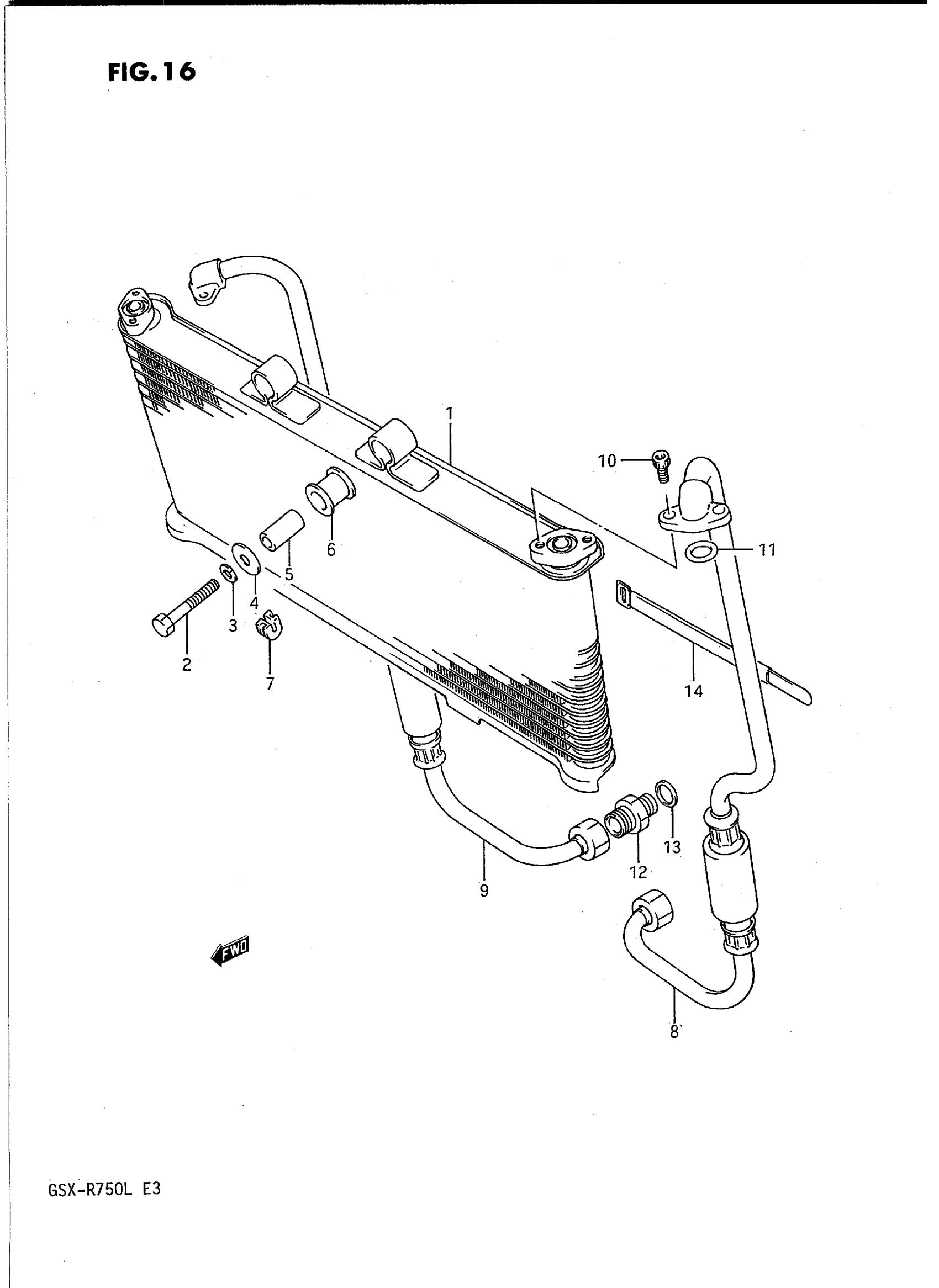

Suzuki GSX-R750L (1990) OIL COOLER (MODEL J/K) Diagram

#

Description

Price

1

COOLER ASSY, OIL

16600-17C03

Unavailable

2

BOLT This part replaces 01107-08405.

01500-0840A

$2.60

3

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

4

WASHER This part replaces 09160-08047.

09160-08130

$2.03

5

SPACER This part replaces 09180-08124.

09180-08304

$6.80

6

CUSHION, NO.1

16629-27A01

$4.52

7

CUSHION, NO.2

16628-27A00

$2.92

8

HOSE, OIL COOLER LH

16460-17C01

Unavailable

9

HOSE, OIL COOLER RH

16470-17C01

Unavailable

10

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

11

O RING

09280-12008

$2.76

12

BOLT, UNION

09360-20002

Unavailable

13

GASKET (16X22X2)

09168-16002

$1.91

14

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable
