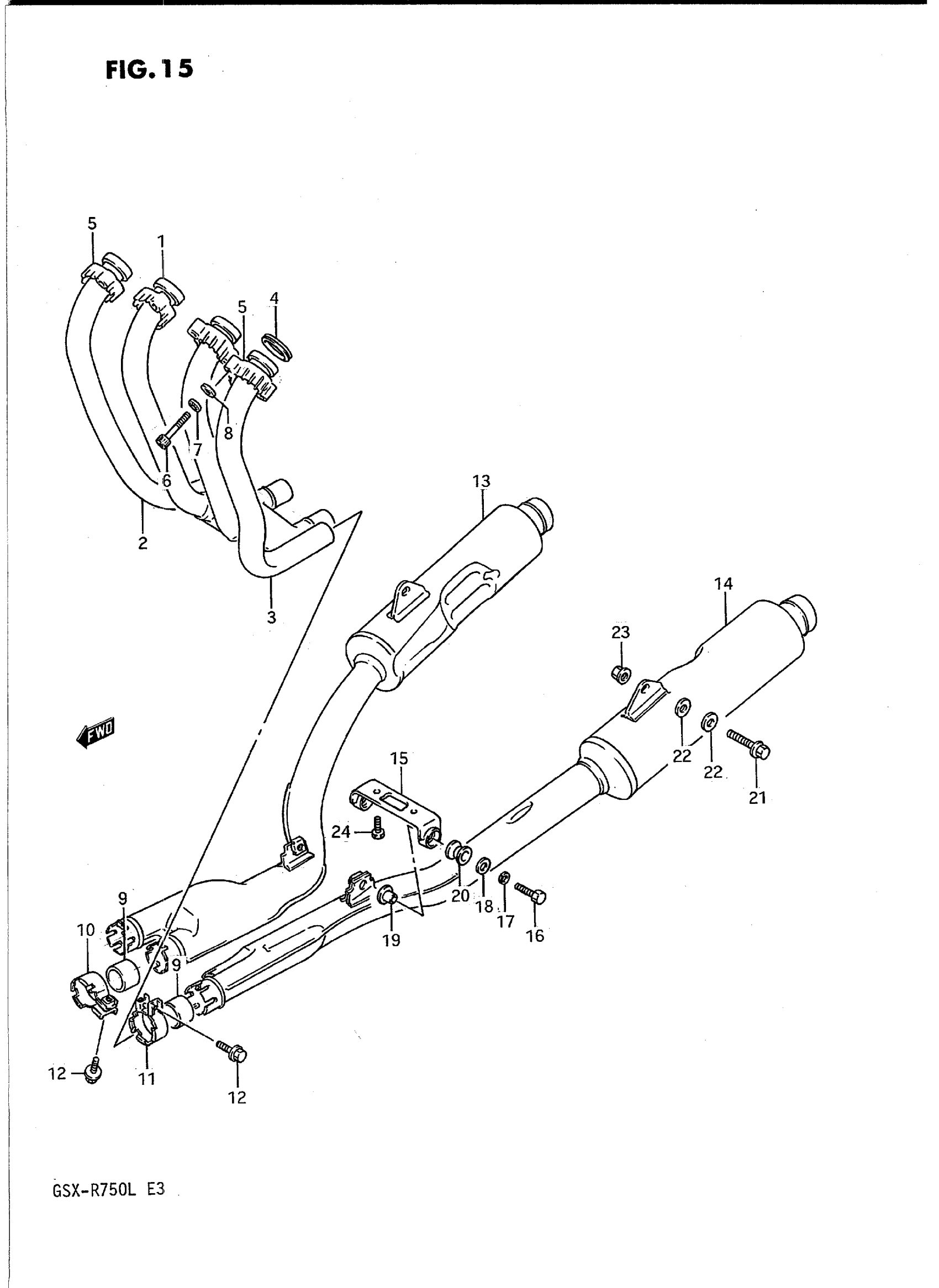

Suzuki GSX-R750L (1990) MUFFLER (MODEL J/K) Diagram

#

Description
Price

1

EXHAUST ASSY, CENTER

14100-17C02-H01

Unavailable

2

PIPE, EXHAUST RH

14150-17C01

Unavailable

3

PIPE, EXHAUST LH

14160-17C01

Unavailable

4

.GASKET,EXHAUST | MODEL J This part replaces 14181-17C00.

14181-18C00

$7.22

4

.GASKET,EXHAUST | MODEL K

14181-18C00

$7.22

5

CLAMP, EXHAUST PIPE

14182-31302

Unavailable

6

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

7

LOCK WASHER

09164-08015

$3.21

8

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

9

CONNECTOR, MUFFLER

14771-17C00

Unavailable

10

CLAMP, MUFFLER CONNECTOR RH

14459-11540

Unavailable

11

CLAMP, MUFFLER CONNECTOR LH

14469-11540

Unavailable

12

BOLT This part replaces 01517-08254.

01550-0825A

$2.32

13

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14310-17C30-H01.

14310-17C31-H01

Unavailable

13

MUFFLER, RH | MODEL K

14305-18C30-H01

Unavailable

14

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14340-17C30-H01.

14340-17C31-H01

Unavailable

14

MUFFLER, LH | MODEL K

14306-18C30-H01

Unavailable

15

DAMPER, MUFFLER SUPPORT

14770-17C10

Unavailable

16

BOLT This part replaces 01107-08355.

01500-0835B

$3.04

17

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

18

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

19

SPACER

09180-08151

$5.18

20

CUSHION

09320-12043

$7.98

21

BOLT (10X38)

09103-10206

Unavailable

22

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10066.

09160-10093

$2.35

23

NUT This part replaces 08316-16105.

08316-1010B

$2.66

24

BOLT This part replaces 09100-08240.

09100-08299

$4.17
