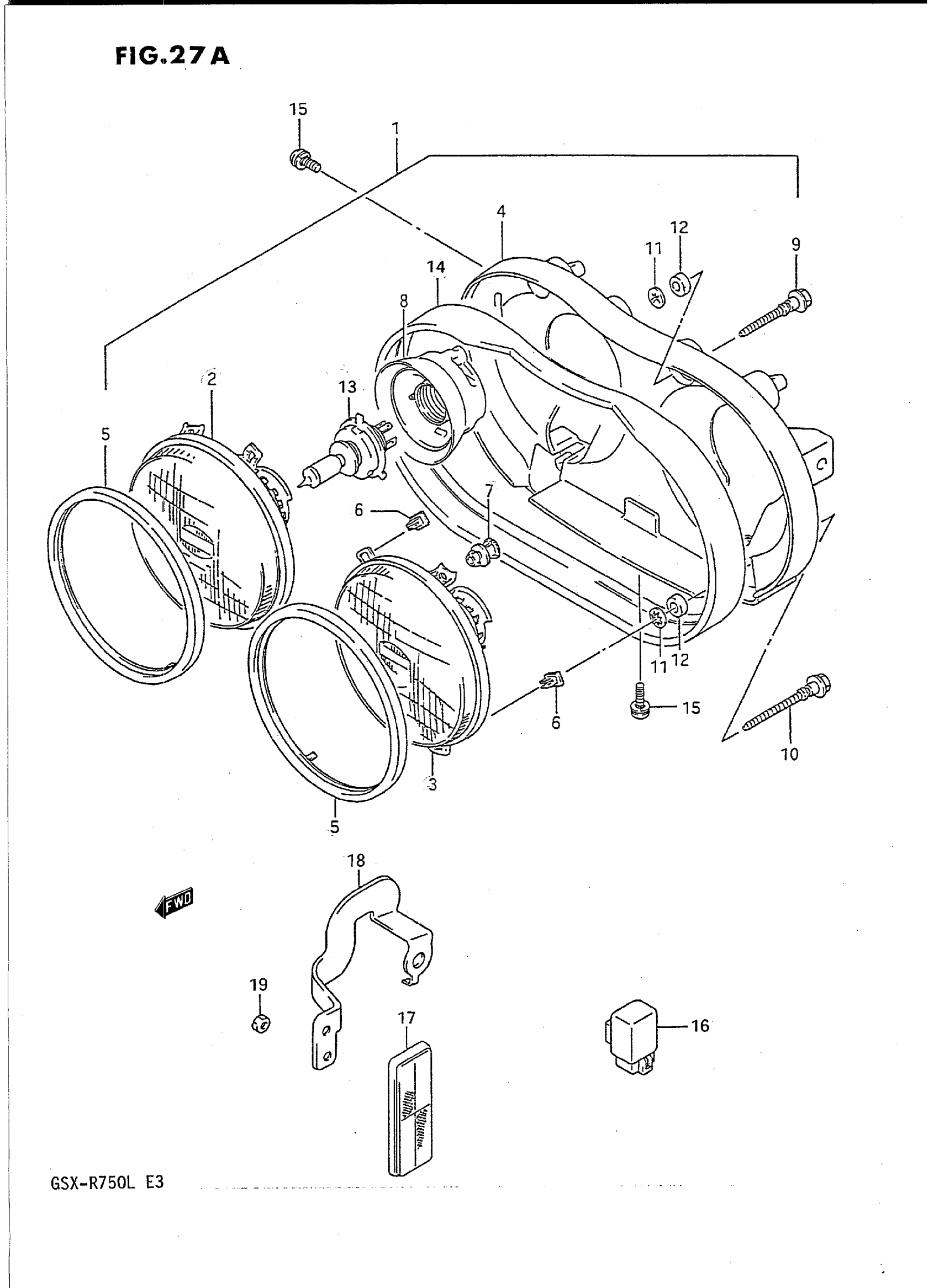

Suzuki GSX-R750L (1990) HEADLAMP (MODEL L) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 12 This part replaces 35100-40C30-999.

35100-40C31-999

Unavailable

2

UNIT, HEADLAMP RH

35121-17C30

Unavailable

3

UNIT, HEADLAMP LH

35321-17C30

Unavailable

4

HOUSING

35240-05C02

Unavailable

5

RING, RETAINING

35127-04A00

Unavailable

6

.NUT ADJUSTING This part replaces 35152-05C00.

35135-12E20

$3.72

7

BEARING, SPHERICAL

35162-04A00

$1.85

8

COVER, SOCKET

35173-20A01

$18.02

9

SCREW, ADJUSTING This part replaces 35151-05C00.

35153-05C00

Unavailable

10

SCREW, ADJUSTING

35153-05C00

Unavailable

11

NUT This part replaces 35157-32B00.

09148-05012

$1.75

12

BUSHING

35167-05C00

Unavailable

13

BULB (12V,60/55W)

09471-12060

$25.15

14

GASKET

35242-17C13

Unavailable

15

SCREW This part replaces 02112-36165.

02112-3616A

$1.97

16

RELAY ASSY, SIDE STAND This part replaces 38640-17C00.

38740-24X50

$45.20

17

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

18

BRACKET, RH

35956-40C01

Unavailable

18

BRACKET, LH

35957-40C01

Unavailable

19

NUT This part replaces 08361-15055.

08361-1505B

$2.38
