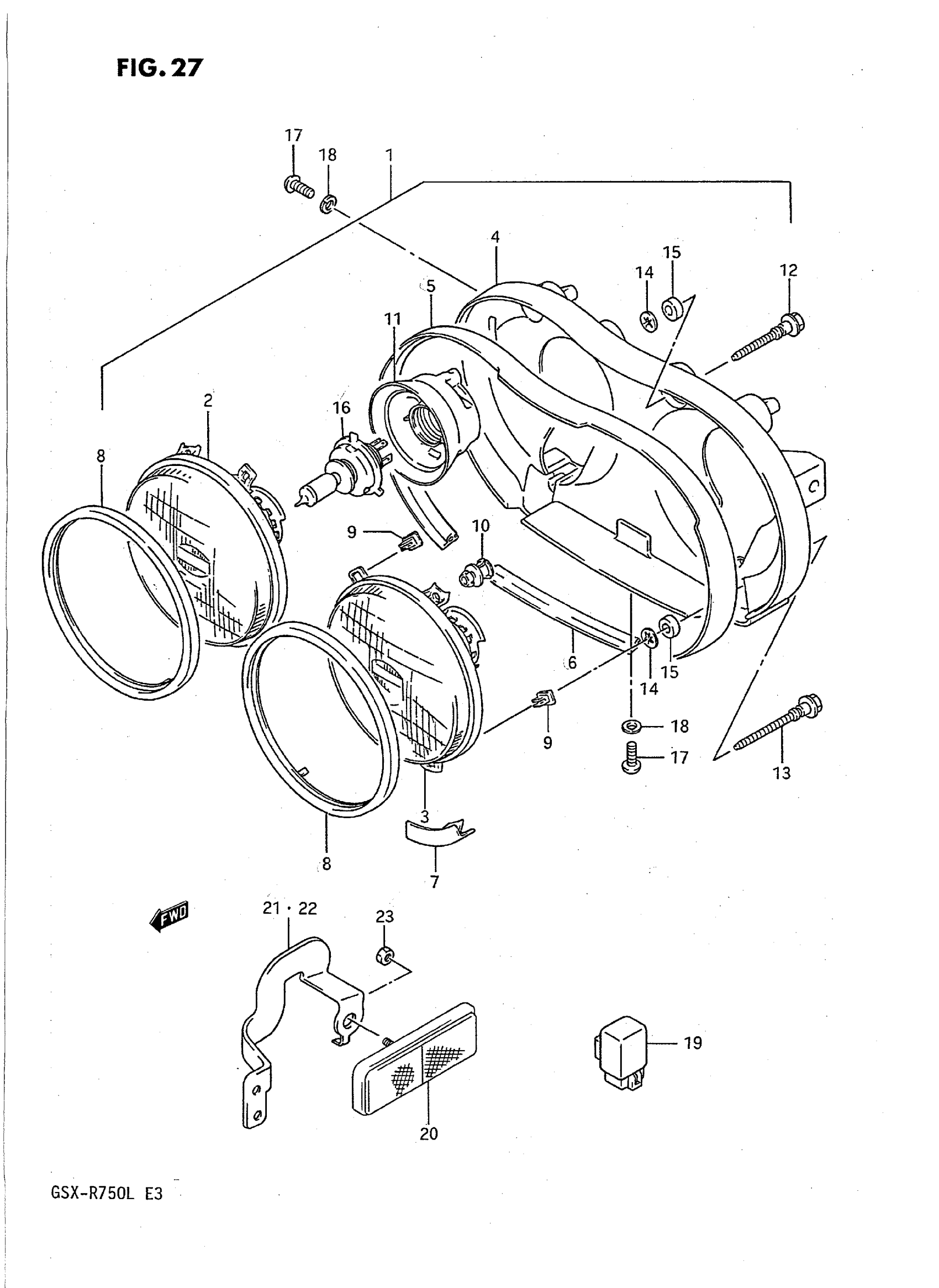

Suzuki GSX-R750L (1990) HEADLAMP (MODEL J/K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 35100-17C30-999.

35100-40C31-999

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K; Includes Item(s) 2 - 15 This part replaces 35100-17C31-999.

35100-40C31-999

Unavailable

2

UNIT, HEADLAMP RH

35121-17C30

Unavailable

3

UNIT, HEADLAMP LH

35321-17C30

Unavailable

4

HOUSING

35240-05C02

Unavailable

5

GASKET | L:854->616

35242-17C41

Unavailable

6

GASKET | L:854->170 This part replaces 35242-17C40.

35242-17C41

Unavailable

7

CUSHION

35242-17C30

Unavailable

8

RING, RETAINING

35127-04A00

Unavailable

9

.NUT ADJUSTING This part replaces 35152-05C00.

35135-12E20

$3.72

10

BEARING, SPHERICAL

35162-04A00

$1.85

11

COVER, SOCKET

35173-20A01

$18.02

12

SCREW, ADJUSTING This part replaces 35151-05C00.

35153-05C00

Unavailable

13

SCREW, ADJUSTING

35153-05C00

Unavailable

14

NUT This part replaces 35157-32B00.

09148-05012

$1.75

15

BUSHING

35167-05C00

Unavailable

16

BULB (12V,60/55W)

09471-12060

$25.15

17

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

18

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

19

RELAY ASSY, SIDE STAND This part replaces 38640-17C00.

38740-24X50

$45.20

20

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$17.83

21

BRACKET, RH | MODEL J This part replaces 35956-17C00.

35956-17C01

Unavailable

21

BRACKET, RH | MODEL K

35956-17C01

Unavailable

22

BRACKET, LH | MODEL J This part replaces 35957-17C00.

35957-17C01

Unavailable

22

BRACKET, LH | MODEL K

35957-17C01

Unavailable

23

NUT This part replaces 08361-15055.

08361-1505B

$2.38
