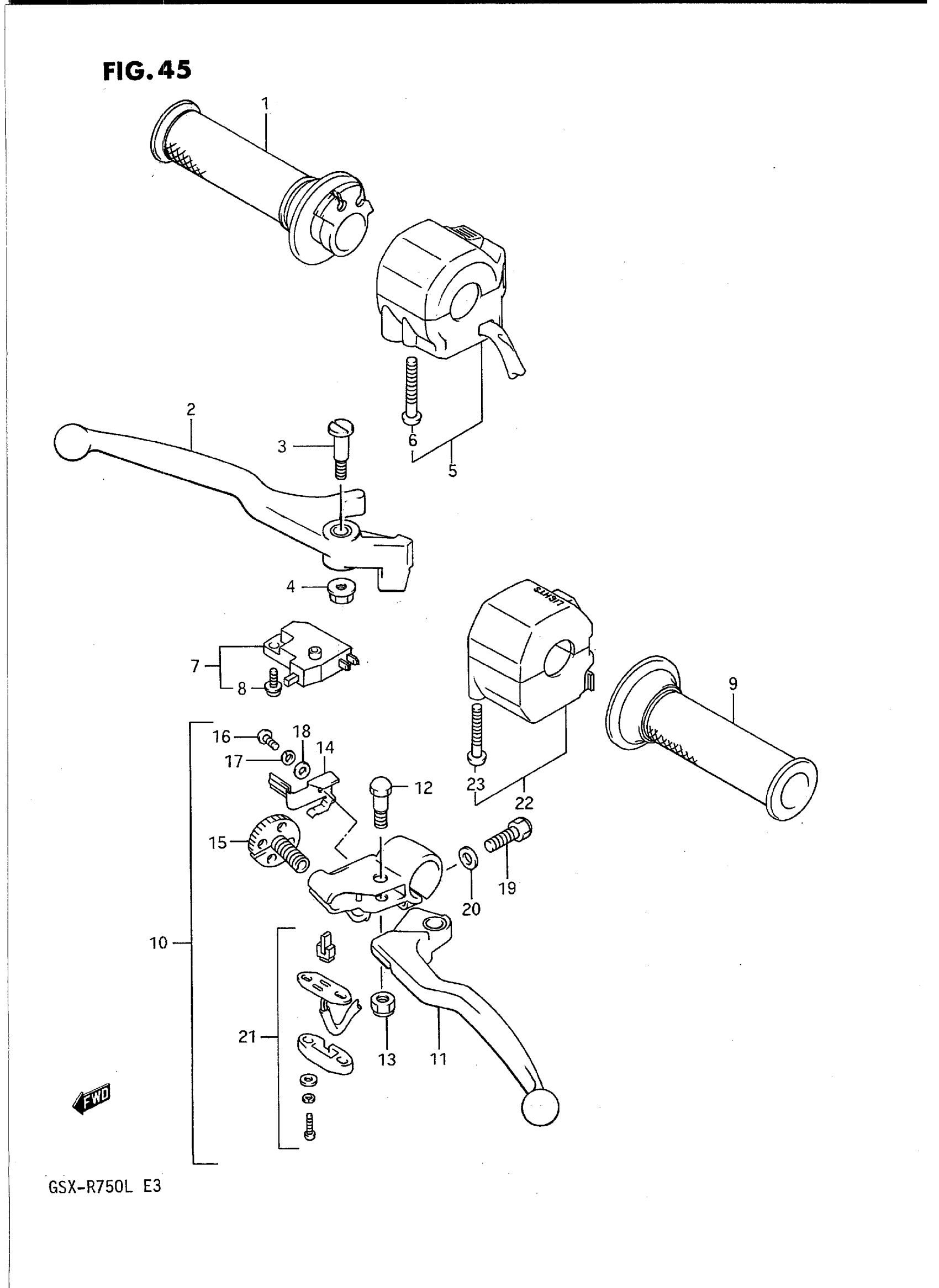

Suzuki GSX-R750L (1990) HANDLE SWITCH (MODEL J) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-05C01

Unavailable

2

LEVER, BRAKE

57420-17C00

$30.33

3

BOLT

57431-17C00

$7.11

4

NUT This part replaces 08316-16064.

08316-1006B

$2.50

5

SWITCH ASSY, RH | Includes Item(s) 6 This part replaces 37200-17C31.

37200-45C22

Unavailable

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

7

SWITCH ASSY,FR BRAKE | Includes Item(s) 8 This part replaces 57460-17C00.

57460-14J02

$38.46

8

SCREW

57465-17C00

$2.19

9

GRIP, LH

57211-05C00

Unavailable

10

LEVER ASSY,CLUT | Includes Item(s) 11 - 21 This part replaces 57500-17C01.

57500-17C02

Unavailable

11

LEVER This part replaces 57620-27A30.

57620-27A31

$22.77

12

BOLT

57431-49110

$6.31

13

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

14

ADJUSTER, CABLE

57644-20A02

Unavailable

15

.NUT, CABLE ADJUSTER This part replaces 57641-20A03.

57641-33E21

$35.94

16

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

17

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

18

WASHER This part replaces 08322-21047.

08322-01047

$1.86

19

BOLT

01204-06204

$2.72

20

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

21

SWITCH, CLUTCH

57560-17C00

Unavailable

22

SWITCH ASSY,HAN | Includes Item(s) 23 This part replaces 37400-17C11.

37400-06B20

$161.35

23

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26
