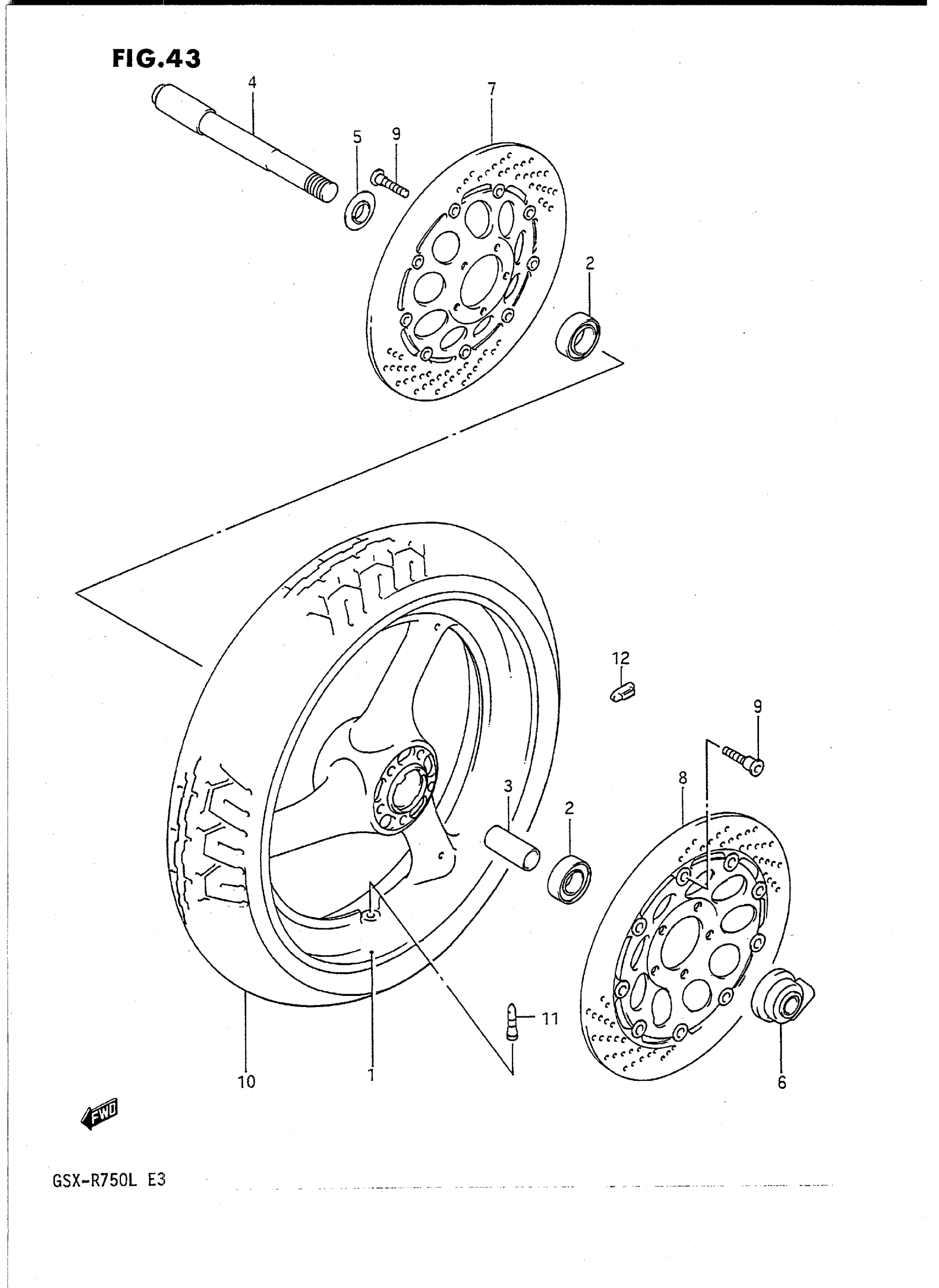

Suzuki GSX-R750L (1990) FRONT WHEEL (MODEL J/K) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54111-17C00-28W.

54111-17C10-28W

Unavailable

2

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

3

SPACER

09180-20103

$26.25

4

AXLE, FRONT This part replaces 54711-17C00.

54711-17C10

$143.67

5

SPACER, BEARING RH

54740-17C00

$19.15

6

BOX ASSY, SPEEDOMETER GEAR This part replaces 54600-17C00.

54600-17C01

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 59210-17C00.

59210-17C31

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 59210-17C01.

59210-17C31

Unavailable

8

DISC, FRONT BRAKE LH | MODEL J This part replaces 59220-17C00.

59220-17C01

Unavailable

8

DISC, FRONT BRAKE LH | MODEL K

59220-17C01

Unavailable

9

BOLT (8X33) This part replaces 09106-08062.

09106-08148

$4.80

10

TIRE, FRONT (120/70 VR17-V250 | MODEL JEXECUTED LOCALLY

55100-17C00

Unavailable

10

NO DESCRIPTION AVAILABLE | MODEL KEXECUTED LOCALLY This part replaces 55110-17C20.

55110-40C10

Unavailable

11

VALVE ASSY, WHEEL RIM | MODEL J This part replaces 43130-75150.

43130-78030

$9.25

11

VALVE | MODEL K

43130-24A00

$8.85

12

BALANCER (10G)

55411-00A00

$1.49

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

12

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable
