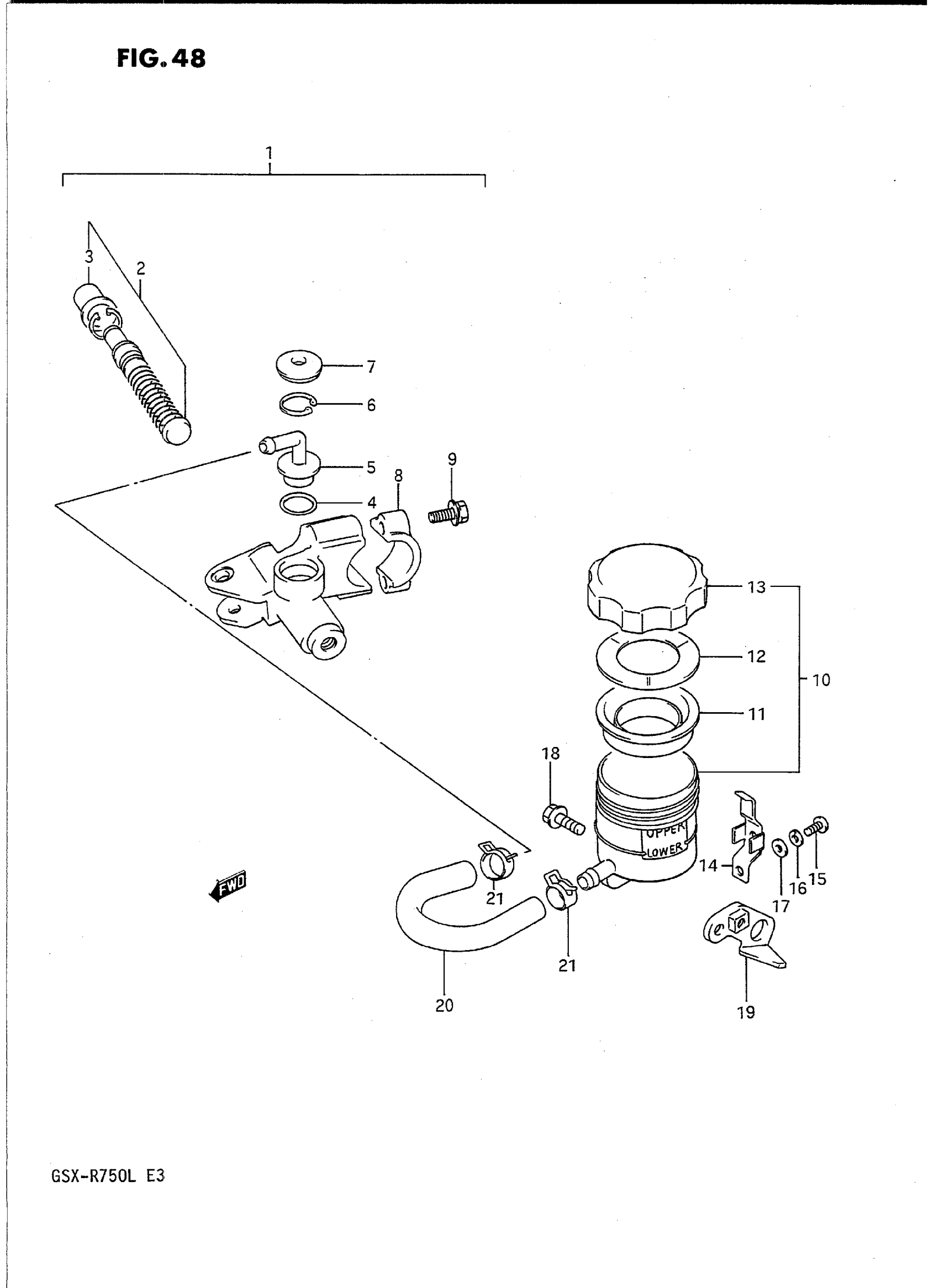

Suzuki GSX-R750L (1990) FRONT MASTER CYLINDER (MODEL J/K) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9

59600-17C00

Unavailable

2

PISTON/CUP SET

59600-45850

$39.48

3

BOOT

59666-44300

$5.80

4

O RING

69686-34200

$2.93

5

CONNECTOR

59672-17C00

$9.31

6

CIRCLIP

69674-00B20

$3.97

7

COVER, DUST

59673-17C00

$8.65

8

.HOLDER

59671-36500

$12.21

9

BOLT HOLDER SET This part replaces 59675-17C00.

59675-19C00

$4.02

10

TANK ASSY, RESERVOIR | Includes Item(s) 11 - 13 This part replaces 59740-17C00.

59740-07D00

$60.40

11

DIAPHRAGM

59667-18441

$10.28

12

PLATE

59668-18441

$4.52

13

CAP This part replaces 59669-20A01.

59669-07D00

$31.72

14

PLATE, TANK CAP

59743-17C00

$9.31

15

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

16

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

17

WASHER This part replaces 08322-21047.

08322-01047

$1.86

18

BOLT This part replaces 01517-06167.

01550-06167

$2.30

19

BRACKET, TANK

59750-17C00

Unavailable

20

HOSE, TANK

59731-17C00

Unavailable

21

CLAMP, TANK

59735-17C00

$4.93
