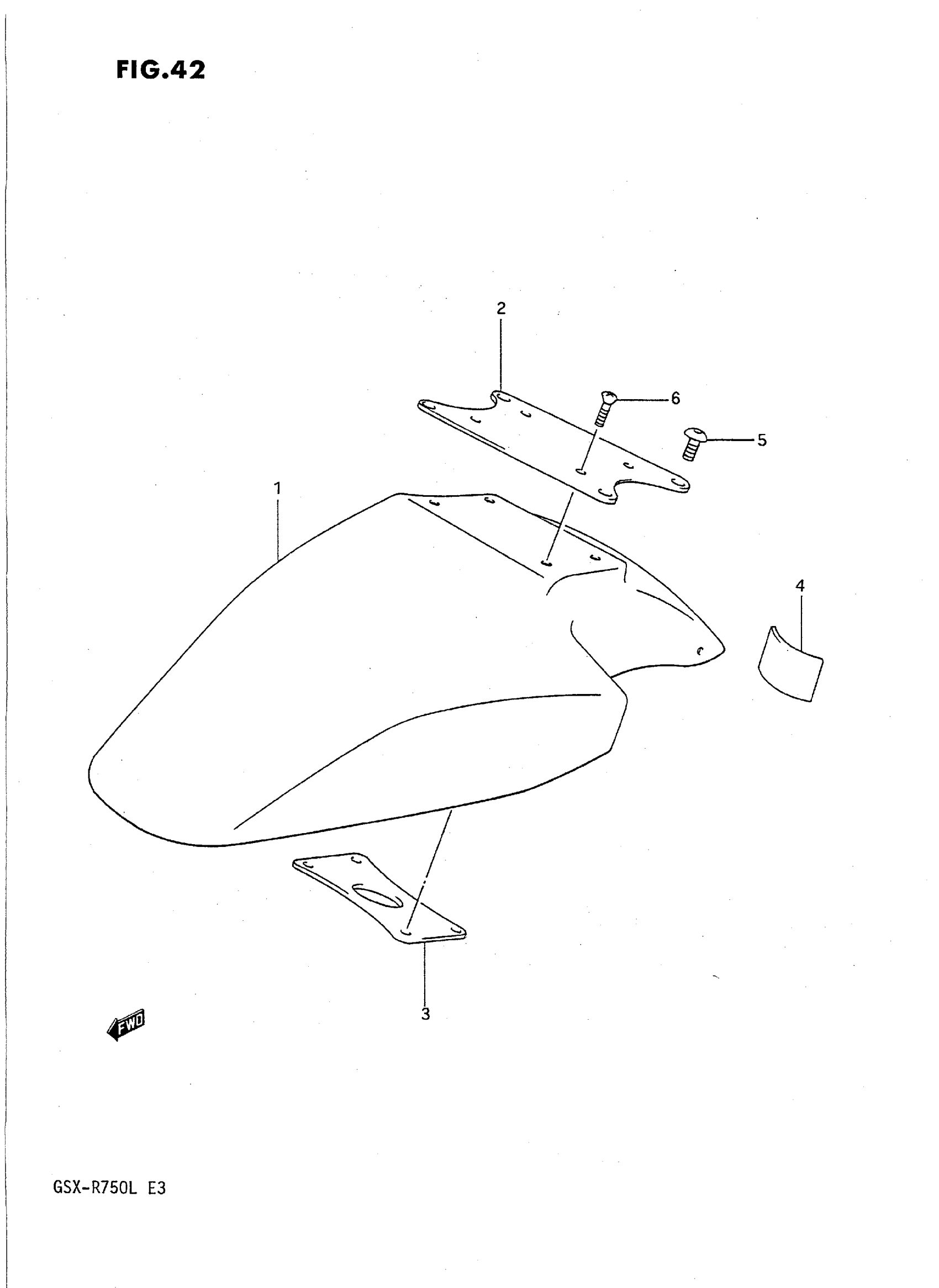

Suzuki GSX-R750L (1990) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT (BLUE) | FOR 9SRTO 53111-17C21-33N This part replaces 53111-17C00-33N.

53111-17C21-0NE

Unavailable

1

FENDER, FRONT (RED) | FOR 7JJTO 53111-17C21-22P This part replaces 53111-17C00-22P.

53111-17C21-22P

Unavailable

1

FENDER, FRONT (BLUE) | MODEL J/K,FOR 9SR This part replaces 53111-17C21-33N.

53111-17C21-0NE

Unavailable

1

FENDER, FRONT (RED) | MODEL J/K,FOR 7JJ

53111-17C21-22P

Unavailable

1

FENDER, FRONT (BLUE) | MODEL L,FOR 3SL

53111-17C21-0NG

Unavailable

1

FENDER, FRONT (RED) | MODEL L,FOR 3RZ

53111-17C21-28V

Unavailable

2

BRACE, FRONT FENDER OUTER

53114-17C02

Unavailable

3

BRACE, FRONT FENDER INNER

53210-17C00

$12.82

4

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.12

5

SCREW

09139-08007

$3.70

6

SCREW, FENDER & BRACE

09139-05032

$1.89
