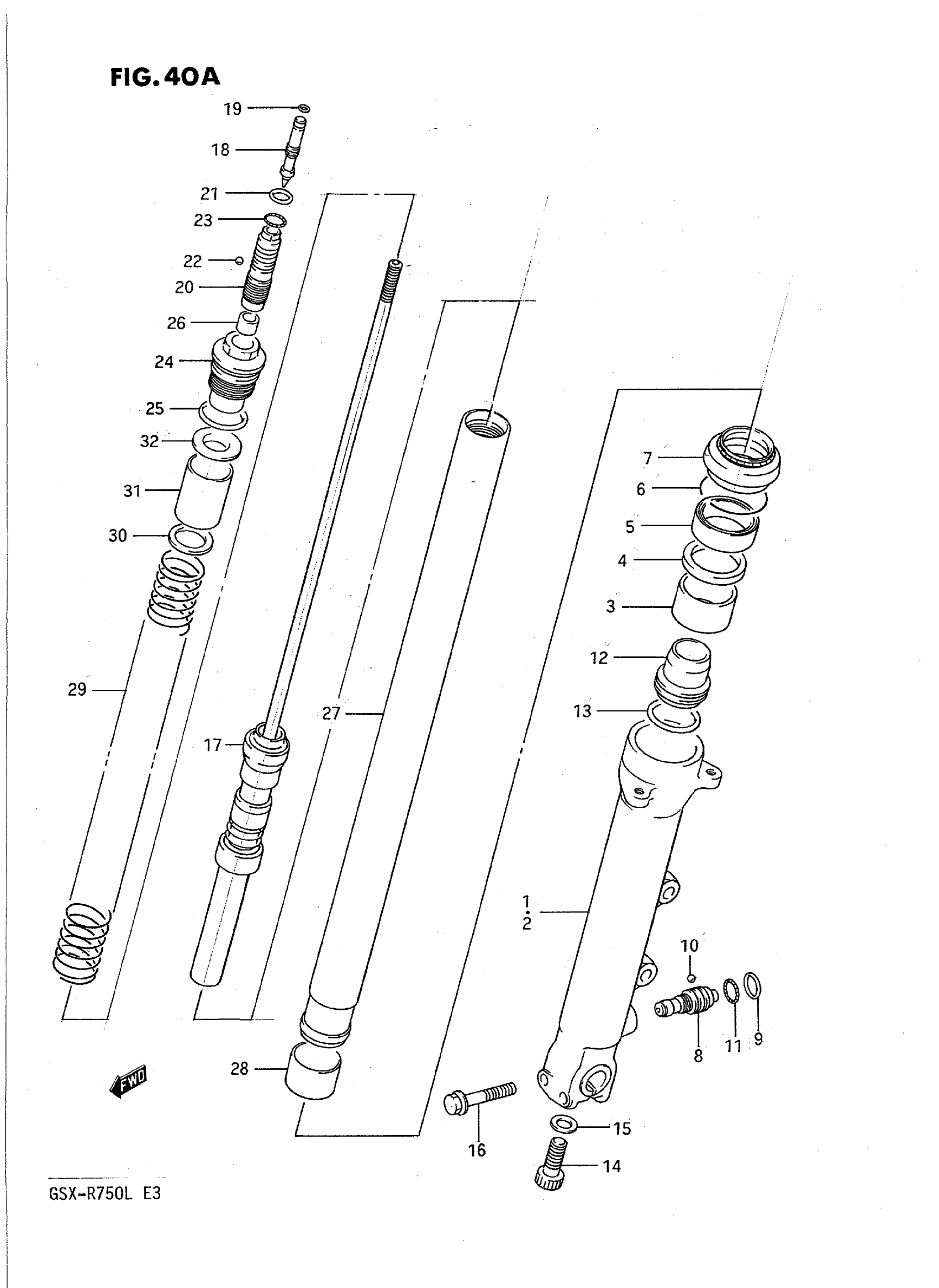

Suzuki GSX-R750L (1990) FRONT DAMPER (MODEL K/L) Diagram

#

Description
Price

DAMPER ASSY, RH | MODEL K

51103-17C30

Unavailable

DAMPER ASSY, RH | MODEL L

51103-17D20

Unavailable

DAMPER ASSY, LH | MODEL K

51104-17C30

Unavailable

DAMPER ASSY, LH | MODEL L; Includes Item(s) 1 - 32

51104-17D20

Unavailable

1

TUBE, OUTER RH

51130-17C00

Unavailable

2

TUBE, OUTER LH | MODEL K This part replaces 51140-17C00.

51140-17D20

Unavailable

2

TUBE, OUTER LH | MODEL L

51140-17D20

Unavailable

3

BUSH, GUIDE This part replaces 51152-17C00.

51152-07D00

Unavailable

4

.SPACER, SEAL

51168-17C00

$6.28

5

SEAL, OIL This part replaces 51153-17C00.

51153-14D00

$22.96

6

RING, STOPPER

51556-38B00

$7.22

7

SEAL, DUST This part replaces 51571-17C00.

51173-29E00

$26.58

8

PIECE, ADJUSTER LOWER This part replaces 51830-17C00.

51830-07D00

Unavailable

9

O RING (D:2.5,ID:13.8) This part replaces 51834-17C00.

09280-14011

$4.77

10

BALL

51835-17C00

$3.28

11

EXPANDER

51836-17C00

Unavailable

12

PIECE, OIL LOCK | MODEL K This part replaces 51195-17C30.

51195-17D20

Unavailable

12

PIECE, OIL LOCK | MODEL L

51195-17D20

Unavailable

13

O RING

51117-17C10

Unavailable

14

BOLT

51147-17C00

$22.65

15

WASHER (10X15X1.5)

09161-10009

$1.84

16

BOLT This part replaces 51166-17C00.

07130-0850A

$4.17

17

DAMPER | MODEL K

52110-17C30

Unavailable

17

DAMPER | MODEL L

52110-17D20

Unavailable

18

PIECE, ADJUSTER

51821-17C00

Unavailable

19

O RING This part replaces 51824-17C00.

09280-03002

$1.49

20

ADJUSTER, SPRING

51828-17C00

Unavailable

21

O RING (D:2.5,ID:13.8) This part replaces 51834-17C00.

09280-14011

$4.77

22

BALL

51835-17C00

$3.28

23

EXPANDER

51836-17C00

Unavailable

24

BOLT, FORK

51189-17C00

Unavailable

25

O RING

51117-17C00

$5.95

26

NUT

51827-17C00

Unavailable

27

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 51110-17C30.

51110-07D00

Unavailable

27

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 51110-17D20.

51110-07D00

Unavailable

28

.BUSH,SLIDE This part replaces 51121-17C00.

51121-07J00

$21.58

29

SPRING | MODEL K

51171-17C30

Unavailable

29

SPRING | MODEL L This part replaces 51171-17D20.

51171-17C00

Unavailable

30

SEAT, SPRING LOWER

51186-17C00

$7.53

31

COLLAR, SPRING | MODEL K

51176-17C00

Unavailable

31

COLLAR, SPRING | MODEL L

51176-12C10

$13.92

32

SEAT, SPRING UPPER

51172-17C00

$14.20
