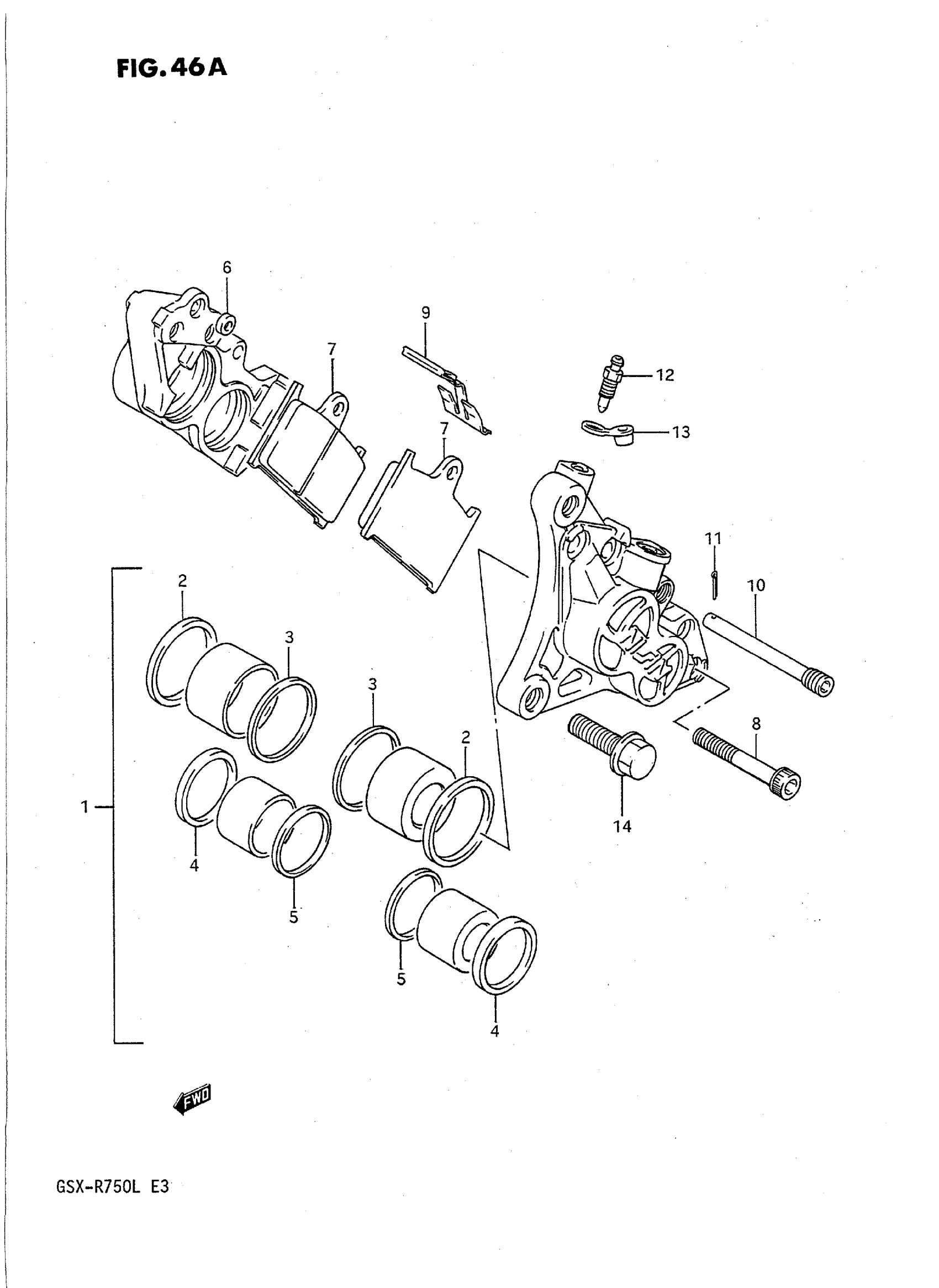

Suzuki GSX-R750L (1990) FRONT CALIPERS (MODEL L) Diagram

#

Description
Price

CALIPER ASSY,FR This part replaces 59100-33C00.

59100-17E10-999

$417.75

CALIPER ASSY, F | Includes Item(s) 1 - 13 This part replaces 59300-33C00.

59300-17E10-999

Unavailable

1

PISTON SET

59100-17830

Unavailable

2

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

$8.52

3

BOOT

59108-13A00

Unavailable

4

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.61

5

BOOT

59108-17C00

Unavailable

6

SEAL

69107-17C00

$7.93

7

PAD SET This part replaces 59130-33C00.

59100-33830

Unavailable

8

BOLT, HOUSING

59145-17C00

Unavailable

9

SPRING

59315-17C00

$13.67

10

PIN

59345-33C00

$30.22

11

PIN This part replaces 04111-16158.

04111-1620A

$1.49

12

BLEEDER

59121-01A00

$8.73

13

CAP

59122-01A00

$4.34

14

BOLT This part replaces 01517-10305.

01550-1030A

$3.55
