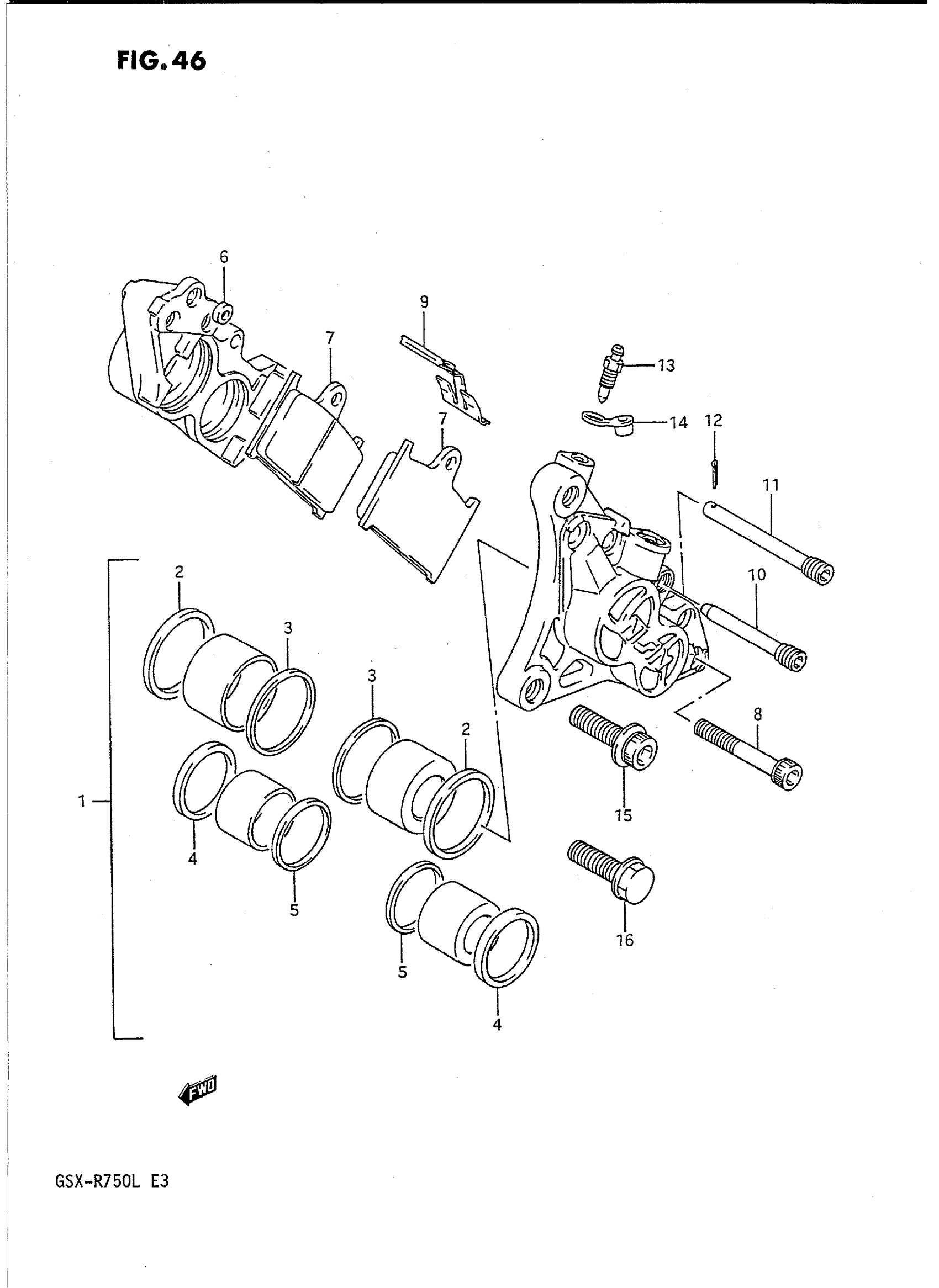

Suzuki GSX-R750L (1990) FRONT CALIPERS (MODEL J/K) Diagram

#

Description
Price

CALIPER ASSY,FR | TO 59100-17C01 This part replaces 59100-17C00.

59100-17E10-999

Unavailable

CALIPER ASSY, LH | TO 59300-17C01 This part replaces 59300-17C00.

59300-17C01

Unavailable

CALIPER ASSY,FR This part replaces 59100-17C01.

59100-17E10-999

Unavailable

CALIPER ASSY, LH | Includes Item(s) 1 - 14

59300-17C01

Unavailable

1

PISTON SET

59100-17830

Unavailable

2

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

$8.02

3

BOOT

59108-13A00

Unavailable

4

SEAL SET, PISTON This part replaces 59107-17C00.

69100-13810

$9.04

5

BOOT

59108-17C00

Unavailable

6

SEAL

69107-17C00

$7.47

7

PAD SET This part replaces 59130-17C00.

59100-33830

Unavailable

8

BOLT, HOUSING

59145-17C00

Unavailable

9

SPRING

59315-17C00

$15.43

10

PIN | FOR 59100-17C00 AND59300-17C00

59345-00B20

$13.38

11

PIN | FOR 59100-17C01 AND59300-17C01

59345-33C00

$34.12

12

PIN | FOR 59345-33C00 This part replaces 04111-16158.

04111-1620A

$0.96

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

BOLT | MODEL J/K This part replaces 07120-10305.

07120-1030B

$5.63

16

BOLT | MODEL K This part replaces 01517-10305.

01550-1030A

$3.25
