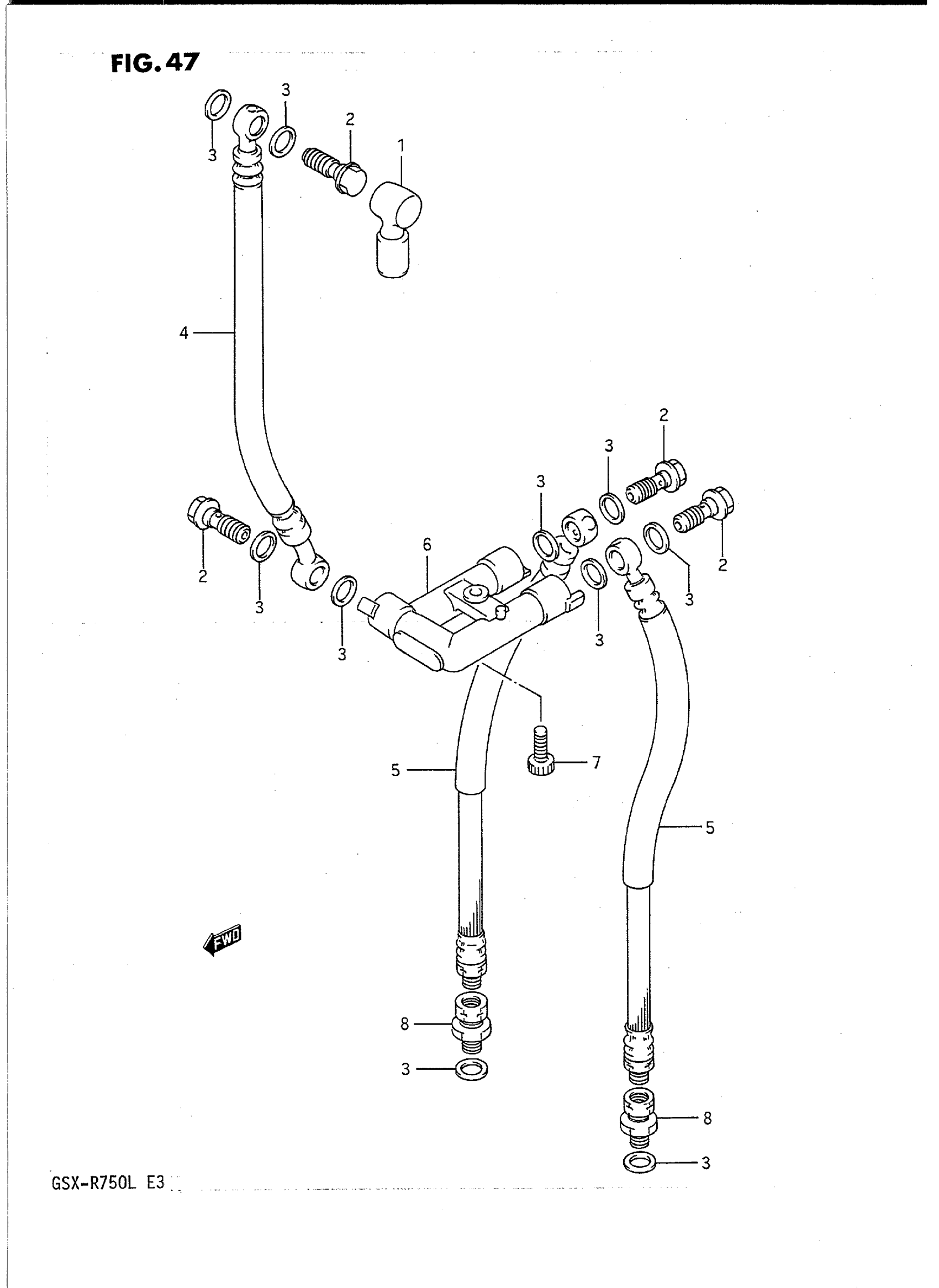

Suzuki GSX-R750L (1990) FRONT BRAKE HOSE (MODEL J/K) Diagram

#

Description

Price

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, FRONT BRAKE NO.1 This part replaces 59480-17C00.

59480-17D00

Unavailable

5

HOSE, FRONT BRAKE NO.2 | MODEL J

59240-17C02

Unavailable

5

HOSE, FRONT BRAKE NO.2 | MODEL K

59240-17C10

Unavailable

6

JOINT, BRAKE HOSE (WHITE) | TO 59491-27A01 (WHITE) This part replaces 59491-27A00.

59491-27A01

Unavailable

7

BOLT This part replaces 07110-06165.

07130-0616B

$2.39

8

ADAPTOR, BRAKE HOSE

59290-43500

$36.17
