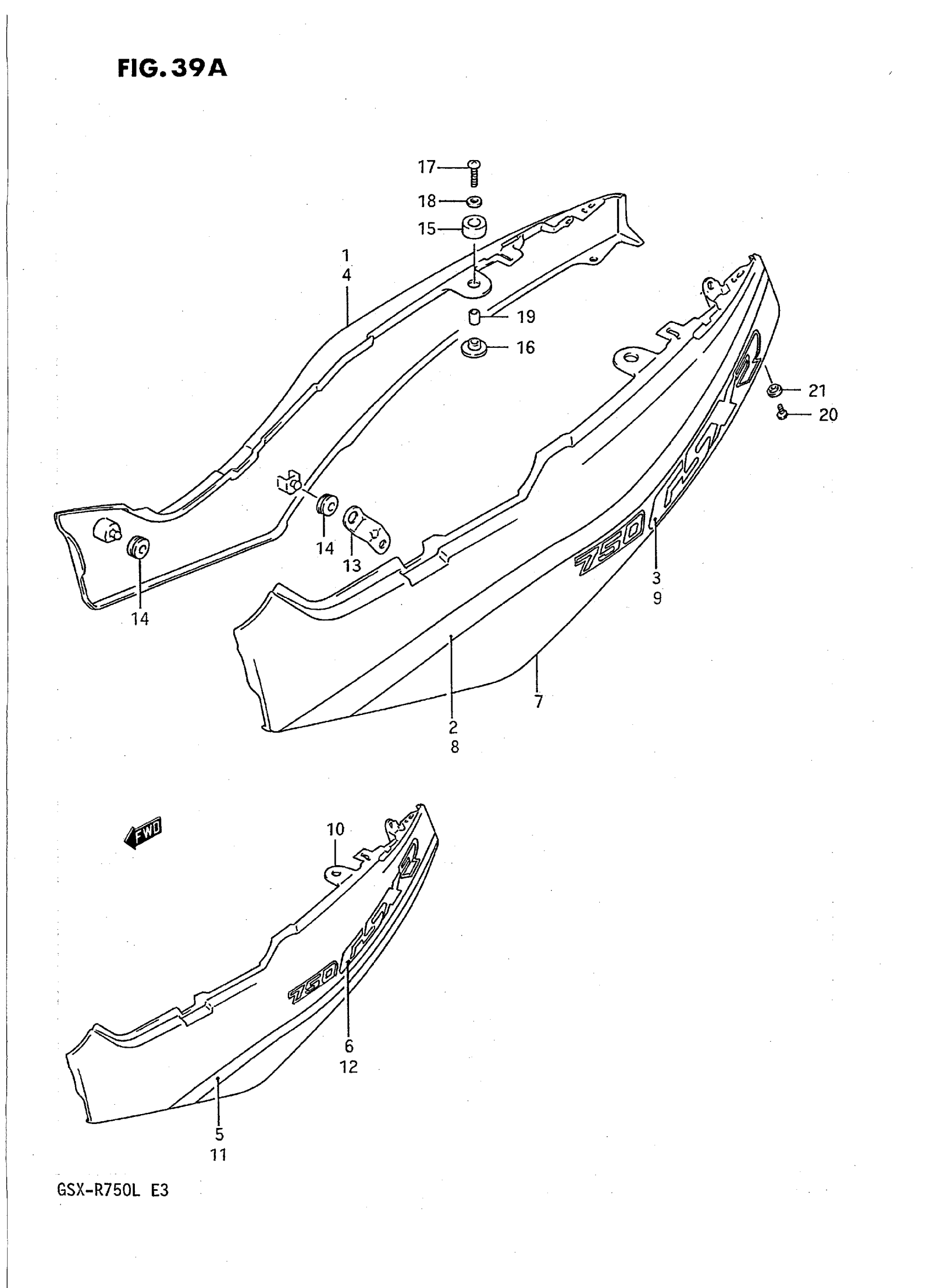

Suzuki GSX-R750L (1990) FRAME COVER (MODEL K) Diagram

#

Description
Price

1

COVER, FRAME RH | FOR 9SR,W/CLEAR

47110-17C70-2FF

Unavailable

1

COVER, FRAME RH | FOR 9SR,N/CLEAR; Includes Item(s) 2 - 3 This part replaces 47110-17C71-2FF.

47110-17C70-2FF

Unavailable

2

TAPE, FRAME COVER RH (WHITE) | FOR 2FF

68135-17C10-22R

Unavailable

3

EMBLEM, RH | FOR 2FF

68131-17C30-2GZ

Unavailable

4

COVER, FRAME RH | FOR 7JJ,W/CLEAR

47110-17C80-7JJ

Unavailable

4

COVER, FRAME RH | FOR 7JJ,N/CLEAR; Includes Item(s) 5 - 6 This part replaces 47110-17C81-7JJ.

47110-17C80-7JJ

Unavailable

5

TAPE SET, FRAME COVER RH | FOR 7JJ

68130-17C10-019

Unavailable

6

EMBLEM, RH | FOR 7JJ

68131-17C30-7JJ

Unavailable

7

COVER, FRAME LH | FOR 9SR,W/CLEAR

47210-17C70-2FF

Unavailable

7

COVER, FRAME LH | FOR 9SR,N/CLEAR; Includes Item(s) 8 - 9 This part replaces 47210-17C71-2FF.

47210-17C70-2FF

Unavailable

8

TAPE, FRAME COVER LH (WHITE) | FOR 2FF

68145-17C10-22R

Unavailable

9

EMBLEM, LH | FOR 2FF

68141-17C30-2GZ

Unavailable

10

COVER, FRAME LH | FOR 7JJ,W/CLEAR

47210-17C80-7JJ

Unavailable

10

COVER, FRAME LH | FOR 7JJ,N/CLEAR; Includes Item(s) 11 - 12 This part replaces 47210-17C81-7JJ.

47210-17C80-7JJ

Unavailable

11

TAPE SET, FRAME COVER LH | FOR 7JJ

68140-17C10-019

Unavailable

12

EMBLEM, LH | FOR 7JJ

68141-17C30-7JJ

Unavailable

13

BRACKET,FRAME C This part replaces 43815-17C11.

43815-17C1V

Unavailable

14

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

15

CUSHION, UPPER

45149-04A00

$3.59

16

CUSHION, LOWER

45326-17C00

$5.09

17

SCREW This part replaces 02142-06305.

02142-0630B

$2.62

18

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

19

SPACER This part replaces 09180-06143.

09180-06286

$2.50

20

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

21

WASHER

09161-05017

$3.18
