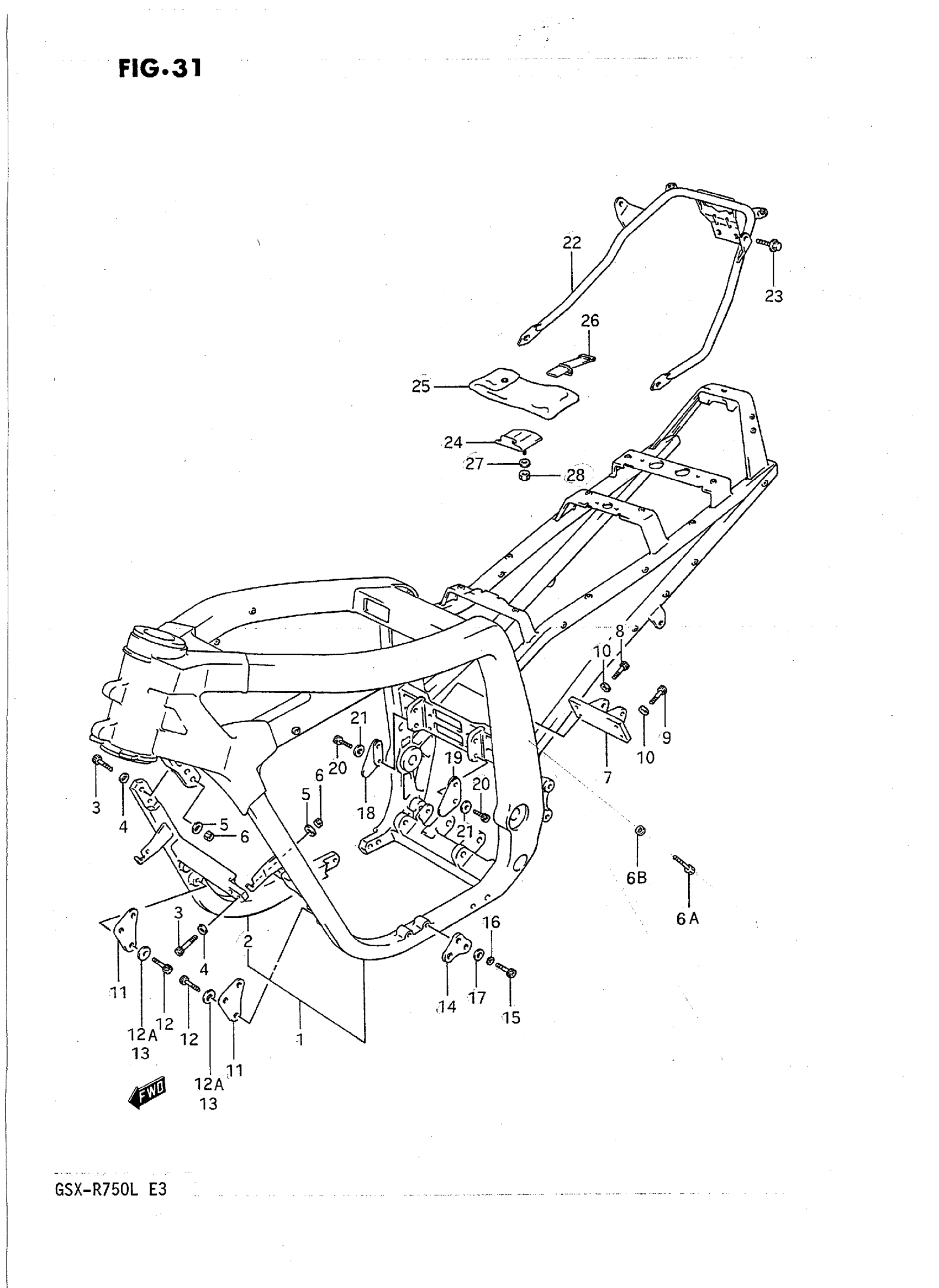

Suzuki GSX-R750L (1990) FRAME Diagram

#

Description
Price

1

FRAME SET | MODEL J This part replaces 41100-17830.

41100-17870

Unavailable

1

FRAME SET | MODEL J,CALIFORNIA ONLY This part replaces 41100-17840.

41100-17870

Unavailable

1

FRAME SET | MODEL K This part replaces 41100-17860.

41100-17870

Unavailable

1

FRAME SET | MODEL K,CALIFORNIA ONLY

41100-17870

Unavailable

1

FRAME SET | MODEL L This part replaces 41101-17810.

41101-17820

Unavailable

1

FRAME SET | MODEL L,CALIFORNIA ONLY; Includes Item(s) 2 - 6B

41101-17820

Unavailable

2

TUBE, FRAME DOWN RH | MODEL J/K

41140-17C00

Unavailable

2

TUBE, FRAME DOWN RH | MODEL L

41140-17D00

Unavailable

3

BOLT, LH This part replaces 07110-10357.

07130-10357

$5.18

4

WASHER This part replaces 09160-10013.

09160-10123

$2.12

5

WASHER This part replaces 09164-10005.

09164-10010

$4.83

6

NUT

09159-10027

$3.10

6A

BOLT | CALIFORNIA ONLY This part replaces 01107-06207.

01500-06207

$2.28

6B

GASKET | CALIFORNIA ONLY

09168-06001

$1.49

7

BRACKET, REAR CUSHION UNIT | MODEL J

41384-17C00

Unavailable

7

BRACKET, REAR CUSHION UNIT | MODEL K/L

41384-17C60

Unavailable

8

BOLT, NO.1

09106-10017

Unavailable

9

BOLT, LH This part replaces 07110-10357.

07130-10357

$5.18

10

WASHER This part replaces 09164-10005.

09164-10010

$4.83

11

PLATE, ENGINE MOUNT NO.1 | MODEL J/K

41911-17C02

Unavailable

11

PLATE, ENGINE MOUNT NO.1 | MODEL L This part replaces 41911-40C00.

41911-41C00

Unavailable

12

BOLT This part replaces 07110-08257.

07130-08257

$3.43

12A

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

13

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

14

PLATE, ENGINE MOUNT NO.2

41921-17C02

Unavailable

15

BOLT This part replaces 07110-08257.

07130-08257

$3.43

16

.LOCK WASHER This part replaces 08321-31087.

08321-01087

$2.13

17

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

18

PLATE, ENGINE MOUNT NO.3 RH | MODEL J/K

41940-17C01

Unavailable

18

PLATE, ENGINE MOUNT NO.3 RH | MODEL L

41940-40C01

Unavailable

19

PLATE, ENGINE MOUNT NO.3 LH | MODEL J/K

41950-17C01

Unavailable

19

PLATE, ENGINE MOUNT NO.3 LH | MODEL L

41950-40C01

Unavailable

20

BOLT | MODEL J/K This part replaces 07110-08257.

07130-08257

$3.43

20

BOLT | MODEL L

09106-08005

Unavailable

21

WASHER (8.5X20X1.6) This part replaces 09160-08010.

09160-08054

$1.49

22

GRIP, REAR | MODEL J/K

43980-17C10

Unavailable

22

GRIP, REAR | MODEL L

43980-17D10

Unavailable

23

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

24

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

25

TOOL ASSY | MODEL J/K This part replaces 09800-20025.

09800-21017

$76.62

25

TOOL ASSY | MODEL L This part replaces 09800-20036.

09800-21006

Unavailable

26

BAND This part replaces 09462-00072.

09462-00094

$3.16

27

WASHER This part replaces 09160-06006.

09160-06084

$1.78

28

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
