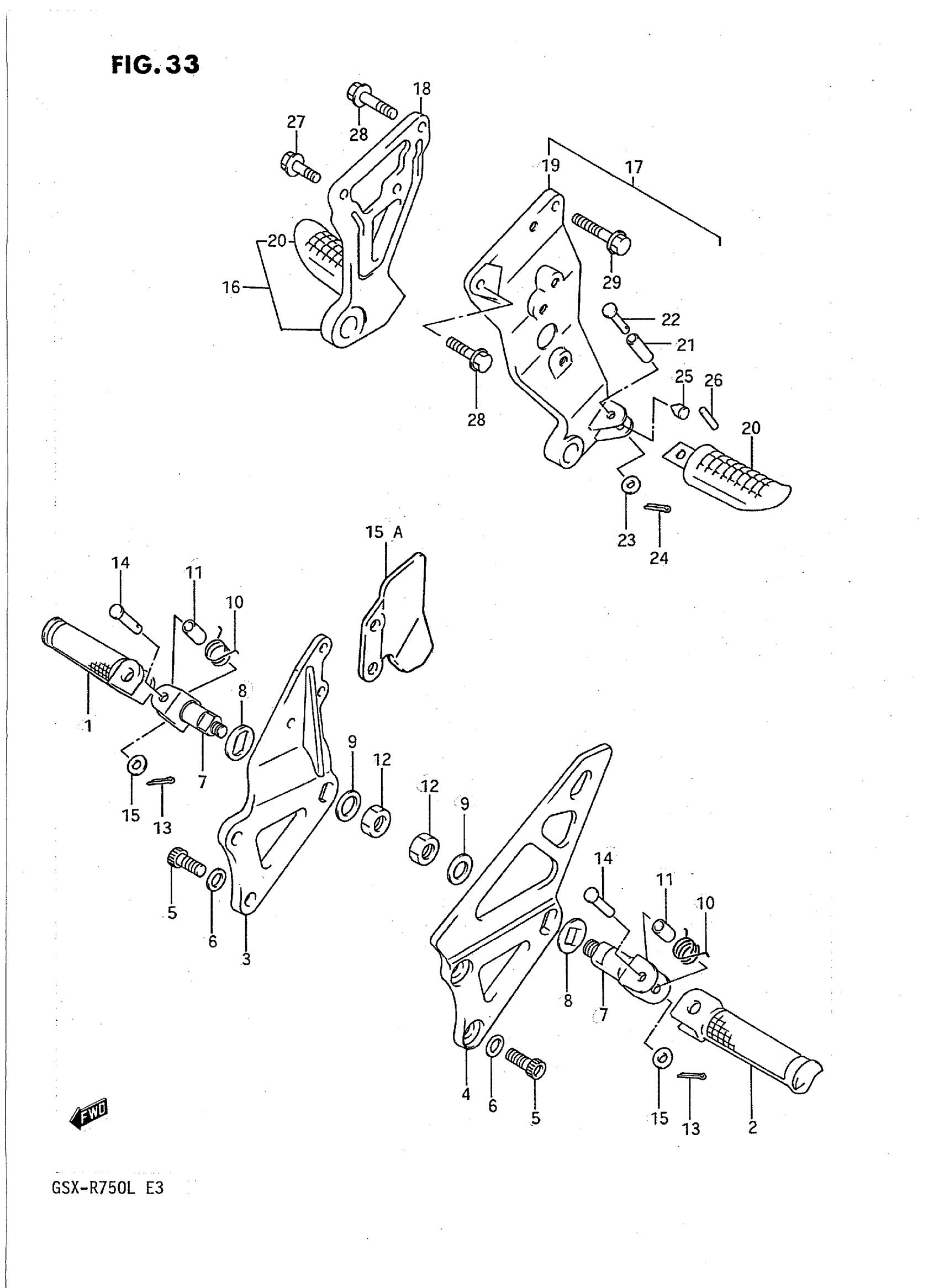

Suzuki GSX-R750L (1990) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43511-17C02

Unavailable

2

BAR, FRONT FOOTREST LH

43521-17C02

Unavailable

3

NO DESCRIPTION AVAILABLE | TO 43510-17C03WITH 43529-40C00 This part replaces 43510-17C01.

43510-17C04

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 43510-17C03.

43510-17C04

Unavailable

3

BRACKET, FOOTREST RH | MODEL L This part replaces 43511-17D00.

43511-17D01

Unavailable

4

BRACKET, FOOTREST LH | TO 43522-17C03WITH 43529-17C10 This part replaces 43522-17C01.

43522-17D01

Unavailable

4

BRACKET, FOOTREST LH This part replaces 43522-17C03.

43522-17D01

Unavailable

4

BRACKET, FOOTREST LH | MODEL L This part replaces 43522-17D00.

43522-17D01

Unavailable

5

BOLT | FOR 43510-17C01FOR 43522-17C01 This part replaces 43529-17C00.

07130-1020B

$4.60

5

BOLT | FOR 43510-17C03,MODEL L This part replaces 43529-40C00.

09139-10004

$5.00

5

BOLT , 10X20 | FOR 43522-17C03,MODEL L This part replaces 43529-17C10.

09106-10050

$5.08

6

WASHER This part replaces 09164-10005.

09164-10010

$4.83

7

BOSS, FRONT FOOTREST

43530-17C01

Unavailable

8

PLATE, FRONT FOOTREST

43213-17C01

Unavailable

9

WASHER, FRONT FOOTREST

43214-17C01

Unavailable

10

SPRING This part replaces 09448-19020.

09448-18022

$3.79

11

SPACER, FRONT FOOTREST

09180-08149

$5.58

12

NUT, FIXED DRIVE FACE This part replaces 08310-22127.

09140-12039

$3.05

13

PIN This part replaces 04111-25158.

04111-2515A

$1.49

14

PIN

09200-08057

$2.36

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15A

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 43586-40C00.

43586-40C02

Unavailable

15A

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 43586-40C01.

43586-40C02

Unavailable

16

FOOTREST ASSY, PILLION RH | MODEL J/K

43600-17C11

Unavailable

16

FOOTREST ASSY, PILLION RH | MODEL L

43600-17D00

Unavailable

17

FOOTREST ASSY, PILLION LH | MODEL J/K

43700-17C11

Unavailable

17

FOOTREST ASSY, PILLION LH | MODEL L; Includes Item(s) 18 - 26

43700-17D00

Unavailable

18

FOOTREST ASSY, PILLION RH | MODEL J/K This part replaces 43810-17C11.

43600-17C11

Unavailable

18

BRACKET, PILLION FOOTREST RH | MODEL L

43810-17D00

Unavailable

19

FOOTREST ASSY, PILLION LH | MODEL J/K This part replaces 43820-17C11.

43700-17C11

Unavailable

19

BRACKET, PILLION FOOTREST LH | MODEL L

43821-17D00

Unavailable

20

BAR, RH

43611-32C00

$54.48

20

BAR, LH

43621-32C00

Unavailable

21

SPACER

09180-08149

$5.58

22

PIN This part replaces 09200-08035.

09200-08064

$6.13

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

25

CUSHION, HOLDER

43691-17C00

$6.38

26

ROLLER | MODEL J/K

09261-04010

Unavailable

26

ROLLER | MODEL L

43612-17D00

Unavailable

27

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

28

BOLT This part replaces 01517-08254.

01550-0825A

$2.32

29

BOLT This part replaces 01517-08304.

01550-0830A

$3.04
