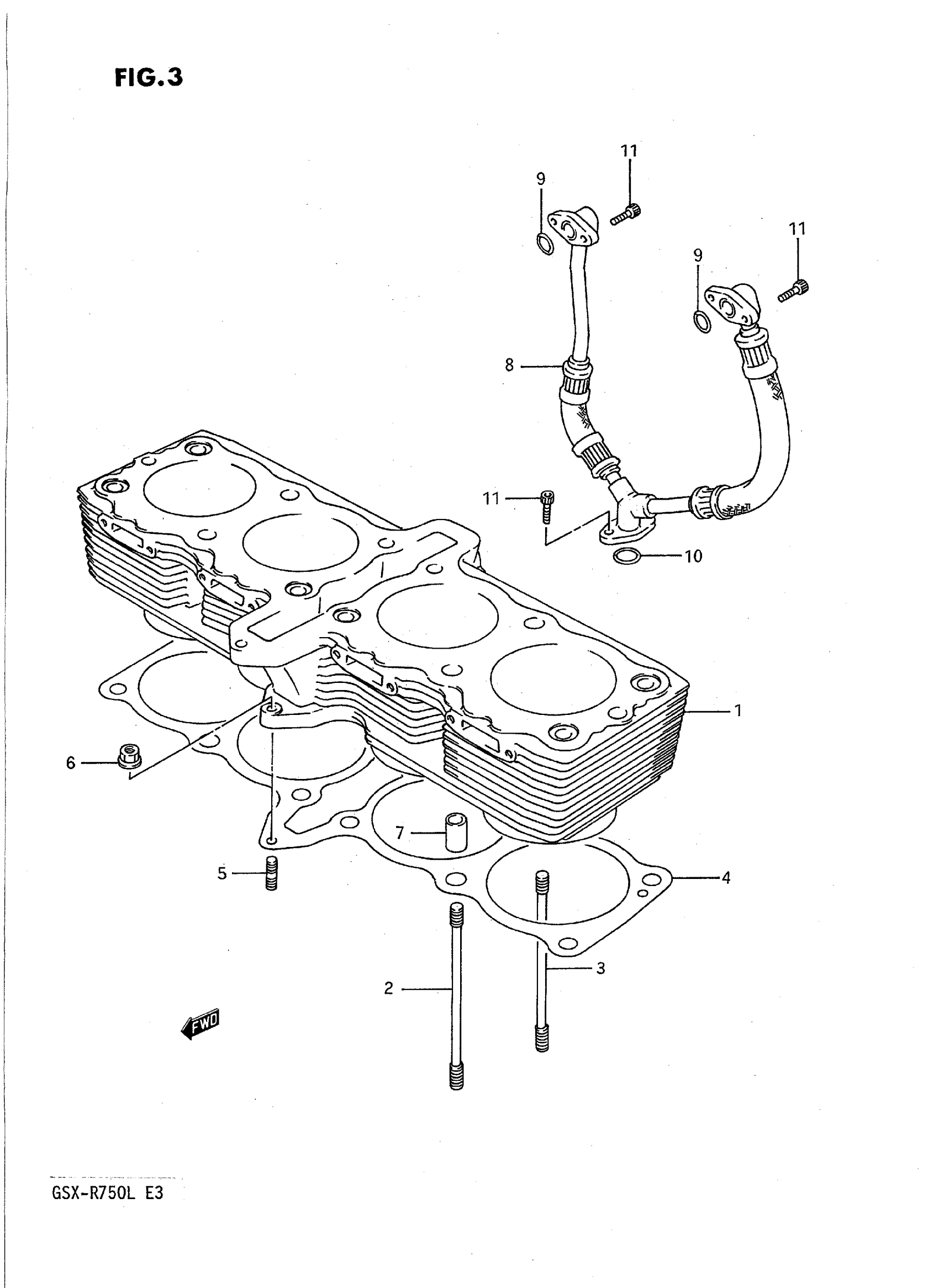

Suzuki GSX-R750L (1990) CYLINDER (MODEL J/K) Diagram

#

Description

Price

1

CYLINDER | OTHER THAN CALIFORNIA This part replaces 11210-17C04.

11210-20C00

Unavailable

1

CYLINDER | CALIFORNIA ONLY This part replaces 11210-17C14.

11210-20C10

Unavailable

2

STUD BOLT (L:144)

09108-10097

Unavailable

3

STUD BOLT (L:137)

09108-10096

Unavailable

4

GASKET, CYLINDER This part replaces 11241-27A02.

11241-27A04

$17.36

5

STUD BOLT This part replaces 01421-06205.

01421-0620A

$1.91

6

NUT This part replaces 08316-16064.

08316-1006B

$2.50

7

PIN This part replaces 09206-13006.

09206-13017

$7.61

8

HOSE, OIL HEAD COOLER This part replaces 11328-17C00.

11328-17C03

Unavailable

9

O RING

09280-14011

$4.77

10

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

11

BOLT This part replaces 07110-06165.

07130-0616B

$2.39
